B16NPN (NO/NC)

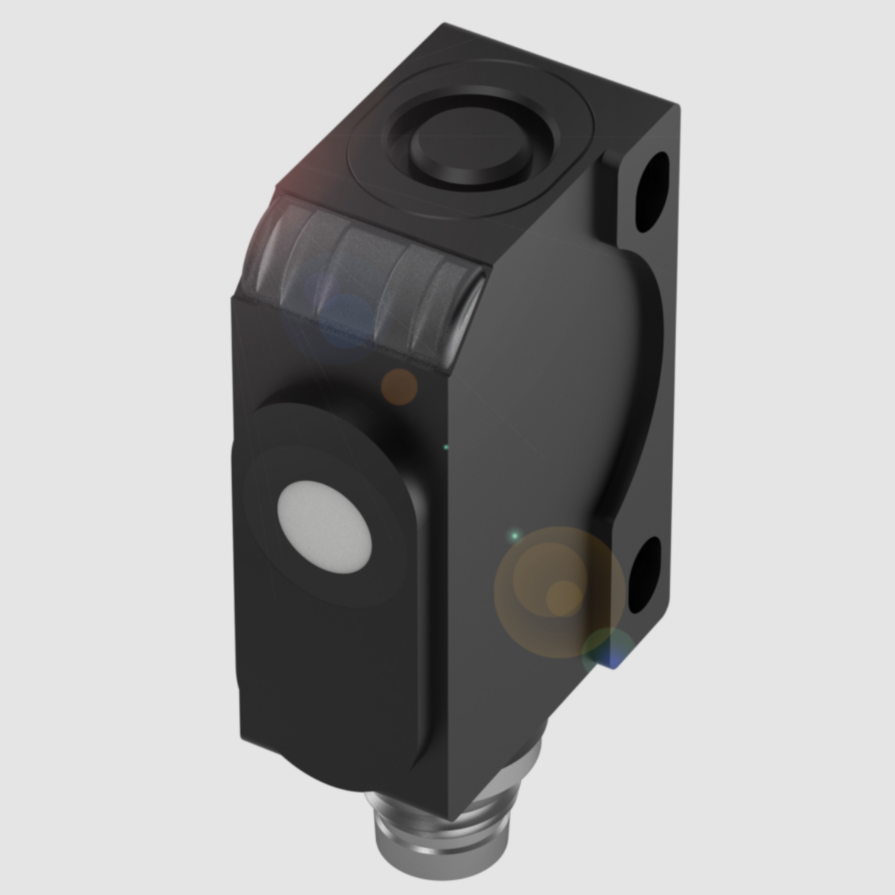

Balluff - NPN (NO/NC) - Ultrasonic Sensor BUS004H
Balluff - NPN (NO/NC) - Ultrasonic Sensor BUS004H
Regular price
$460.93 NZD
Regular price
Sale price
$460.93 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Ultrasonic Sensor With A Digital Output
NPN (NO/NC) M8 4pin Sn: 20-250mm
Compatible Part Numbers:
BUS004H
Typecode / BUS R06K1-NPX-02/015-S75G-F01
PF 252742
UB250-F77-E0-V31
Technical Data Of: BUS004H
| Switching output |
NPN normally open/normally closed (NO/NC)
|
| Connection |
Connector, M8x1-Male, 4-pin
|
| Housing material | ABS |
| Material sensing surface |
PU foam/Epoxy resin/Glass
|
| Range | 20...250 mm |
| Switching frequency | 50 Hz |
| Approval/Conformity | CE |
| WEEE | |
| UKCA | |
| Ambient temperature | -25...70 °C |
| IP rating | IP67 |
| Repeat accuracy | ± 0.15 %FS |
| Operating voltage Ub | 20...30 VDC |
Technical Data Sheet:
2 in stock
