B06PNP (NO)
BOS0216 - Diffuse Sensor
BOS0216 - Diffuse Sensor
Regular price
$256.33 NZD
Regular price
Sale price
$256.33 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor With Background Supression
R020K PNP (NO) Triangulation Sn:60mm 2m Cable.
Compatible Part Numbers:
BOS0216
Typecode / BOS R020K-PS-RF12-02
Technical Data Of: BOS0216
| Series | R020K |
| Dimension | 7.7 x 26.8 x 13.5 mm |

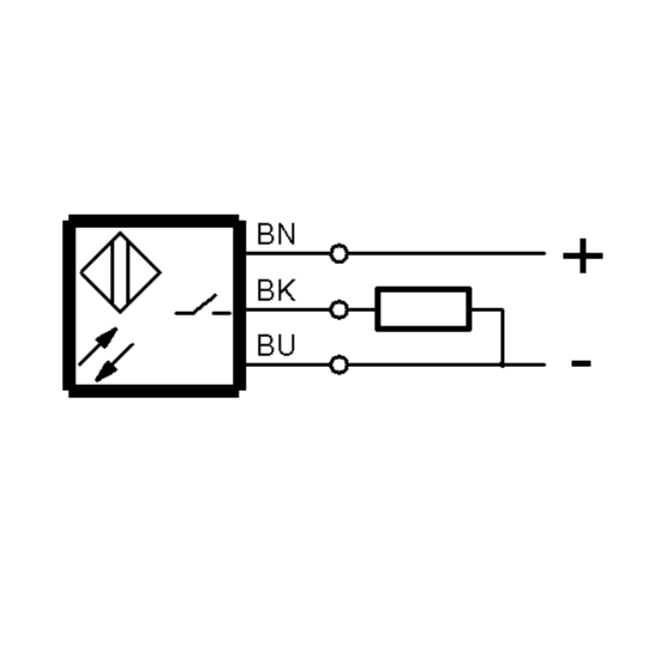

| Interface | PNP normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, HGA fixed |
| Special optical feature | Background suppression |
| Light type | LED, red light |
| Light spot size | Ø 4.5 mm at 40 mm |
| Range | 1...60 mm |
| Connection | Cable, 2.00 m, PVC |
| Housing material | ABS |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE |
| cULus | |
| WEEE |
Technical Data Sheet:
2 in stock
