B06PNP (NO)
BOS0217 - Diffuse Sensor
BOS0217 - Diffuse Sensor
Regular price
$256.33 NZD
Regular price
Sale price
$256.33 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor With Background Suppression
R020K PNP (NO) Triangulation Sn:60mm M8 3pin.
Compatible Part Numbers:
BOS0217
Typecode / BOS R020K-PS-RF12-00,2-S49
Technical Data Of: BOS0217
| Series | R020K |
| Dimension | 7.7 x 26.8 x 13.5 mm |
| Interface | PNP normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, HGA fixed |
| Special optical feature | Background suppression |
| Beam characteristic | Focus, typical at 15 mm |
| Light type | LED, red light |
| Light spot size | Ø 4.5 mm at 40 mm |
| Range | 1...60 mm |
| Connection |

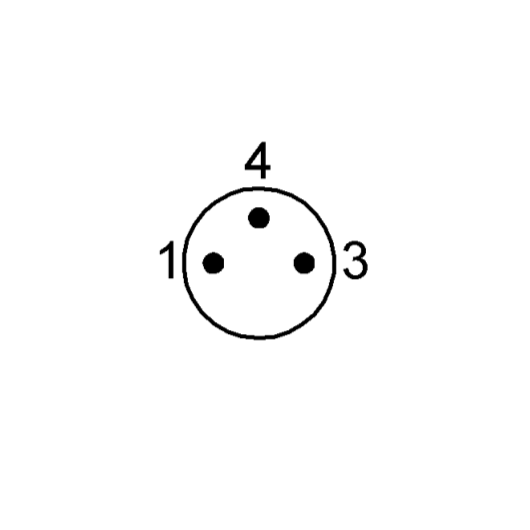

Cable with connector, M8x1-Male, 3-pin, 0.20 m, PVC
|
| Housing material | ABS |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE |
| cULus | |
| WEEE |
Technical Data Sheet:
1 in stock
