B07NPN (NO)
BOS0229 - Diffuse Sensor
BOS0229 - Diffuse Sensor
Regular price
$324.52 NZD
Regular price
Sale price
$324.52 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor With Background Suppression
R020K NPN (NO) Triangulation Sn:150mm Adj 2m Cable.
Compatible Part Numbers:
BOS0229
Typecode / BOS R020K-NS-RH12-02
Technical Data Of: BOS0229
Series | R020K |
Dimension | 7.7 x 32.5 x 13.5 mm |

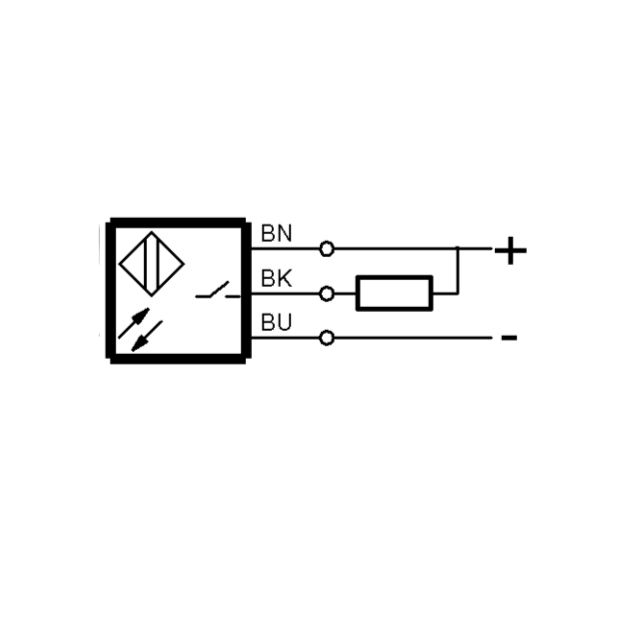

Interface | NPN normally open (NO) |
Principle of operation | Photoelectric sensor |
Principle of optical operation | Diffuse sensor, triangulation |
Special optical feature | Background suppression |
Beam characteristic | Focus, typical at 15 mm |
Light type | LED, red light |
Light spot size | Ø 4.4 mm at 80 mm |
Range | 1...150 mm |
Connection | Cable, 2.00 m, PVC |
Housing material | ABS |
Material sensing surface | PMMA |
Operating voltage Ub | 10...30 VDC |
Approval/Conformity | CE |
cULus | |
WEEE |
Technical Data Sheet:
2 in stock
