B7NPN (NO)
Balluff - Diffuse Sensor BOS0117 Discontinued
Balluff - Diffuse Sensor BOS0117 Discontinued
Regular price
$178.76 NZD
Regular price
Sale price
$178.76 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor
5K NPN (NO) Sn:900mm Adj M8 4pin.
Compatible Part Numbers:
BOS0117 - Discontinued
Typecode / BOS 5K-NS-ID10-S75
BOS02AA - Successor
Typecode / BOS R090K-NU-ID11-S75
Technical Data OF BOS0117:
| Series | 5K |
| Dimension | 10.8 x 43.5 x 19.5 mm |
| Interface | NPN normally open (NO) |
| Principle of operation | Photoelectric sensor |
| Principle of optical operation | Diffuse sensor, energetic |
| Beam characteristic | Divergent |
| Light type | Infrared |
| Range | 0...900 mm |

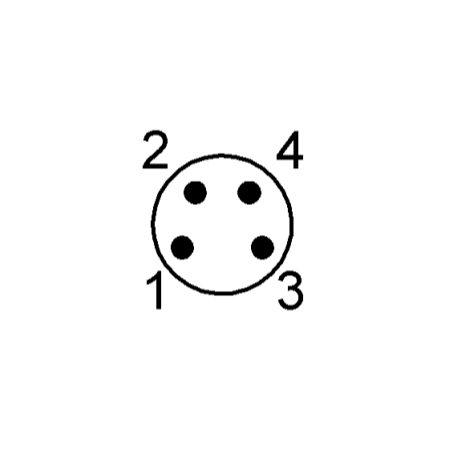

| Connection | Connector, M8x1-Male, 4-pin |
| Housing material | PC |
| PBT | |
| Material sensing surface | PMMA |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | cULus |
| CE | |
| WEEE | |
| UKCA | |
| Trademark | Global |
Technical Data Sheet:
Out of stock
