B7NPN (NO/NC)
Balluff - M18 NPN (NO/NC) - Diffuse Sensor BOS01EC
Balluff - M18 NPN (NO/NC) - Diffuse Sensor BOS01EC
Regular price
$194.64 NZD
Regular price
Sale price
$194.64 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Diffuse Sensor
M18 NPN (NO/NC) M12 4pin Sn: 300mm
Compatible Part Numbers:
BOS01EC
Typecode / BOS 18M-NA-RD21-S4
Technical Data Of: BOS01EC
| Series | 18M |
| Dimension | Ø 18 x 75 mm |
| Interface |
NPN normally open (NO)
|
|
NPN normally closed (NC)
|
|
| Principle of operation |
Photoelectric sensor
|
| Principle of optical operation |
Diffuse sensor, energetic
|
| Beam characteristic | Divergent |
| Light type | LED, red light |
| Light spot size |
Ø 25 mm at 300 mm
|
| Range | 0...300 mm |
| Connection |

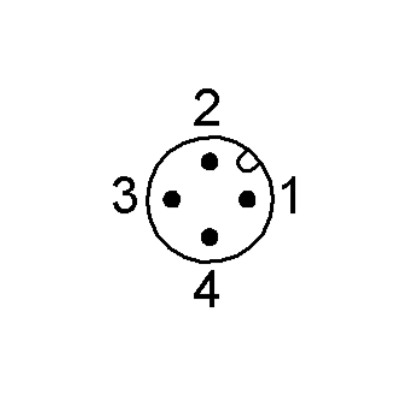

Connector, M12x1-Male, 4-pin
|
| Housing material |
Brass, nickel-plated
|
| Material sensing surface | Glass, anti-glare |
| Operating voltage Ub | 10...30 VDC |
| Approval/Conformity | CE |
| UKCA | UKCA |
| cULus | cULus |
| WEEE | WEEE |
| Scope of delivery | 2x nut M18x1 |
| User manual |
Technical Data Sheet:
Out of stock
