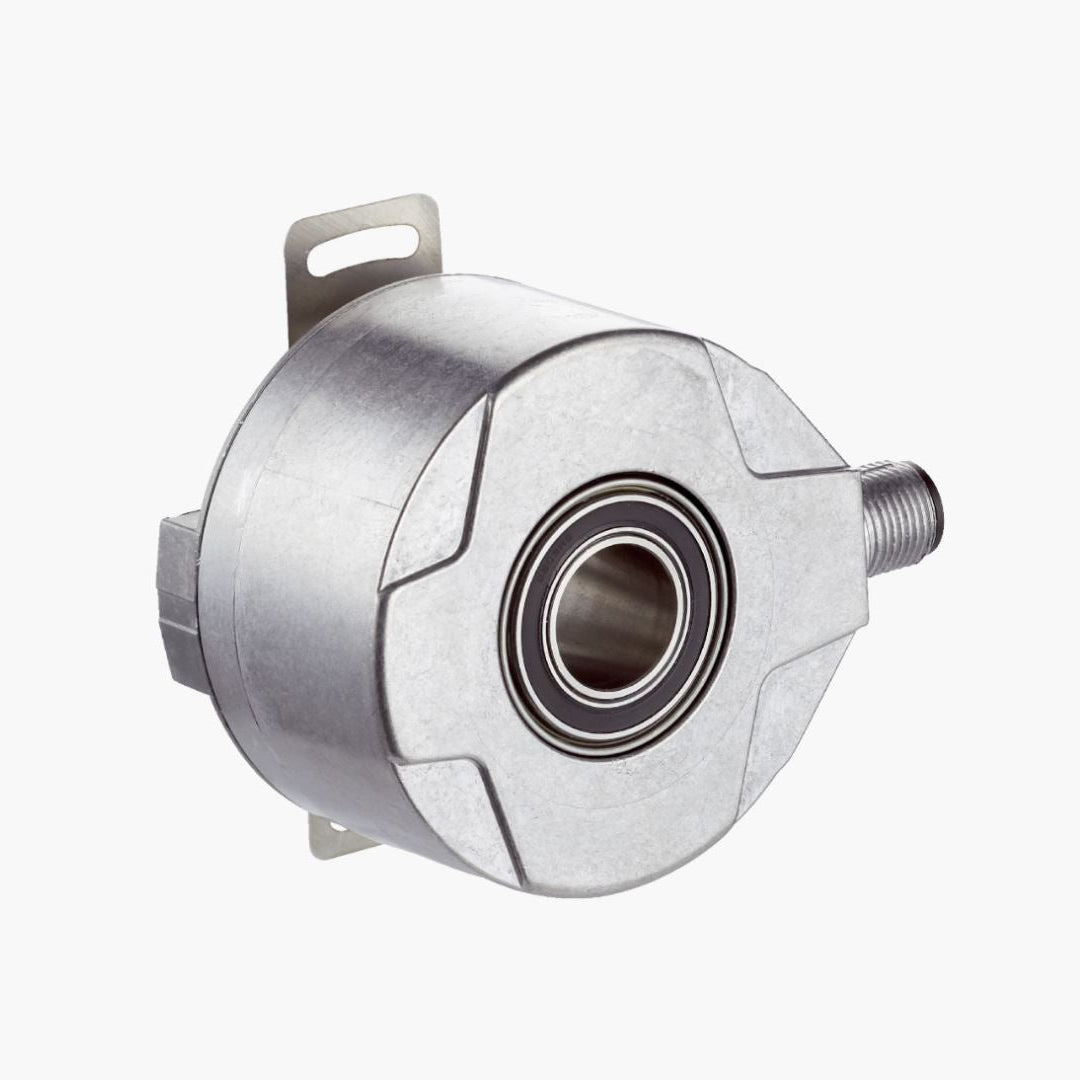

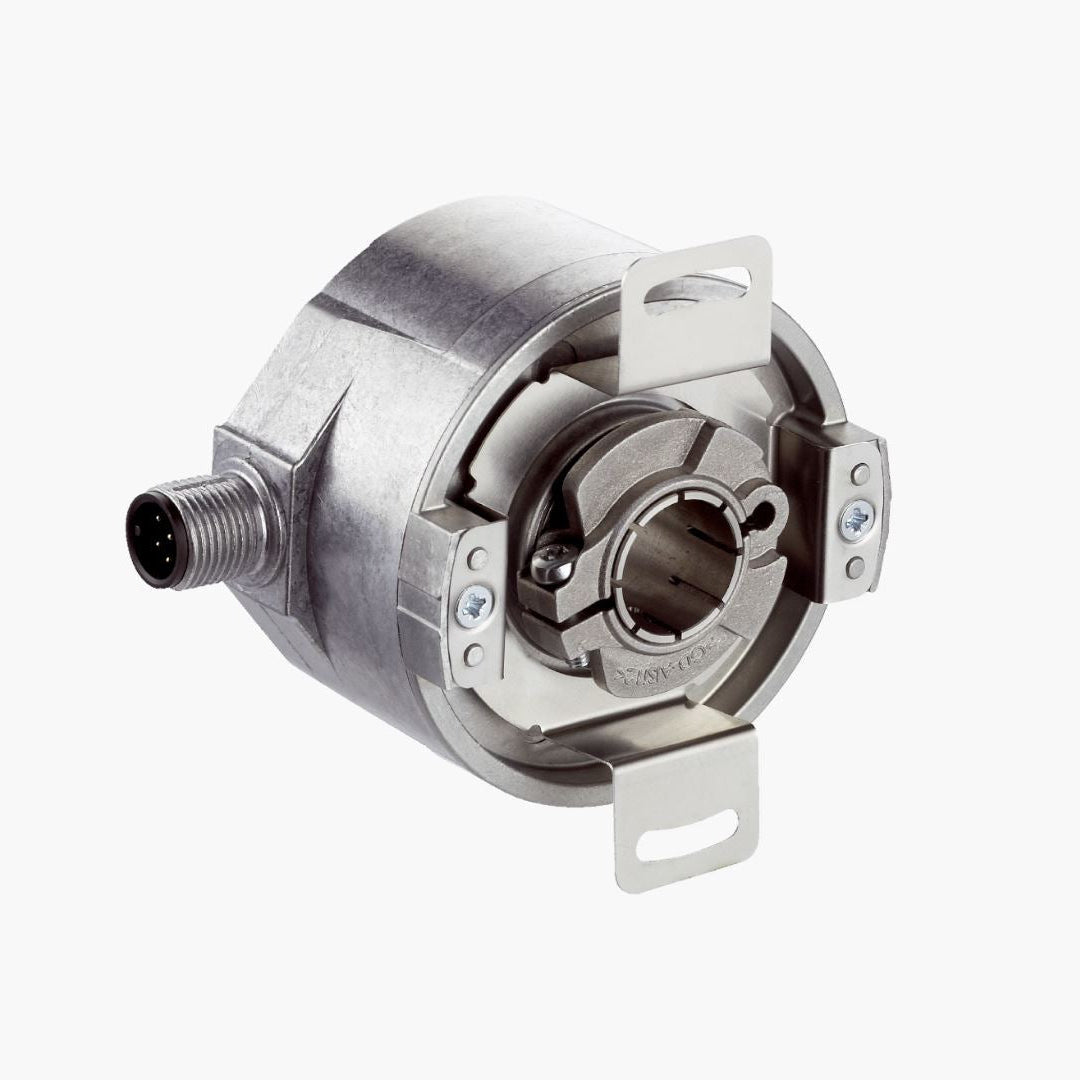

SICK DFS60B-THPC10000 - Incremental Encoder

Incremental Encoder

We can preprogram these before dispatch. Please let us know the pulse rate and output type you would like these set to, if you would like this service. By default, we usually have these set to 5000 pulse HTL.

Typically Bought With: SICK SPZ-010-AD-A - Collets Shaft Adaption

Electrical Data:

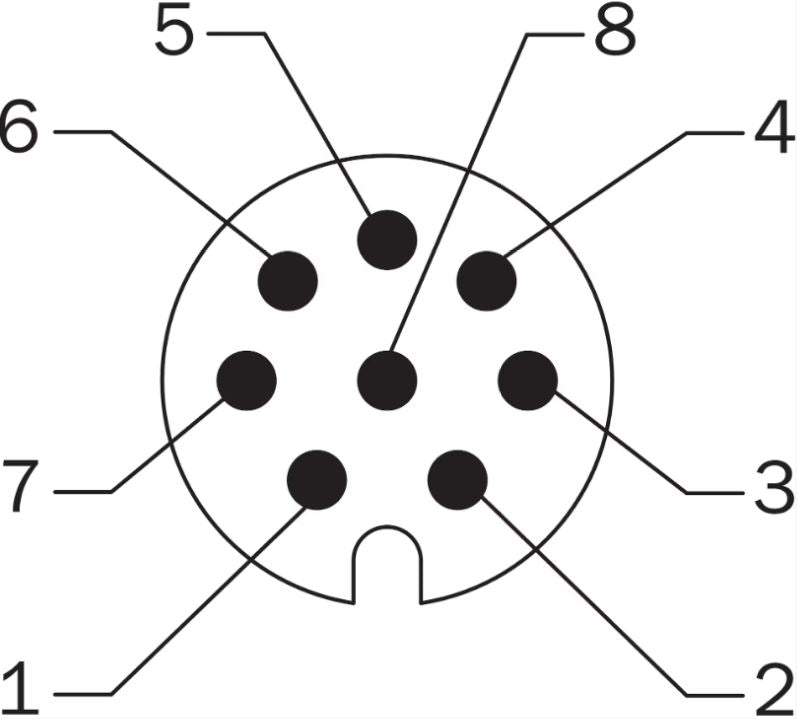

• Connection type: Male connector, M12, 8-pin, radial
• Supply voltage: 4.5 ... 32 V
• Reference signal, number: 1
• Reference signal, position: 90°, electric, logically gated with A and B
• Reverse polarity protection: ✔
• Short-circuit protection of the outputs: ✔
• MTTFd: mean time to dangerous failure: 300 years (EN ISO 13849-1)

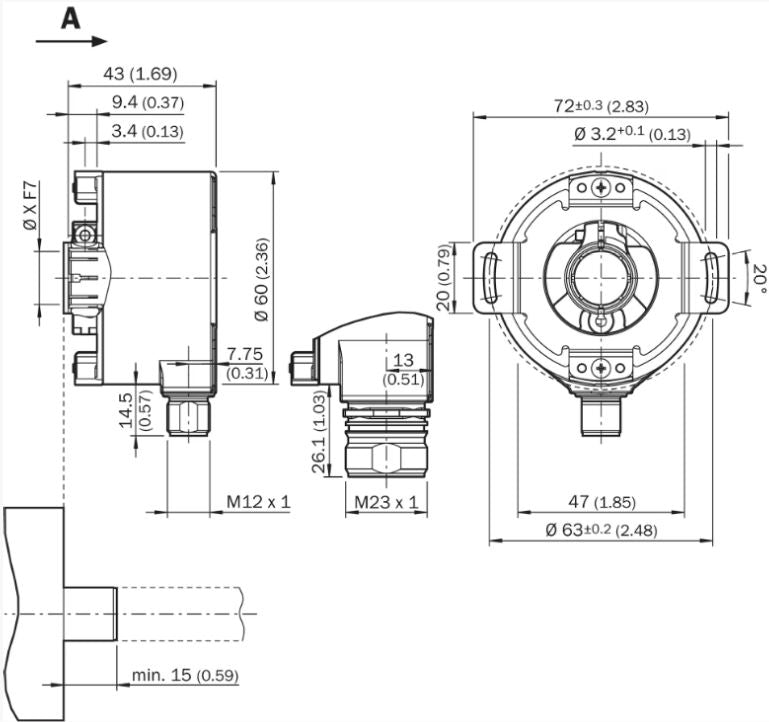

Mechanical Data:

• Mechanical design: Solid shaft, face mount flange
• Shaft diameter: 10 mm
• Shaft length: 19 mm
• Weight: +0.3 kg
• Shaft material: Stainless steel
• Flange material: Aluminum
• Housing material: Aluminum die cast
• Start up torque: 0.5 Ncm (+20 °C)
• Operating torque: 0.3 Ncm (+20 °C)
• Permissible shaft loading:
  • 80 N (radial)
  • 40 N (axial)
• Operating speed: ≤ 9,000 min⁻¹
• Moment of inertia of the rotor: 6.2 gcm²
• Bearing lifetime: 3.6 × 10¹⁰ revolutions
• Angular acceleration: ≤ 500,000 rad/s²

Compatible Part Numbers:

DFS60B-THPC10000

1036919
