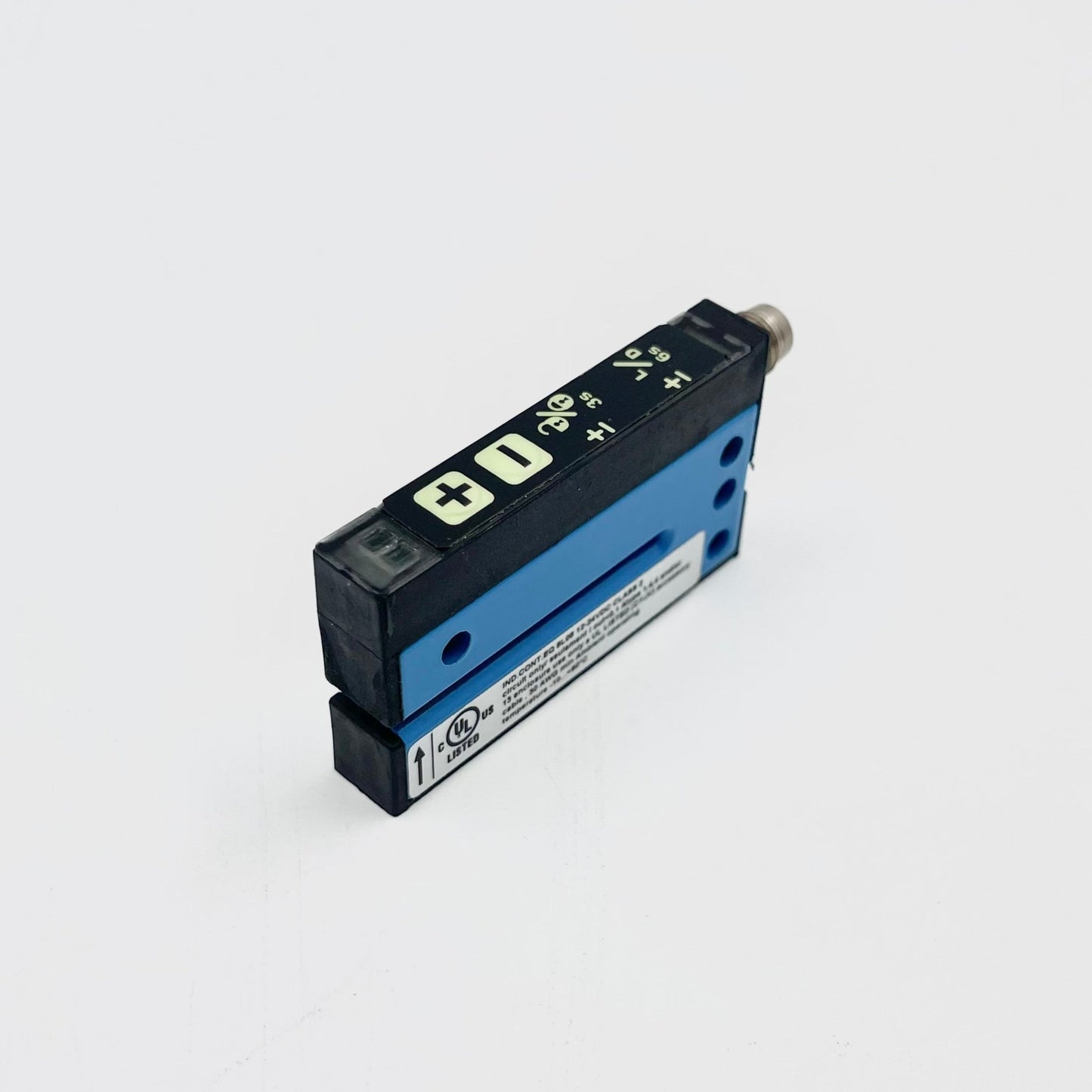

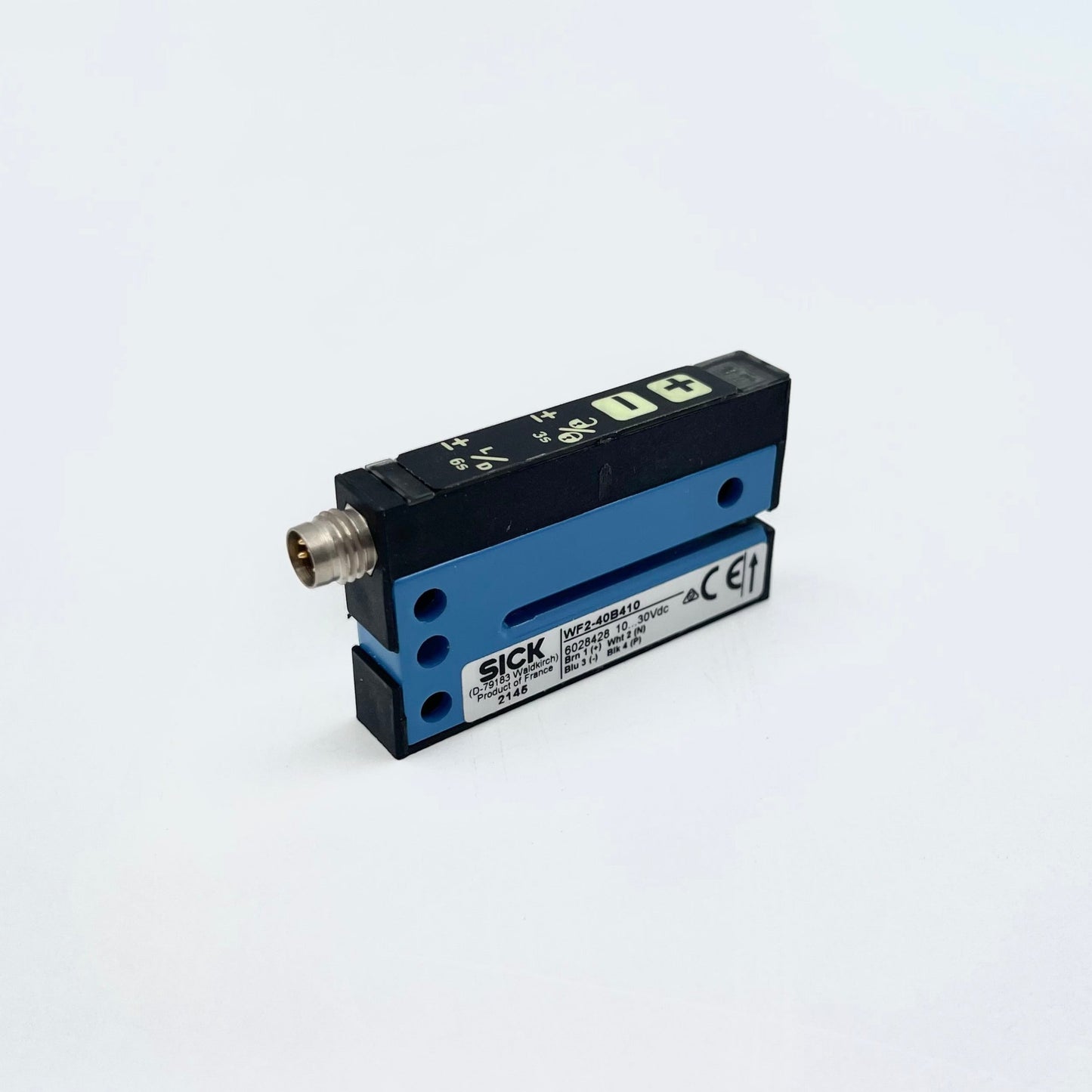

SICK WF2-40B410 - Fork Sensor

Fork Sensor

Fork width 2 mm, Fork depth 42 mm, Minimum detectable object (MDO) 0.2 mm. Connector: M8 4pin.

Detailed Technical Data:

• Functional Principle: Optical detection
• Dimensions: 10 mm (W) x 32 mm (H) x 57 mm (D)
• Housing Design: Fork shaped
• Fork Width: 2 mm
• Fork Depth: 42 mm
• Minimum Detectable Object (MDO): 0.2 mm

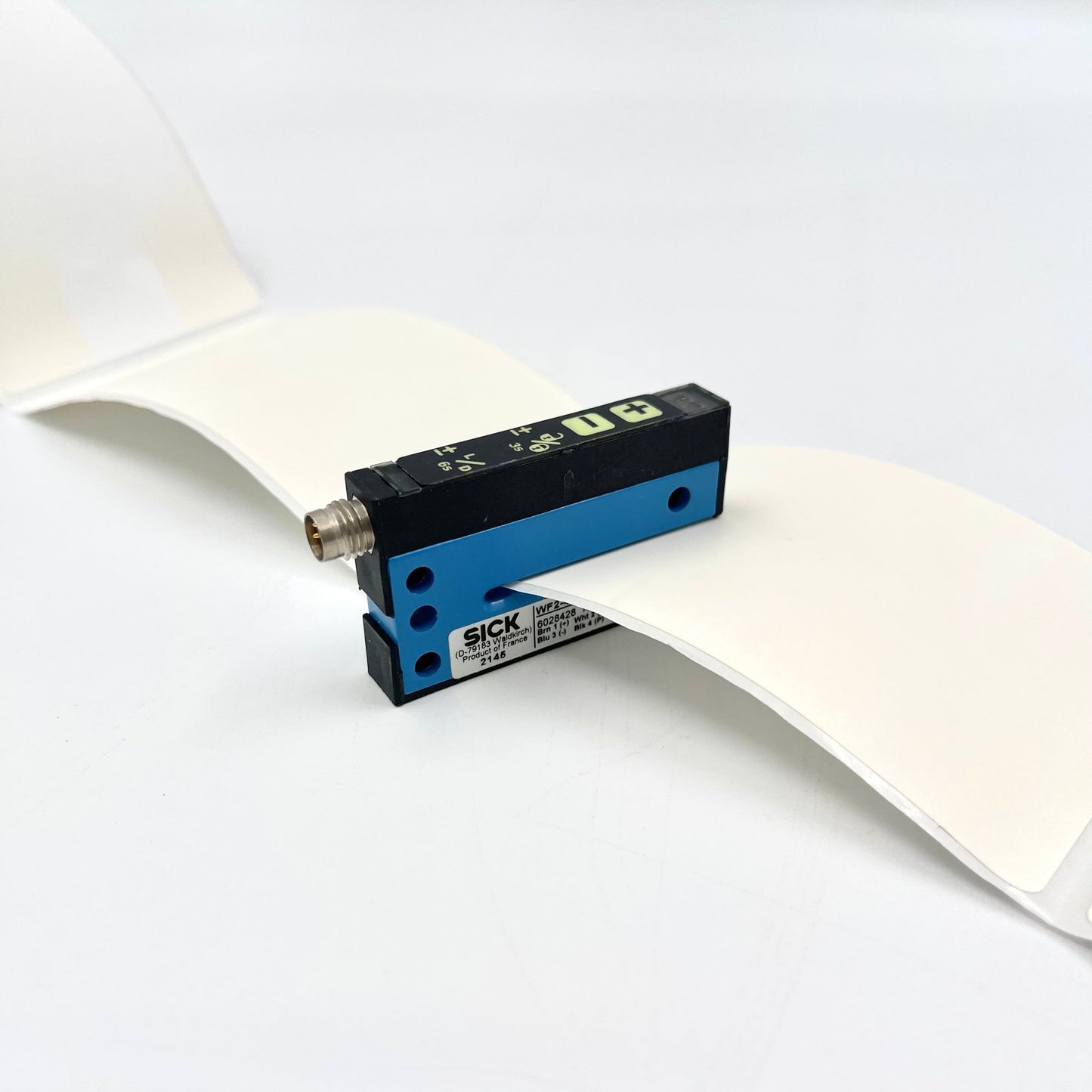

• Label Detection: Available
• Light Source: LED, Infrared
• Wavelength: 850 nm

Features:

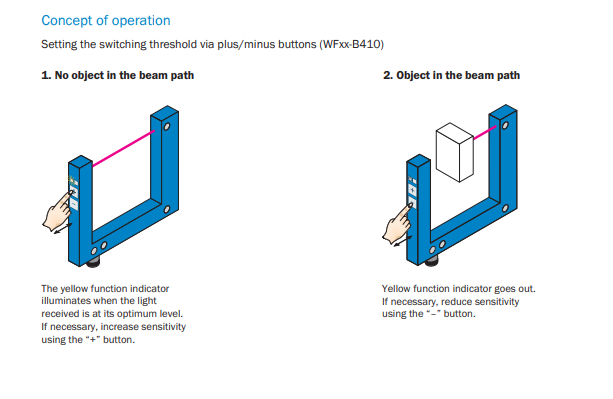

• Adjustment: Plus/minus button (Sensitivity, light/dark switching, key lock)
• Teach-in Mode: Not available
• Output Function: Light/dark switching (selectable via button)

Mechanics/Electronics:

• Supply Voltage: 10 V DC to 30 V DC^1
• Ripple: < 10%^2
• Current Consumption: 40 mA
• Switching Frequency: 10 kHz^3
• Response Time: 100 µs
• Stability of Response Time: ± 20 µs
• Jitter: 40 µs
• Switching Output: PNP/NPN

^1 Contact for conditions ^2 As per supply voltage ^3 Maximum value

Compatible Part Numbers:

6028428

WF2-40B410

Technical Data Sheet:
