A18PNP and NPN

SICK WFS3-40N415 - Fork Sensor

SICK WFS3-40N415 - Fork Sensor

Regular price $264.42 NZD
Regular price $277.25 NZD Sale price $264.42 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Fork Sensor

Fork width 3 mm Fork depth 42 mm Minimum detectable object (MDO) Gap between Labels / Size of labels: 2 mm 1)

Product Specifications:

  • Functional Principle: Optical detection
  • Dimensions: 10 mm (W) x 25 mm (H) x 64.3 mm (D)
  • Housing Design: Fork-shaped
  • Fork Width: 3 mm
  • Fork Depth: 42 mm
  • Minimum Detectable Object (MDO): Gap between Labels / Size of labels: 2 mm^1
  • Label Detection: Yes
  • Light Source: LED, infrared

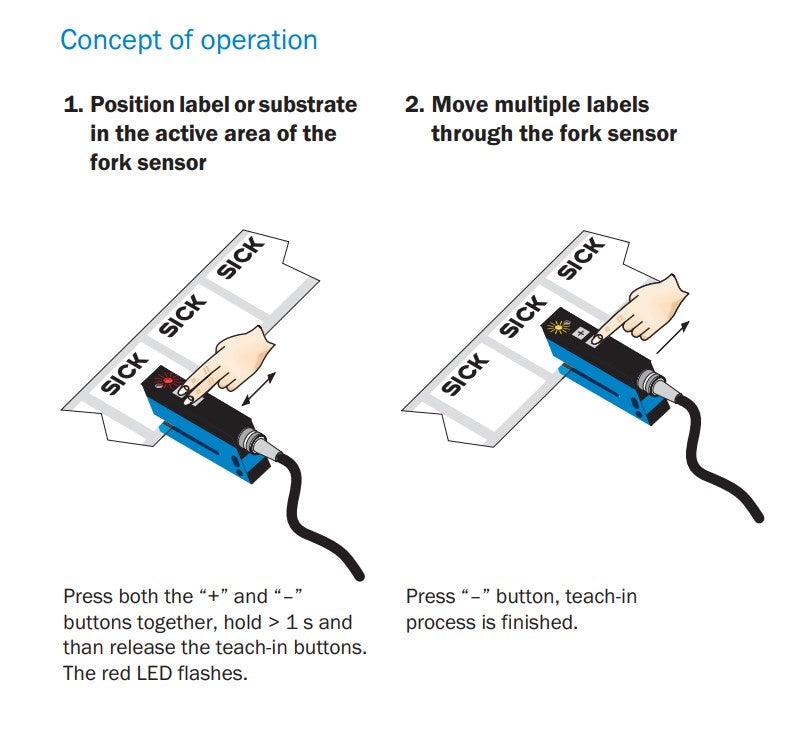

  • Adjustment: Plus/minus button (Teach-in, sensitivity, light/dark switching), Cable (Teach-in dynamic)
  • Teach-in Mode: 2-point teach-in, Dynamic

Mechanics/Electronics:

  • Supply Voltage: 10 V DC to 30 V DC^1
  • Ripple: < 10%^2
  • Current Consumption: 20 mA^3
  • Switching Frequency: 10 kHz^4
  • Response Time: 50 µs^5
  • Stability of Response Time: ± 20 µs
  • Jitter: 40 µs
^1 Depends on the label thickness. ^2 Contact for conditions. ^3 As per supply voltage. ^4 Maximum value. ^5 May vary depending on operating conditions.











Compatible Part Numbers :

6043920

WFS3-40N415-2121

Technical Data Sheet
