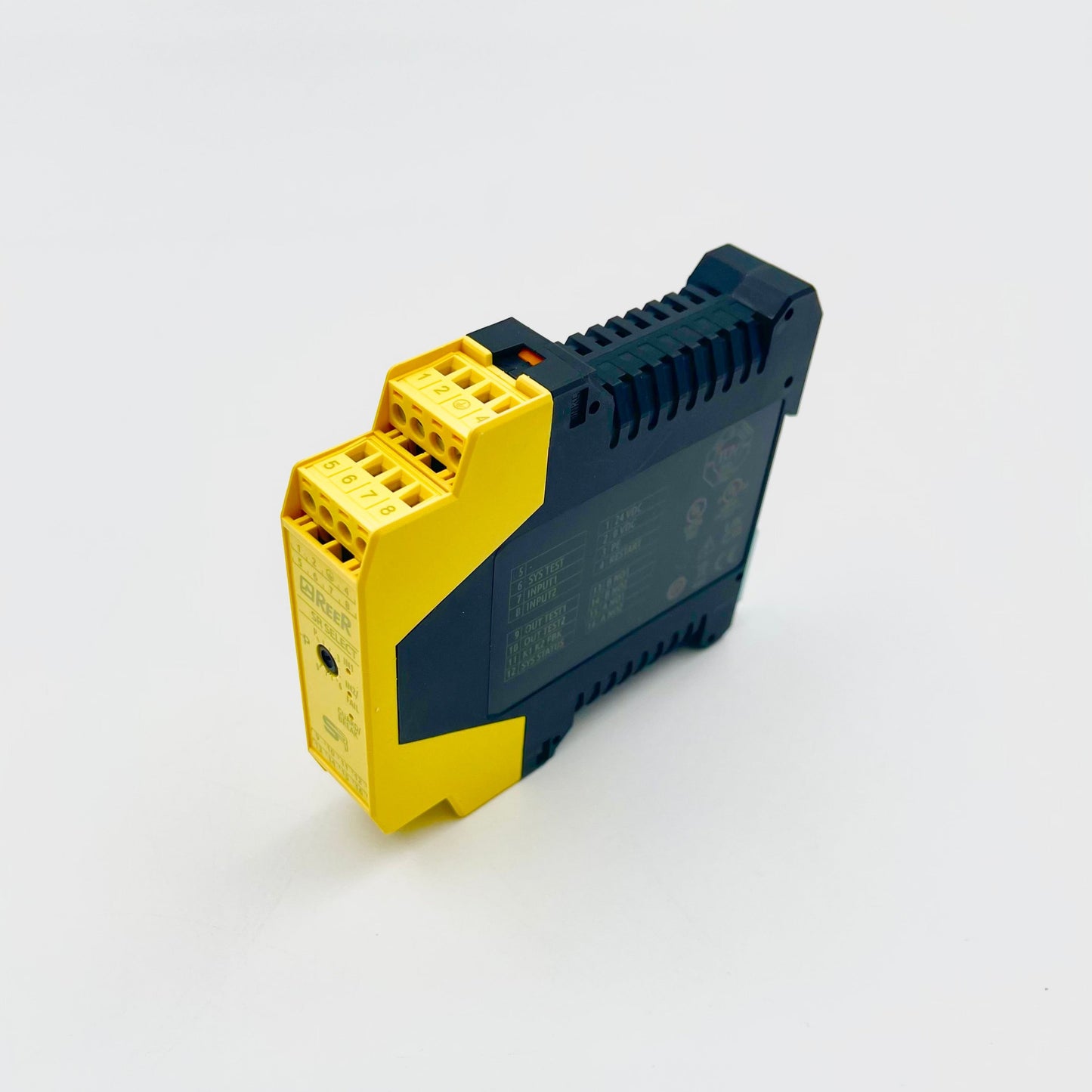

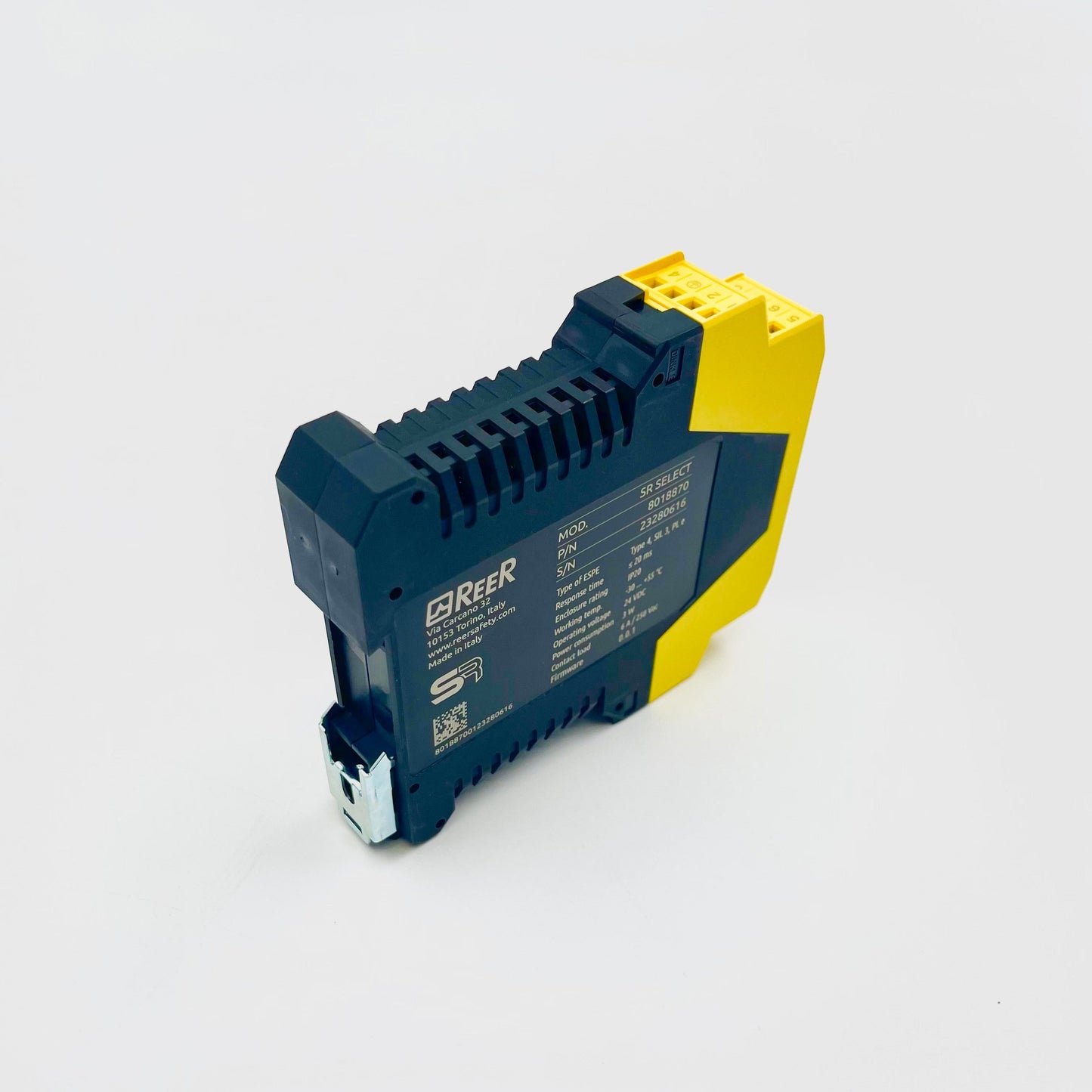

ReeR 1330941 SR Select - Saftey Devices
ReeR 1330941 SR Select - Saftey Devices
Regular price
$383.00 NZD
Regular price
Sale price
$383.00 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
SR Select
Allows four different operating modes offering the possibility to connect and control different types of safety devices including: Safety Light Curtains, Solid-State-Output Devices (i.e. RFID safety switches), Dual-Channel Emergency Stops, Two-Hand Controls and Type 2 Safety Photocells.
Compatible Part Numbers:
1330941
Details: SR Select -1330941
| Safety level | PL e |
| Safety level (SIL / PL) | SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating temperature (°C) | - 30 ... 55 |
| Response time (ms) | ≤ 20 |
| Signalling | LEDs indication for input, outputs status and diagnostics |
| Connections | Removable terminal blocks, screw contacts |
| MTTFD (ISO13849) years | 94 (B10d 800.000) |
| Safety devices to be connected | Safety Light Curtains, Solid-State-Output Devices (i.e. RFID safety switches), Emergency Stops, Two-Hand Controls and Type 2 Safety Photocells |
| Start/Restart | Automatic/Manual selctable through rotative selector |
| Safety relay outputs | 2 NO (6A at 250 VAC) |
| Programmability | 4 operative mode selectable through rotative selector |
| Product class | C |
Electrical Data:
| Power supply (VDC) | 24 ± 20% |
Mechanical Data:
| Dimensions HxWxD (mm) | 99 x 22,5 x 114,5 |
| Degree of protection | IP20 for housing - IP2X for terminal block |
| Fastening | 35 mm DIN rail fastening according to EN 50022-35 standard |
Quick Instalation Guide:
Instalation Use And Matinence:
