ST-INLINE3WAYB - Connector

ST-INLINE3WAYB - Connector

Important Safety Notice
This inline connector is not compliant for use on mains voltage (above Extra Low Voltage) unless it is permanently secured such as by gluing or screwing when used outside of an approved electrical enclosure. The connector can be manually undone without tools, and therefore does not meet the requirements for a tool-operated or secured connection under AS/NZS 3000 unless fixed in place.

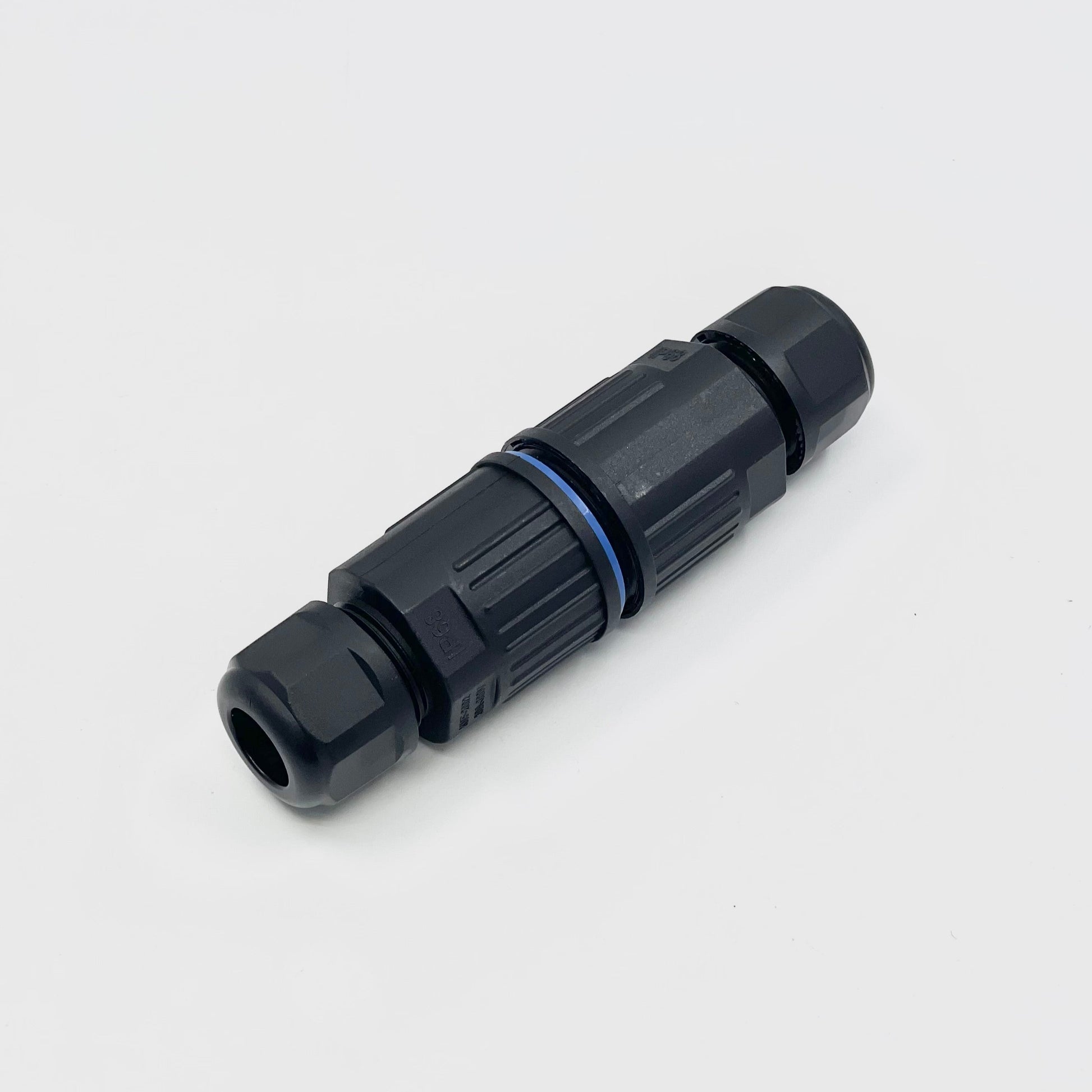

This 3-way plug wire connector includes rubber rings and can accommodate cables 0.08–4 mm wide.

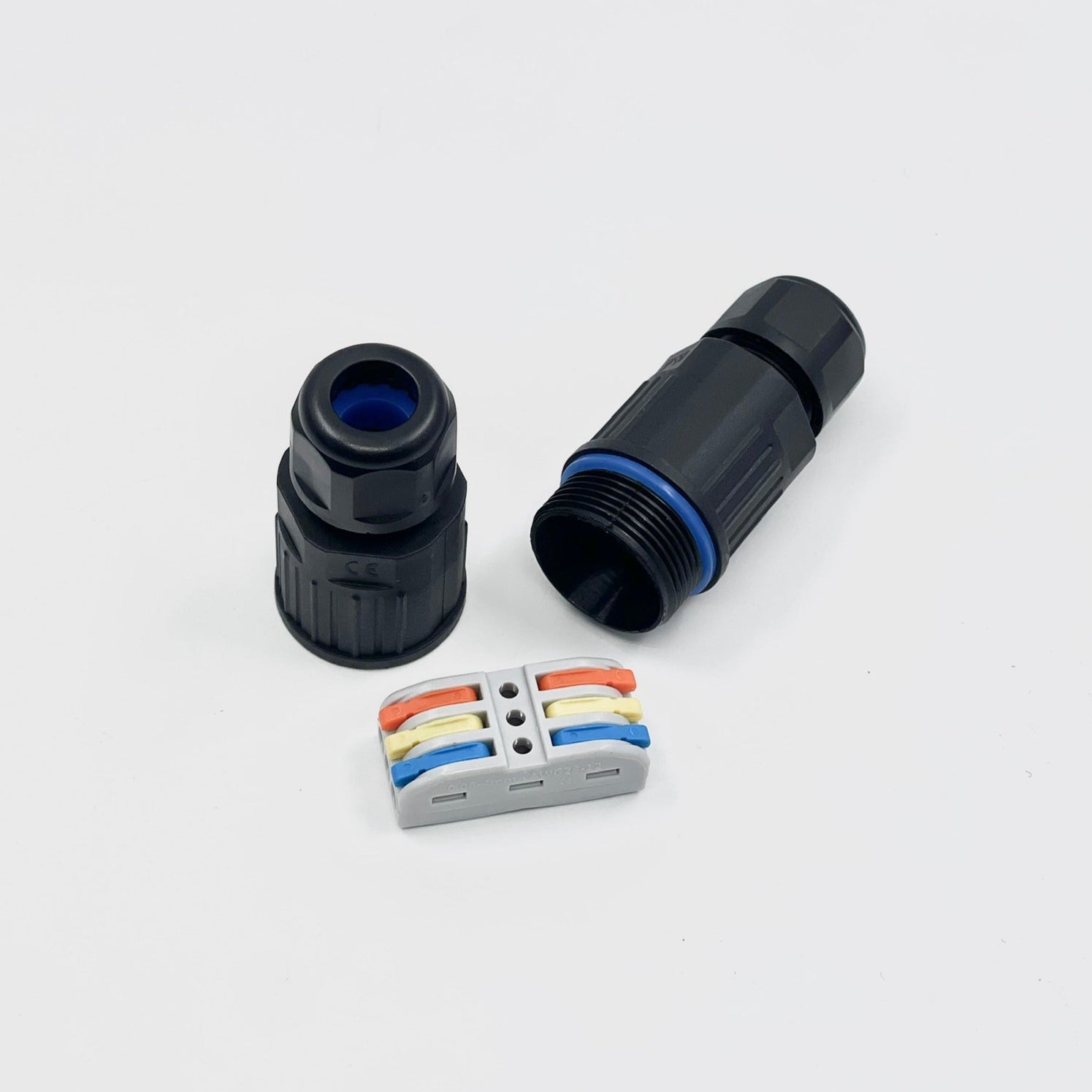

3-pin lever wire connectors strip the wire insulation in accordance with 0.39 inch/10 mm: straighten the stripped wire, push the lever up to 90 degrees, plug the wire into the bottom of the hole, then push the lever down wiring completed.

Small in size, light in weight, and reasonably designed, it can be installed anywhere with just a screwdriver. After completion, please confirm again whether the screw has been tightened and the cable is completely sealed.

3-pin wire connectors are suitable for connecting garden and outdoor billboard displays, tunnel lights, road landscape lights, underwater lights, street lights, etc. It is a safe DIY tool and can be used to repair and extend power cables.

Easy to install: unscrew the ends of the waterproof connector, insert wire through directly, secure the cable in the right hole, and tighten it.

These inline connectors are ideal for extra low voltage (ELV) automation sensor connections, especially where three-pin configurations are common. Their sealed, screw-together design ensures a professional finish while allowing for quick changes or replacements in the field.

They’re also perfect for housing small optocoupler circuits, making them a great choice for isolating control signals in compact applications.

Best of all, these connectors are the perfect “get out of jail” card to keep in your toolbox. Whenever we come across taped-up automation sensor joints, we replace them on the spot with these connectors for a cleaner, safer, and more serviceable install.

Compatible Part Numbers:

ST-INLINE3WAYB
