ST Relay Base PF113A-E - 11 Pin Relay Socket
ST Relay Base PF113A-E - 11 Pin Relay Socket
Price (exc. GST) each
Couldn't load pickup availability

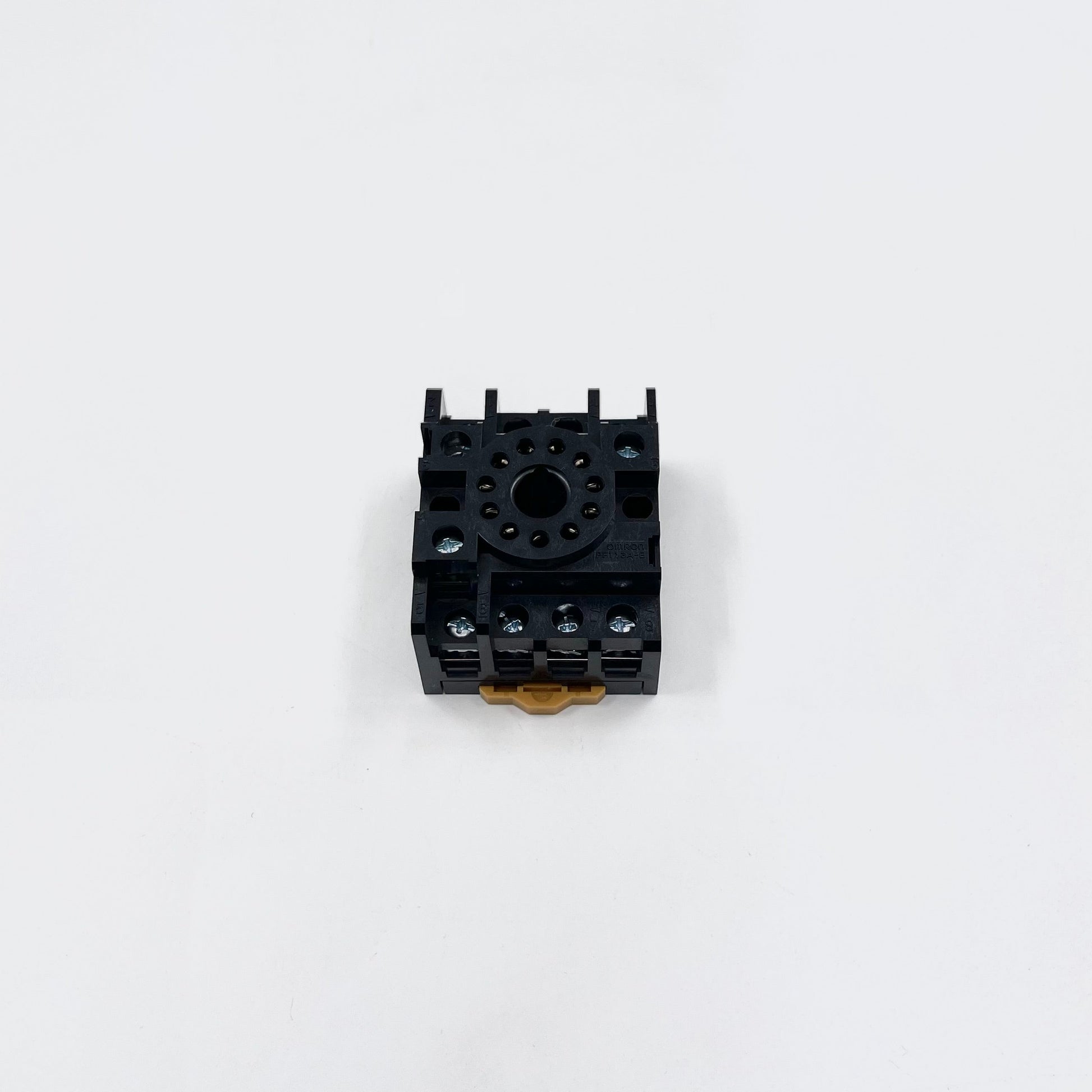

ST Relay Base PF113A-E
The PF113A‑E (BASE) is a robust and space-efficient relay socket designed for industrial and commercial control systems. Engineered to support 11-pin relays from Omron’s MKS and MK series, this socket ensures reliable mounting and optimal electrical connections for multi-pole relay applications. Ideal for DIN-rail or panel installations, its compact design and sturdy build ensure long-term durability in demanding environments.
Part of the PF series, the PF113A‑E is commonly used in control panels, automation systems, and industrial machinery. Known for easy installation, secure wire connections, and high insulation performance, the PF series offers dependable relay connectivity where reliability matters most.
| Specification | Details |
|---|---|
| Applicable Product Family | Omron MK / MKS relays (3PDT multi-pole) |
| Mounting Method | DIN rail or screw (surface) |
| Terminal Type | M3.5 screw terminals with captive clamps |
| Number of Pins | 11 pins |
| Rated Carry Current | 10 A at 250 VAC |
| Dielectric Strength | 1,500 VAC between adjacent terminals |
| Dimensions (W×H×D) | 42.8 × 52 × 31 mm |
| Color | Black |
| Applicable Ferrules | Forked terminals (suitable for up to 2 × 12 AWG wire) |
| Weight | Approximately 85 g |
Compatible Part Numbers:
ST Relay Base PF113A-E
PF113A-E
Omron
Technical Datasheet:
1 in stock
