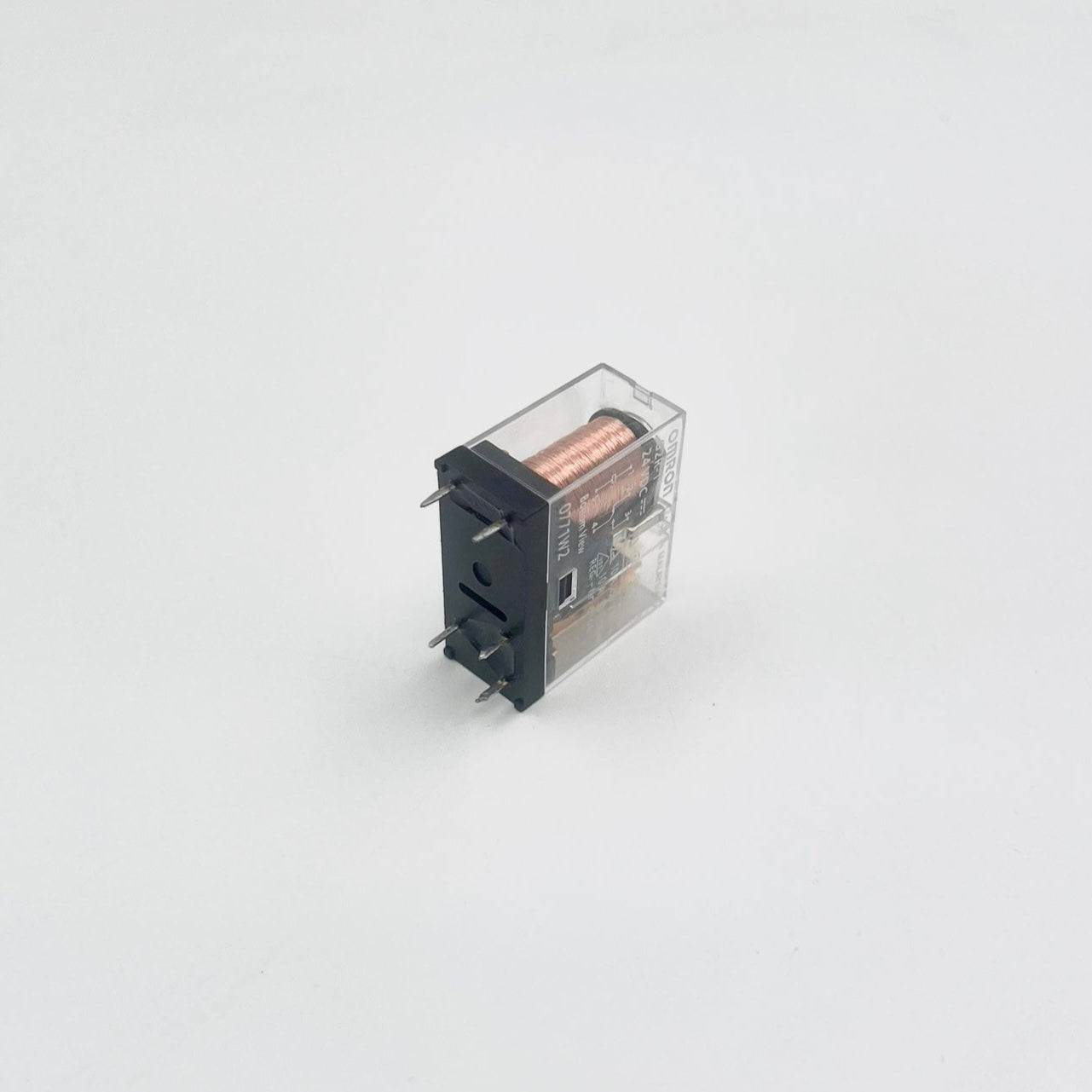

ST Relay G2R-1 24V
The G2R-1 24VDC from Omron’s G2R Series is a standard single-pole, general-purpose relay suitable for a wide range of switching applications. Designed for PCB mounting, this non-latching SPDT relay offers dependable 10A switching capacity and silver cadmium oxide contacts. With a 24 VDC coil and through-hole mounting, it provides reliable performance for industrial, control, and automation systems.
Specifications:
| Feature | Specification |
|---|---|
| Manufacturer | Omron Electronics |
| Series | G2R |
| Product Type | Power Relay – Standard |
| Coil Voltage | 24 V DC |
| Coil Resistance | 1.1 kΩ |
| Coil Current | 21.8 mA |
| Power Consumption | 530 mW |
| Relay Contact Form | SPDT (1 Form C – NO/NC) |
| Contact Current Rating | 10 A |
| Switching Voltage | 380 VAC / 125 VDC |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Coil Type | Non-Latching |
| Contact Termination | Solder Pin |
| Coil Termination | Solder Pin |
| Mounting Style | Through Hole |
| Dimensions (L x W x H) | 29 x 12.7 x 25.3 mm |
| Unit Weight | Approx. 17 g |
| Operating Temperature Range | -40°C to +70°C (non-icing) |
| Contact Form | SPDT (1 Form C) |
| Product Category | General Purpose Relays |
| Type | Standard |
| RoHS Compliance | Yes |
| Subcategory | Relays |
| Part Number Aliases | G2R1DC24, G2R-1-DC24-BY-OMI, G2R1DC24BYOMI |
Compatible Part Numbers:
ST Relay G2R-1 24V
G2R-1 24V
Omron
Technical Datasheet:
5 in stock
