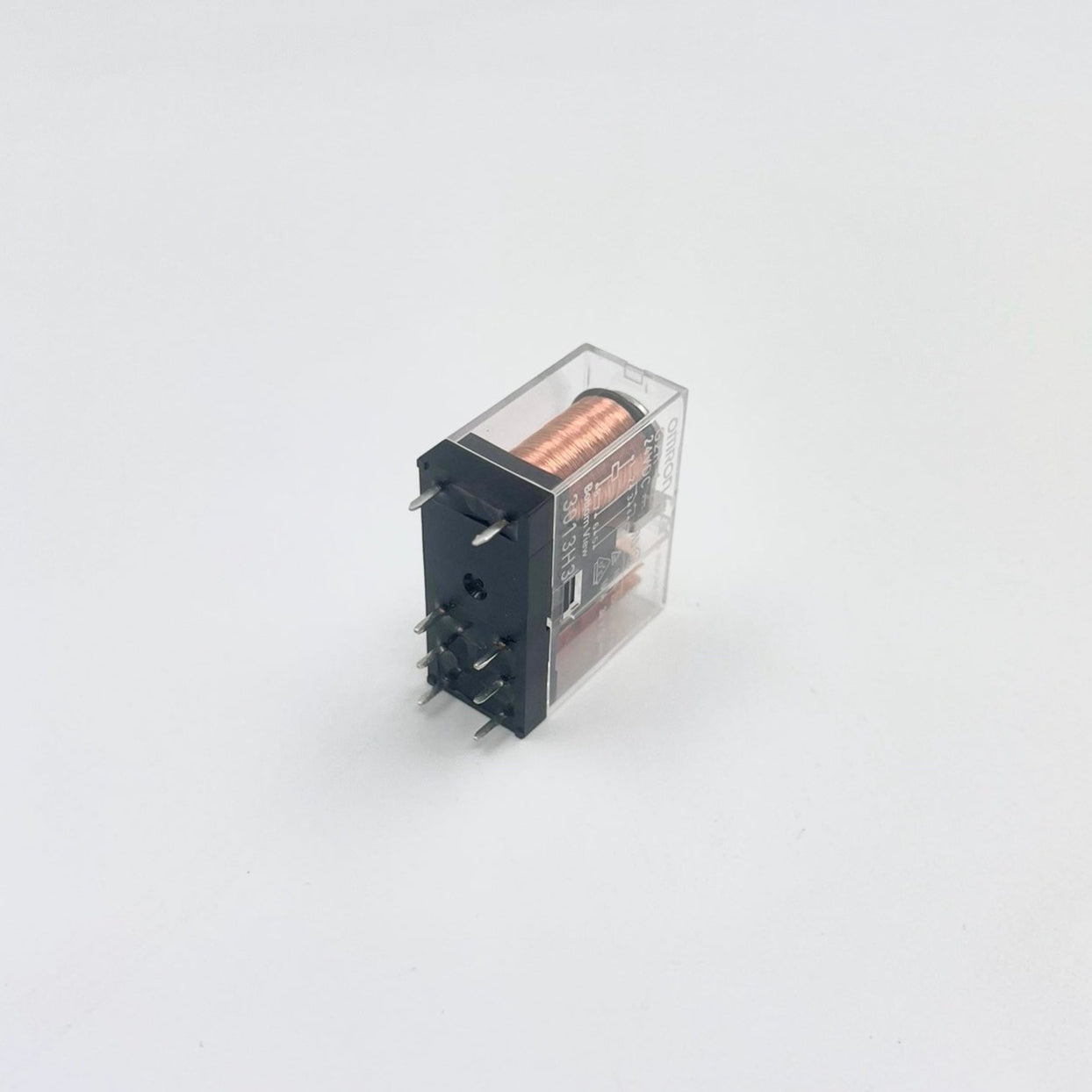

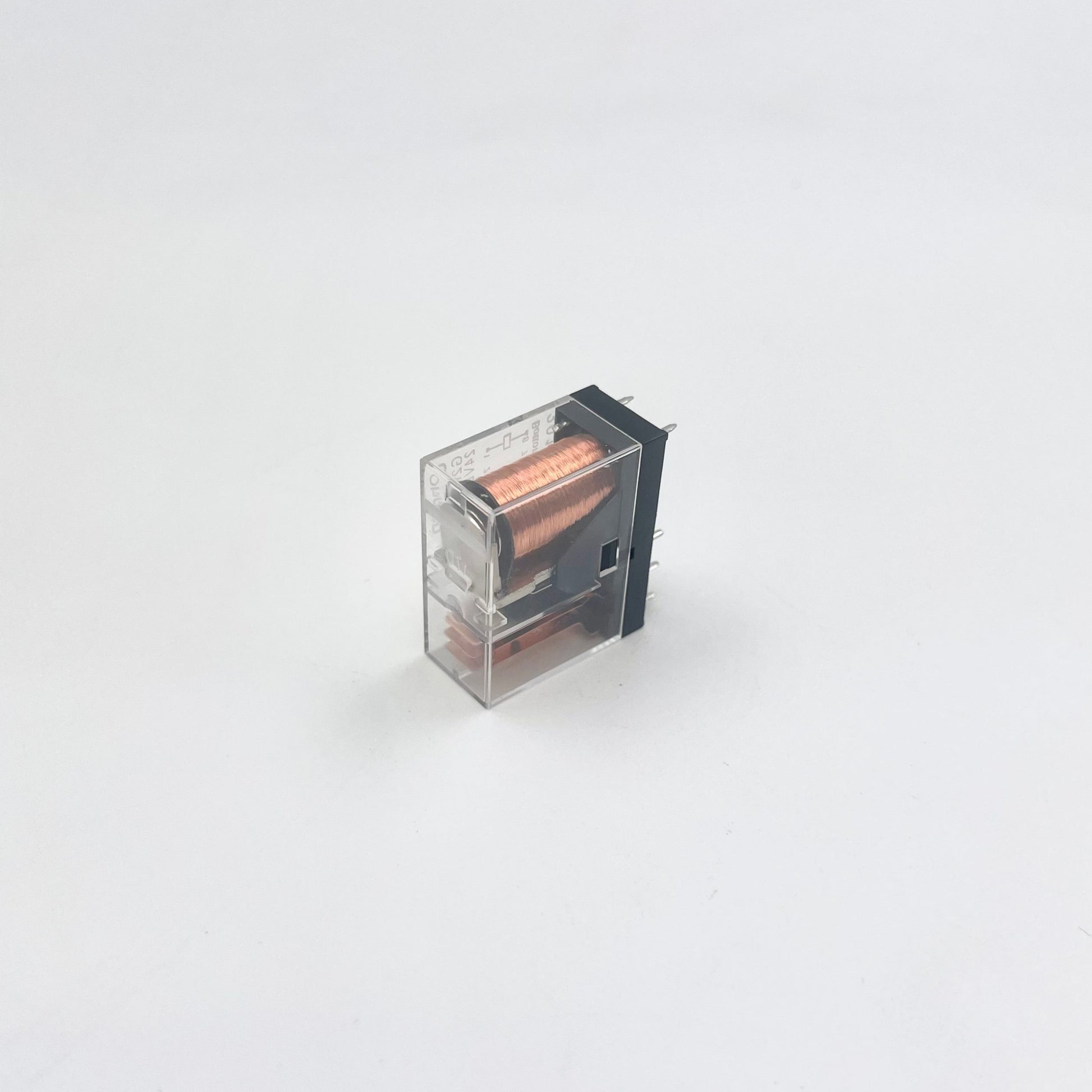

ST Relay G2R-1-E 24V - 8 Pin Plug In Power Relay
ST Relay G2R-1-E 24V - 8 Pin Plug In Power Relay
Regular price
$14.85 NZD
Regular price
Sale price
$14.85 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
ST Relay G2R-1-E 24V
The G2R-1-E 24VDC from G2R Series is a high-capacity, single-pole, general-purpose PCB relay designed for a wide range of industrial and commercial switching applications. This non-latching, through-hole relay supports up to 16A switching capacity, making it a reliable choice for high-demand control systems. With SPDT contact form, robust silver cadmium oxide contacts, and flux protection, it ensures safe and consistent operation.
Specifications:
| Feature | Specification |
|---|---|
| Manufacturer | Omron Electronics |
| Series | G2R |
| Contact Configuration | SPDT (1 Form C – NO/NC) |
| Coil Voltage | 24 V DC |
| Coil Resistance | 1.1 kΩ |
| Coil Current | 21.8 mA |
| Contact Current Rating | 16 A |
| Switching Voltage | 380 VAC / 125 VDC |
| Power Consumption | 530 mW |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Relay Type | Non-Latching |
| Contact Termination | Solder Pin |
| Coil Termination | Solder Pin |
| Mounting Style | Through Hole |
| Insulation Distance | 8 mm creepage/clearance |
| Protection | Vented / Flux protected |
| Operating Temperature | -40°C to +70°C (non-icing) |
| Dimensions (L x W x H) | 29 x 13 x 25.5 mm |
| Unit Weight | Approx. 17 g |
| Contact Form | SPDT (1 Form C) |
| Product Category | General Purpose Relays |
| Type | High Capacity Power Relay |
| Packaging | Tray |
| RoHS Compliance | Yes |
| Product Type | Power Relays |
| Subcategory | Relays |
| Part Number Aliases | G2R1EDC24, G2R-1-EDC24(ST), G2R1EDC24NC |
Compatible Part Numbers:
ST Relay G2R-1-E 24V
G2R-1-E 24V
Omron
Technical Datasheet:
