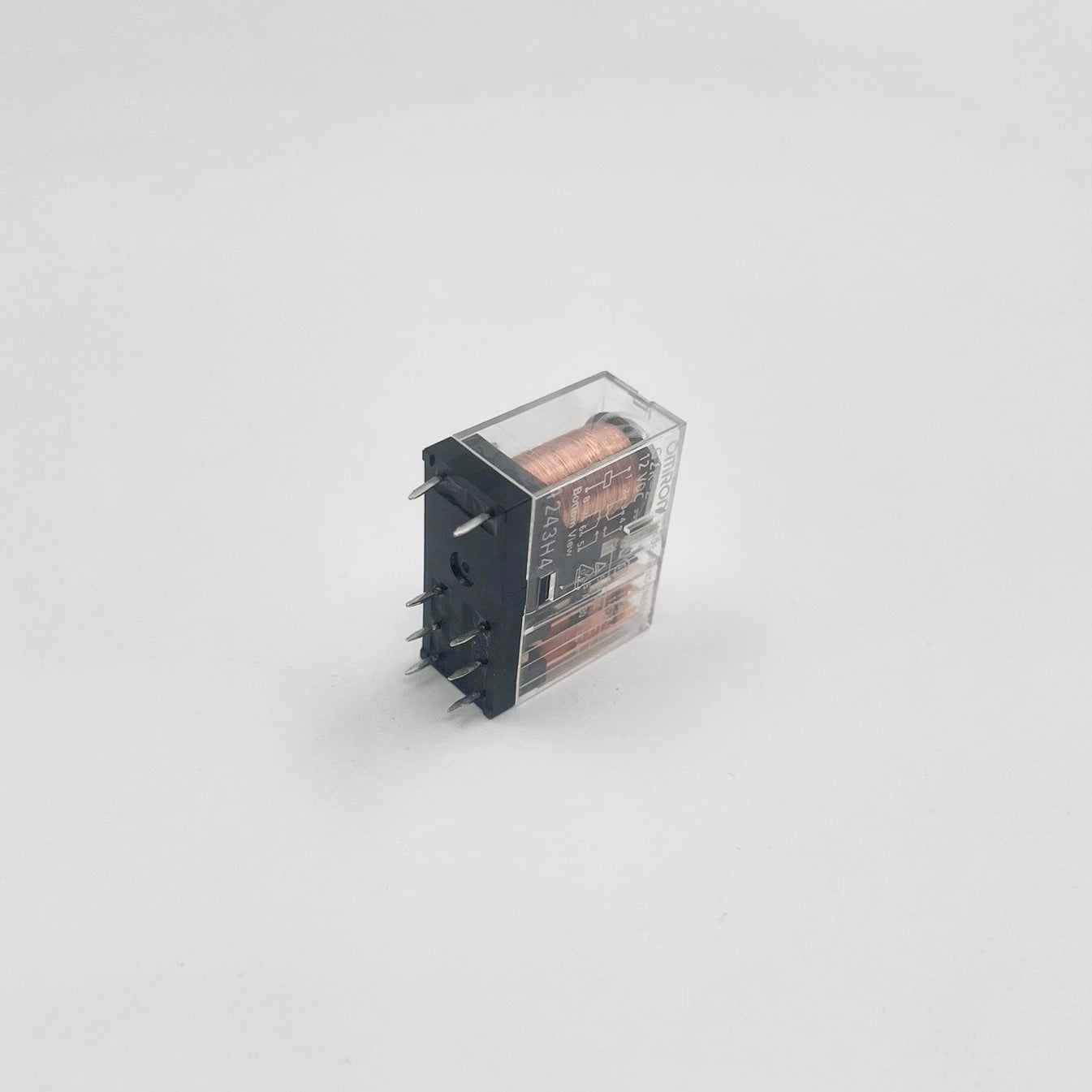

ST Relay G2R-2 12V - Plug In Power Relay
ST Relay G2R-2 12V - Plug In Power Relay
Regular price
$14.85 NZD
Regular price
Sale price
$14.85 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
ST Relay G2R-2 12V
The G2R-2 12VDC from Omron’s G2R Series is a compact, standard general-purpose relay with a DPDT (2 Form C) contact configuration. Designed for through-hole PCB mounting, this non-latching relay is ideal for applications requiring dual-pole switching. With a 12 VDC coil, 5A contact rating, and silver alloy contacts, it delivers reliable switching performance in industrial and automation systems.
Specifications:
| Feature | Specification |
|---|---|
| Manufacturer | Omron Electronics |
| Series | G2R |
| Product Type | Power Relay – Standard |
| Coil Voltage | 12 V DC |
| Coil Resistance | 275 Ω |
| Coil Current | 43.6 mA |
| Power Consumption | 530 mW |
| Relay Contact Form | DPDT (2 Form C – NO/NC) |
| Contact Current Rating | 5 A |
| Switching Voltage | 380 VAC / 125 VDC |
| Contact Material | Silver Alloy (Ag) |
| Coil Type | Non-Latching |
| Contact Termination | Solder Pin |
| Coil Termination | Solder Pin |
| Mounting Style | Through Hole |
| Dimensions (L x W x H) | 29 x 12.7 x 25.5 mm |
| Unit Weight | Approx. 17 g |
| Operating Temperature Range | -40°C to +70°C (non-icing) |
| Contact Form | DPDT (2 Form C) |
| Product Category | General Purpose Relays |
| Type | Standard |
| RoHS Compliance | Yes |
| Subcategory | Relays |
| Part Number Aliases | G2R2DC12, G2R2DC12NC, G2R2DC12BYOMI |
Compatible Part Numbers:
ST Relay G2R-2 12V
G2R-2 12V
Omron
Technical Datasheet:
5 in stock
