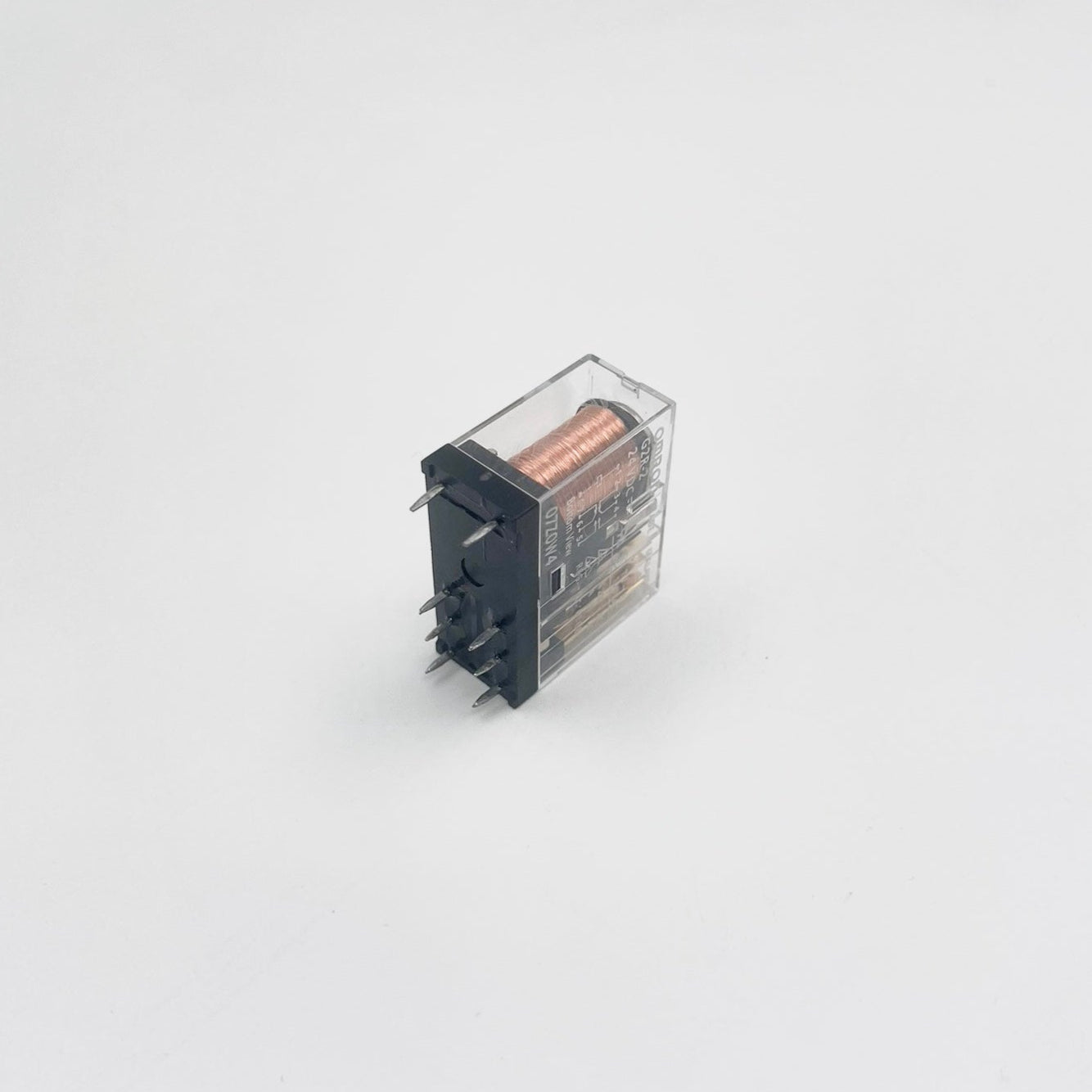

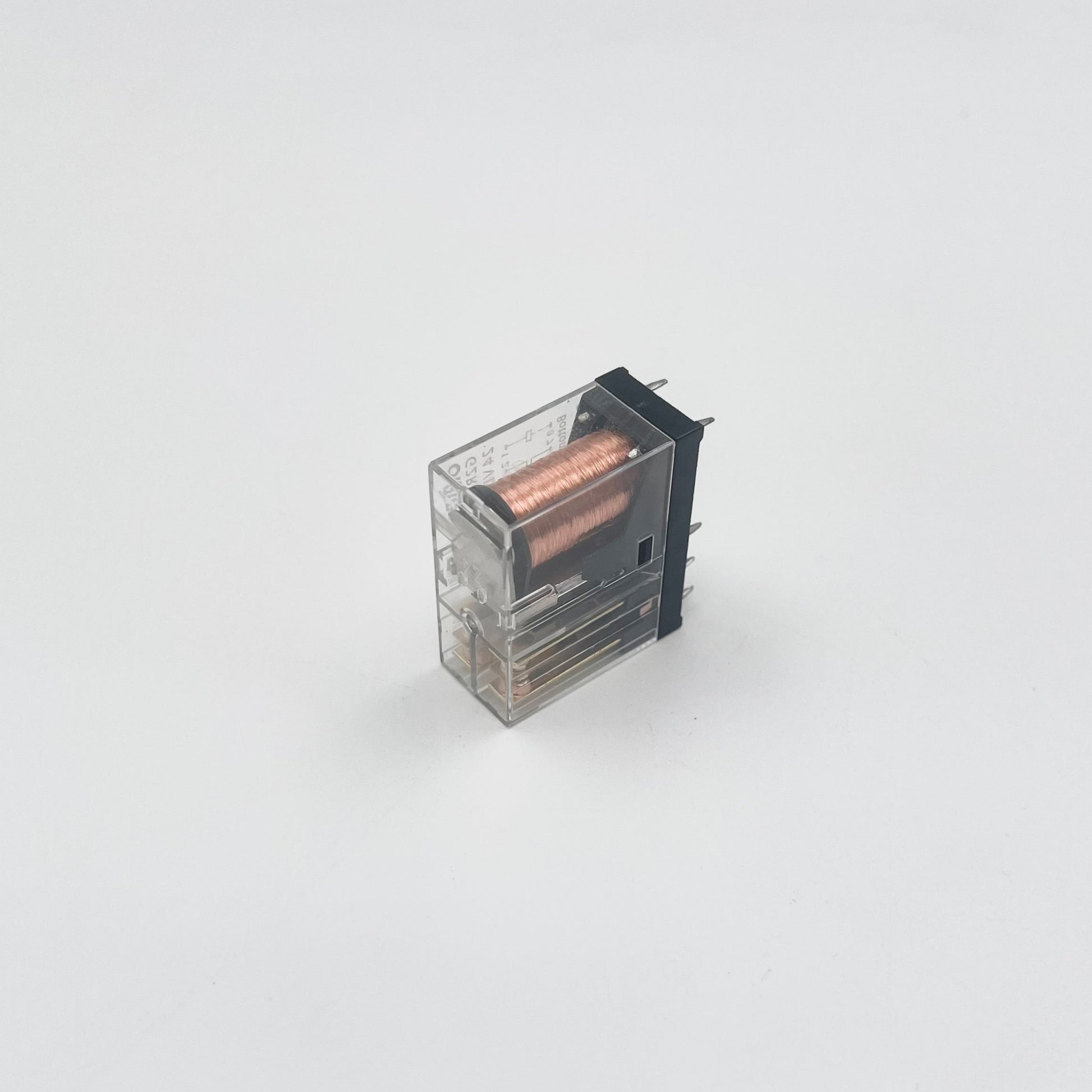

ST Relay G2R-2 24V - 8 Pin Plug In Power Relay
ST Relay G2R-2 24V - 8 Pin Plug In Power Relay
Regular price
$14.85 NZD
Regular price
Sale price
$14.85 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
ST Relay G2R-2 24V
The G2R-2 24VDC relay from G2R Series is a dependable double-pole, general-purpose PCB relay designed for switching loads up to 5A. With a DPDT (2 Form C) contact configuration, it offers dual-channel switching capability, ideal for control panels, industrial systems, and automation circuits. This non-latching relay features a 24 VDC coil, silver alloy contacts, and a compact through-hole package.
Specifications:
| Feature | Specification |
|---|---|
| Manufacturer | Omron Electronics |
| Series | G2R |
| Product Type | Power Relay – Standard |
| Coil Voltage | 24 V DC |
| Coil Resistance | 1.6 kΩ |
| Coil Current | 21.8 mA |
| Power Consumption | 530 mW |
| Relay Contact Form | DPDT (2 Form C – NO/NC) |
| Contact Current Rating | 5 A |
| Switching Voltage | 380 VAC / 125 VDC |
| Contact Material | Silver Alloy (Ag) |
| Coil Type | Non-Latching |
| Contact Termination | Solder Pin |
| Coil Termination | Solder Pin |
| Mounting Style | Through Hole |
| Dimensions (L x W x H) | 29 x 12.7 x 25.5 mm |
| Unit Weight | Approx. 17 g |
| Operating Temperature Range | -40°C to +70°C (non-icing) |
| Contact Form | DPDT (2 Form C) |
| Product Category | General Purpose Relays |
| Type | Standard |
| RoHS Compliance | Yes |
| Subcategory | Relays |
| Part Number Aliases | G2R2DC24, G2R2DC24NC, G2R2DC24BYOMI |
Compatible Part Numbers:
ST Relay G2R-2 24V
G2R-2 24V
Omron
Technical Datasheet:
