ST Relay G3R-OA202SZN-UTU - Plug In Solid State Relay
ST Relay G3R-OA202SZN-UTU - Plug In Solid State Relay
Price (exc. GST) each
Couldn't load pickup availability

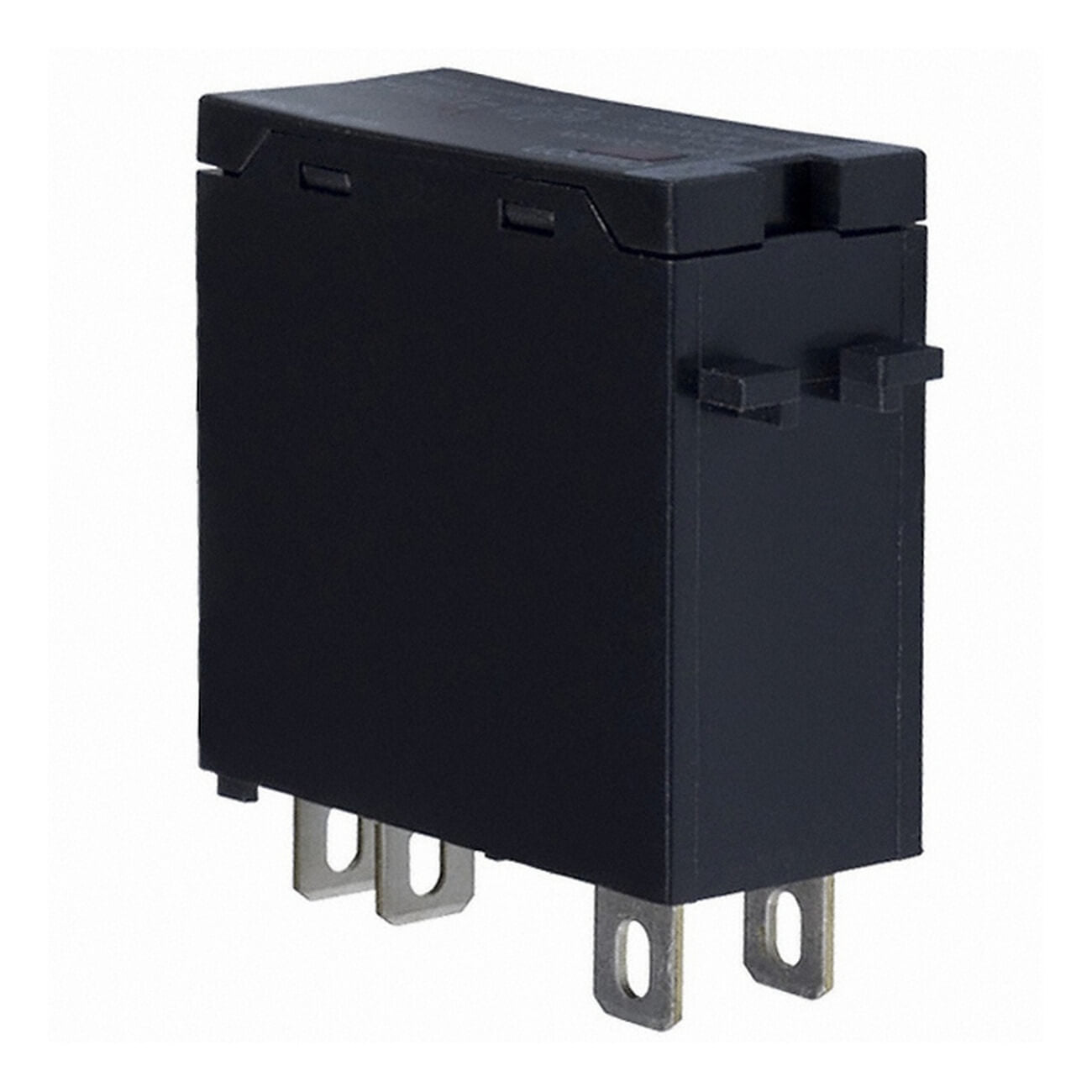

ST Relay G3R-OA202SZN-UTU
The G3R-OA202SZN-UTU is a high-quality solid state relay designed for reliable switching of AC loads up to 264 V. Featuring a 2 A maximum load current and a plug-in mounting style, this relay is ideal for panel assemblies and compact control systems. Its zero-crossing switching minimizes electrical noise and inrush current, while the Triac output ensures robust and efficient switching performance. The relay supports a wide control voltage range of 5–24 VDC and operates across a broad temperature range, making it suitable for industrial and commercial applications. With international approvals including CE and CSA, it delivers confidence in global installations.
Specifications
| Attribute | Value |
|---|---|
| Brand | Omron |
| Series | G3R-OA202SZN-UTU 5–24VDC |
| Relay Type | Solid State Relay |
| Range | G3R |
| Maximum Load Current | 2 A |
| Maximum Load Voltage | 264 V AC |
| Minimum Load Voltage | 75 V AC |
| Minimum Load Current | 50 mA |
| Switching Type | Zero Crossing |
| Output Device | Triac |
| Number of Poles | 1 |
| Contact Configuration | SPST-NO |
| Mounting Type | Plug In |
| Terminal Type | Plug In |
| Operating Temperature Range | –30 → +80 °C |
| Maximum Operating Temperature | +80 °C |
| Minimum Operating Temperature | –30 °C |
| Height | 29 mm |
| Depth | 28 mm |
| Standards Met | CE, CSA |
Compatible Part Numbers:
G3R-OA202SZN-UTU
Omron
Technical Datasheet:
