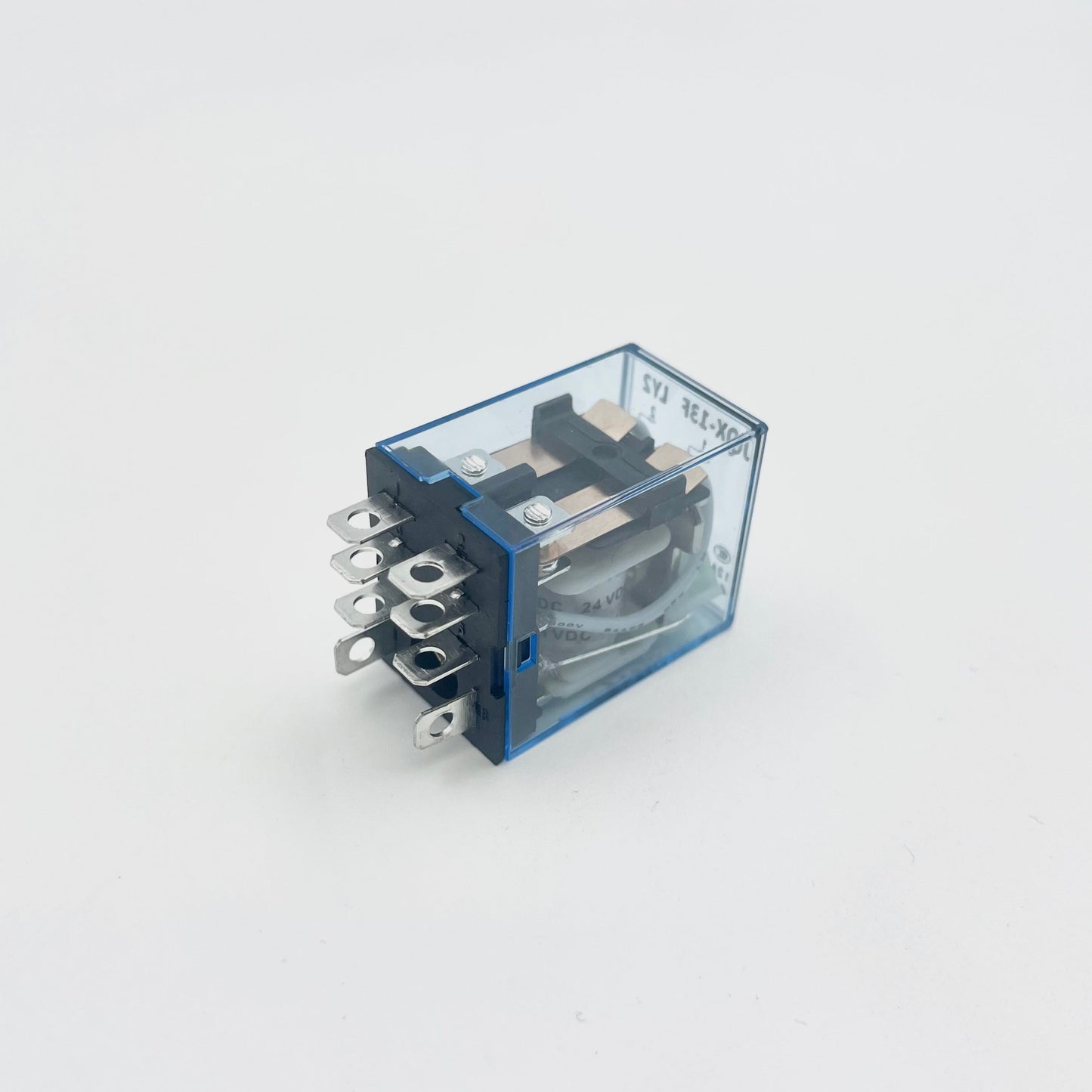

ST Relay LY2 24V - Plug In Power Relay
ST Relay LY2 24V - Plug In Power Relay
Price (exc. GST) each
Couldn't load pickup availability
ST Relay LY2 24V
The ST Relay LY2 24VDC - JQX-13F is a versatile and reliable relay designed for a wide range of industrial applications. Featuring a DPDT (Double Pole Double Throw) contact configuration, this relay ensures efficient switching performance with a maximum contact current of 5A. Operating on a 24V DC coil voltage, it offers excellent durability and longevity, with a typical coil resistance of 1.7 Ω. Built to withstand harsh environments, it has an operating temperature range from -40°C to +70°C. Ideal for controlling high-voltage systems, the LY2 24Vdc provides reliable, low-power consumption switching, making it an essential component for electrical control and automation systems.
| Features | Specifications |
|---|---|
| High-quality relay | Coil Voltage: 24V DC |
| Compact design | Contact Current (AC-1): 5A |
| DPDT (Double Pole Double Throw) contacts | Contacts: DPDT (Double Pole Double Throw) |
| Reliable performance | Coil Resistance: Typically 1.7 Ω |
| Widely used in industrial applications | Max Switching Voltage: 250V AC / 30V DC |
| Long life cycle | Max Switching Current: 5A AC / 5A DC |
| Low power consumption | Contact Material: AgNi (Silver Nickel) |
| Sealed construction for durability | Operating Temperature: -40°C to +70°C |
Compatible Part Numbers:
ST Relay LY2 24V
JQX-13F
Omron
Technical Datasheet:
2 in stock
