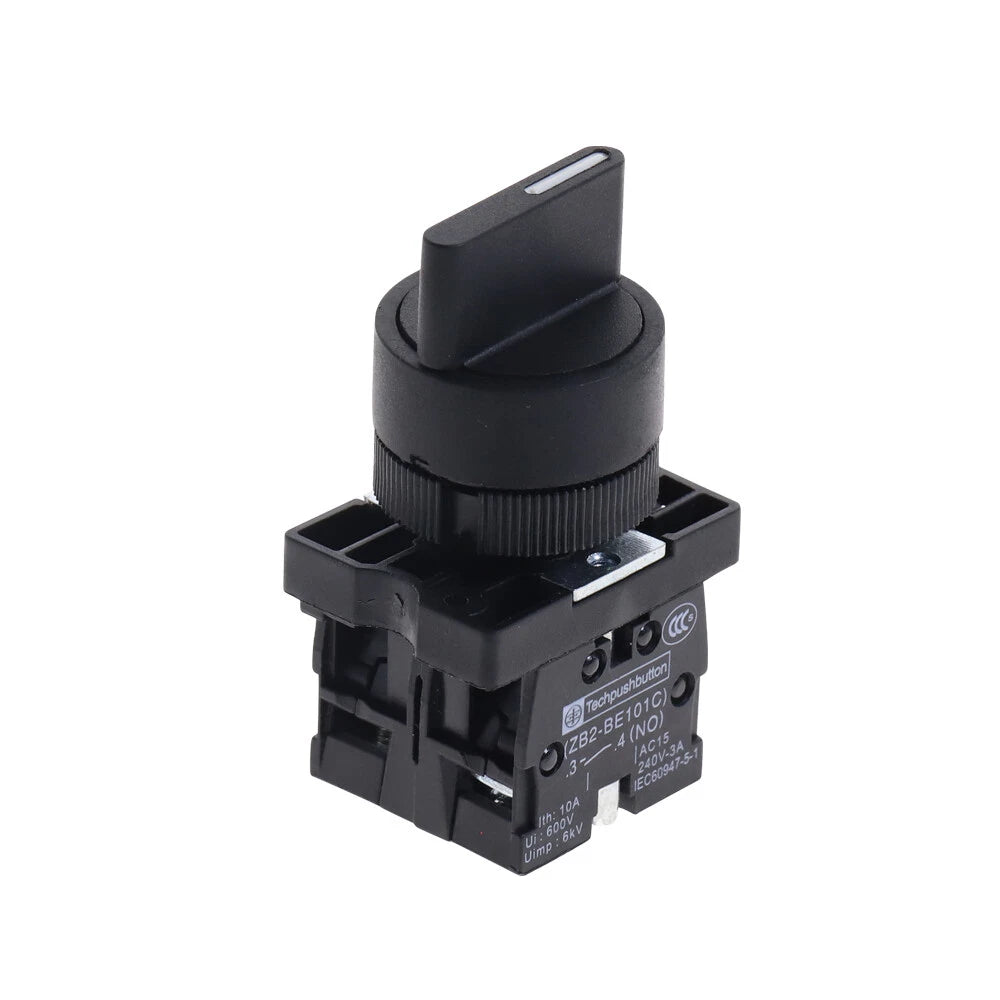

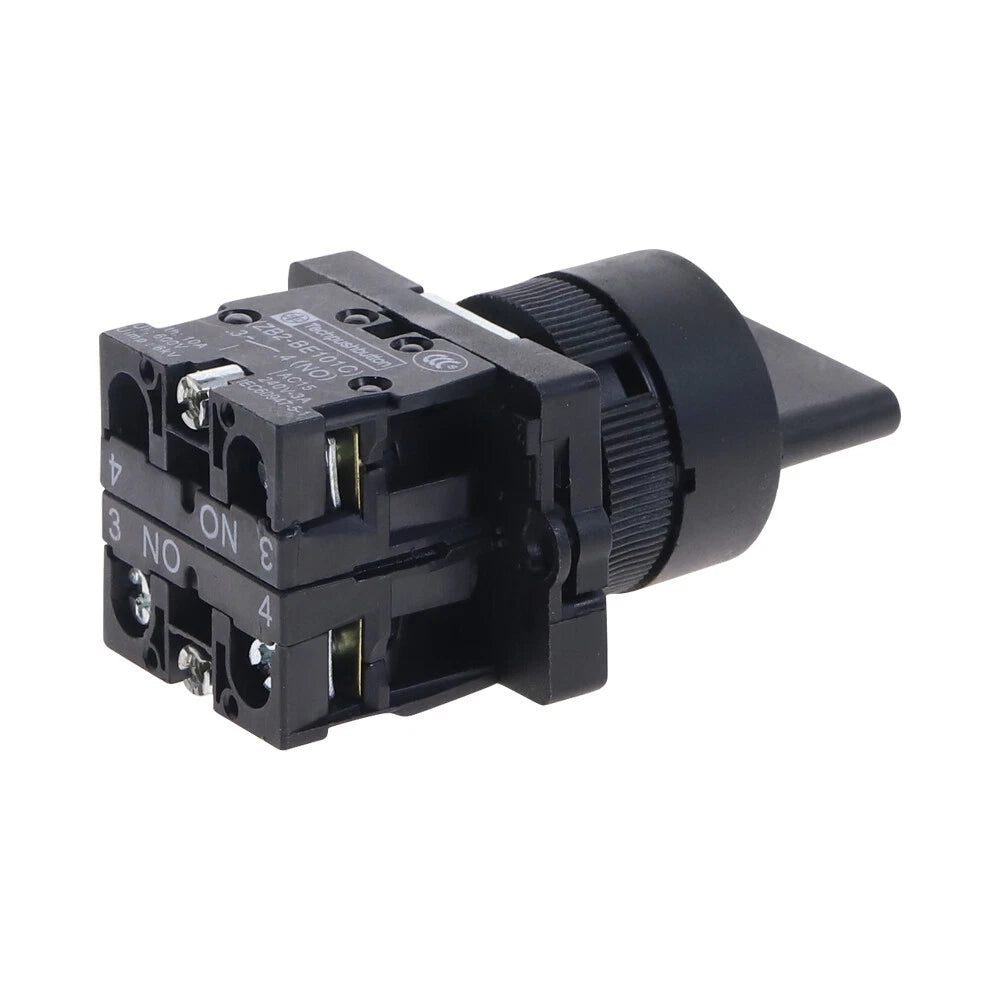

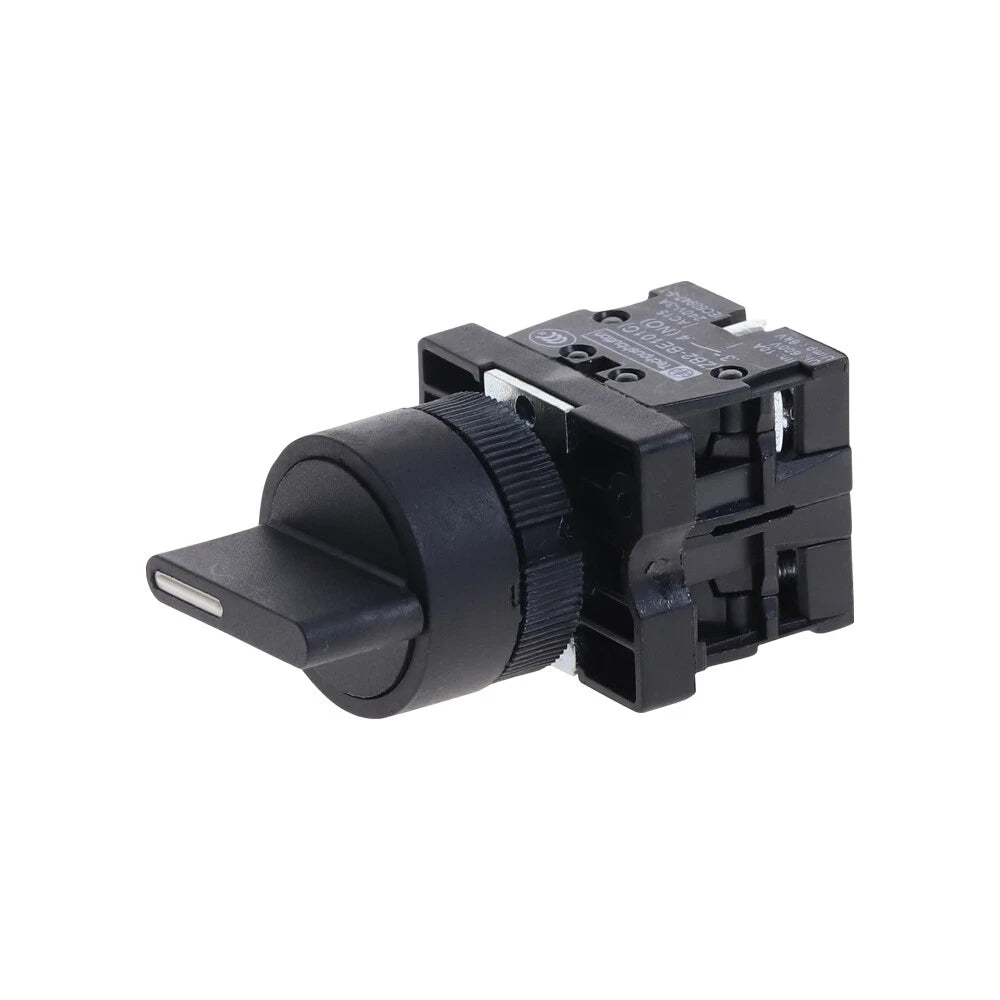

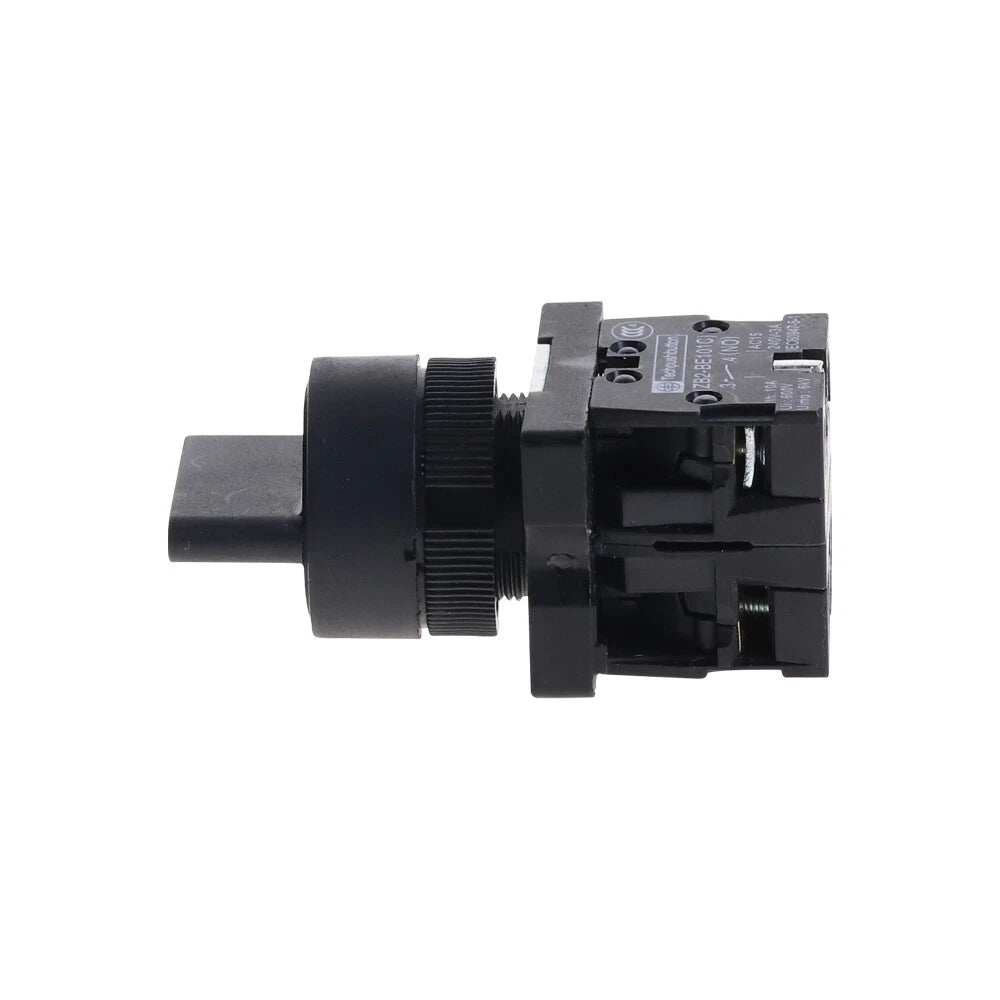

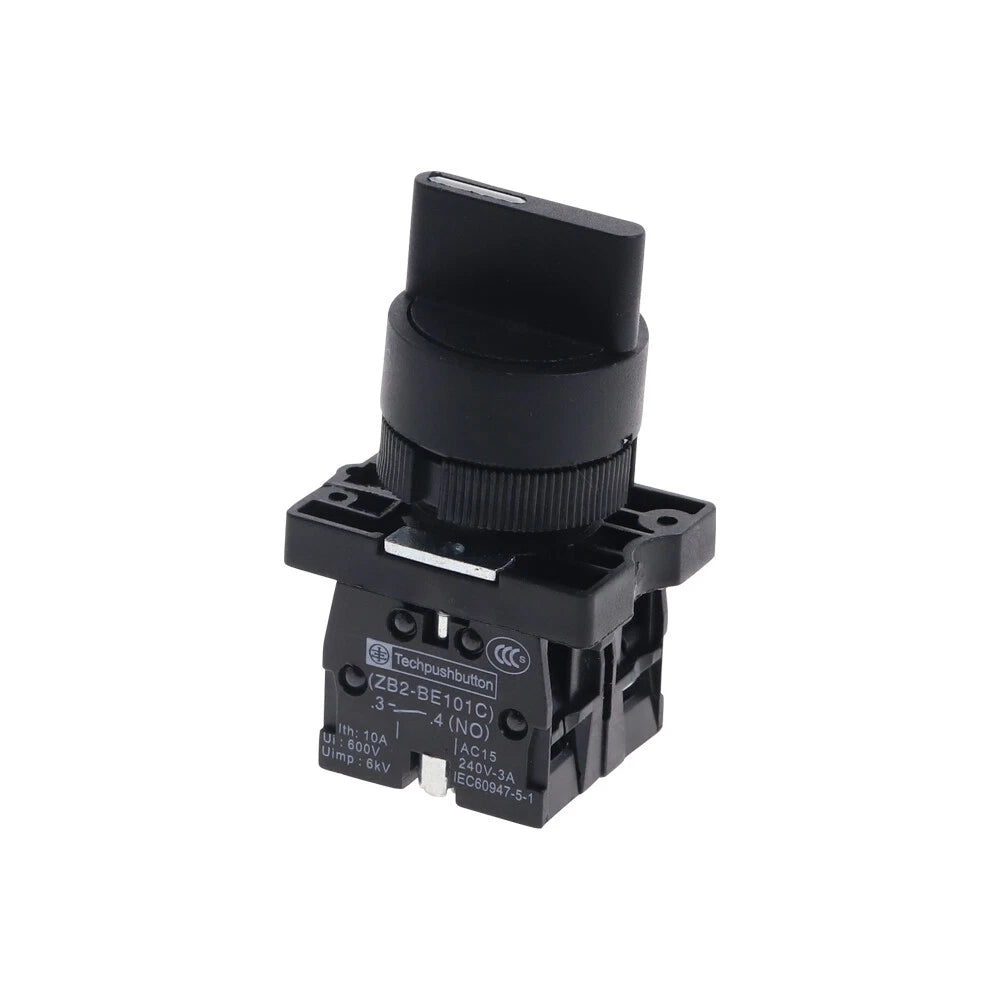

ST Selector Switch 2 Position

The ST Selector Switch 2 Position from the XB2 series is a durable, high-performance control switch designed for a wide range of industrial applications. Whether you're managing magnetic starters, contactors, or relays, this selector switch delivers consistent performance in demanding environments.

Key Features:

• Versatile Industrial Use: Ideal for control circuits operating at AC 50/60Hz up to 380V or DC up to 220V, making it suitable for a wide range of industrial equipment.
• Comprehensive Protection: Rated IP40 and IP65, the switch resists dust, moisture, and harsh conditions.
• Electrical Durability: Withstands up to 500,000 electrical operations, ensuring long-lasting reliability even under heavy-duty use.
• Compact 22mm Design: Standard mounting size for easy integration into control panels.
• Wide Voltage Compatibility: Supports multiple voltage levels—AC and DC—including 24V, 48V, 110V, 220V, and 380V.
• Indication Options: Available with LED or neon lamp indicators to enhance visibility and operational feedback.
• Material: Tough and insulated plastic housing for safety and longevity.
• Certification: CCC certified and conforms to GB14048.5-2001 standards for control circuit devices.

Technical Specifications:

• Model Numbers: XB2-ED21, XB2-ED25, XB2-ED33, XB2-ED53
• Switch Type: Touch On/Off Selector
• Ambient Temperature: -5°C to +40°C
• Relative Humidity: 45%–85%
• Contact Resistance: ≤50mΩ
• Rated Insulation Voltage (Ui): 660V
• Thermal Current (Ith): 10A
• Withstand Voltage: 2500V (1 min)

Rated Operational Current (Ie):

• AC-15: 2.5A (380V), 4.5A (220V), 6A (110V), 8A (48V)
• DC-13: 0.3A (220V), 0.6A (110V), 1.3A (48V), 2.5A (24V)

Indicator Voltage Options:

• LED Lamps: 6V, 12V, 24V
• Neon Lamps: 110V, 220V, 380V
• Incandescent: Available across all standard voltages

The ST Selector Switch 2 Position is your go-to solution for safe, efficient, and durable industrial control. Whether upgrading existing systems or building new control panels, this switch ensures reliable operation in every application.

Compatible Part Numbers:

ST Selector Switch 2 Position

XB2-ED25
