B35

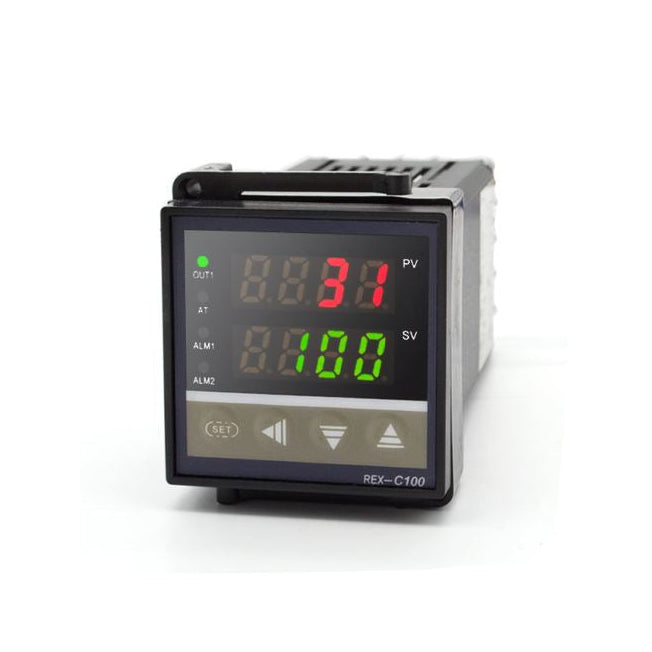

ST-REX-C100 - Southern Technology Digital Temperature Controller

ST-REX-C100 - Southern Technology Digital Temperature Controller

Regular price $78.30 NZD
Regular price Sale price $78.30 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

Southern Technology Digital Temperature Controller 100

Precision Control for Industrial Heating and Cooling Systems.

The ST-REX-C100 is a versatile digital temperature controller designed to provide accurate, stable, and reliable temperature regulation for a wide range of applications. Ideal for kilns, furnaces, injection molding machines, food processing systems, and other industrial or laboratory environments, this controller offers precise control using PID algorithms with automatic tuning.

Equipped with a clear digital display, relay output, and support for thermocouple input, the ST-REX-C100 is engineered to handle both simple and complex temperature management tasks with ease.

Feature Specification
Model Name ST-TC100
Input Type K-type Thermocouple (default)
Control Mode PID / ON-OFF
Output Type Relay Output (12V DC, Max 3A)
Temperature Range 0 – 400°C (depending on sensor)
Display Dual LED Display (PV / SV)
Accuracy ±0.5%FS ±1 digit
Sampling Cycle 0.5 seconds
Control Method Self-tuning PID algorithm
Power Supply 100–240V AC, 50/60Hz
Mounting Type Panel Mount
Panel Cutout Size 45mm x 45mm
Overall Dimensions Approx. 48mm x 48mm x 110mm
Operating Environment -10°C to 55°C, < 85% RH (non-condensing)
Certifications CE

Instruction Manual:

Compatible Part Numbers:

ST-REX-C100

REX-C100

G-REX-C100-SSR

P1418222050101
