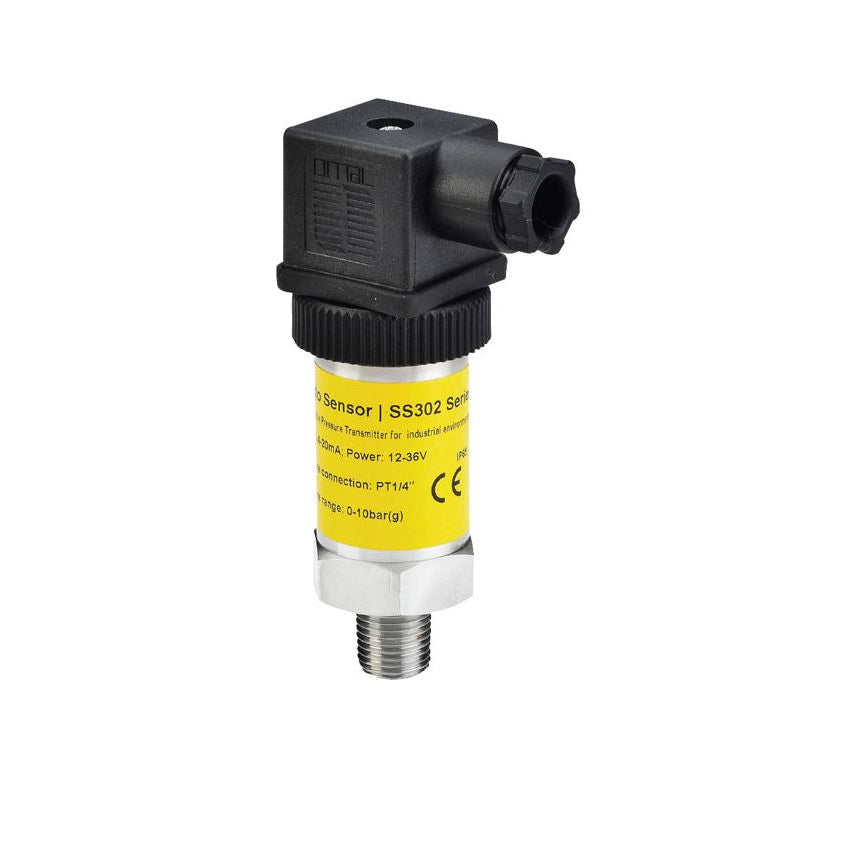

ST 302-10B-G14-DINXMTR - 0 to 10 bar - 4- 20ma Pressure Transmitter

The ST302-10B-G14-DINXMTR is a high-performance piezoresistive pressure transmitter designed for accurate pressure measurement in demanding industrial environments. Encased in a robust stainless steel 316L body with a G1/4" process connection and DIN43650A electrical connector, this transmitter offers exceptional long-term stability and reliability.

Featuring a silicone oil-filled, isolated sensor construction and a Viton O-ring seal, it is suitable for use with a wide range of liquids and gases. The unit operates on a 12 to 36V DC supply and provides a 2-wire 4-20 mA output signal, with fast 4ms response time and excellent EMC protection compliant with EN 61000 standards.

Key Features:

• Pressure range: 0 to 10 bar
• Output: 4-20 mA, 2-wire
• Supply voltage: 12-36V DC
• Wetted materials: Stainless steel 316L, Viton
• Connection: G1/4" male
• Electrical connection: DIN43650A
• Operating temperature: -20 to +80°C
• Short-circuit and polarity protection
• EMC compliance to EN 61000

Ideal for OEMs and system integrators requiring reliable pressure sensing in automation, hydraulics, pneumatics, and process control applications.

Compatible Part Numbers:

ST302-10B-G14-DINXMTR

SS302

SENDO Sensor
