B05 (NO/NC)
STB40INDB0020ACDC - Inductive Switches And Sensors
STB40INDB0020ACDC - Inductive Switches And Sensors
Regular price
$219.40 NZD
Regular price
Sale price
$219.40 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

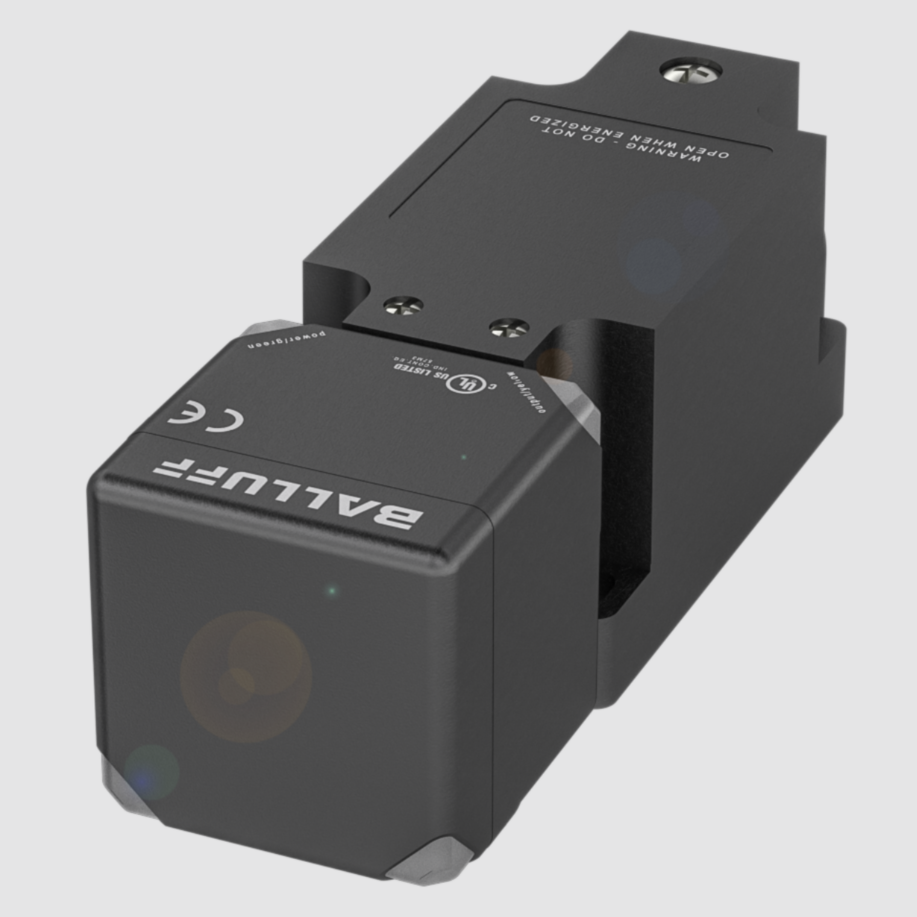

Inductive Standard Sensor
40x40x118 (NO/NC) 20-253VAC.
Compatible Part Numbers:
STB40INDB0020ACDC
BES05Z0
Typecode / BES Q40KU-UPU40F-KN05
Technical Data Of: BES05Z0
| Dimension | 40 x 40 x 118 mm |
| Style Housing | 40x40 |
| Installation | for flush mounting |

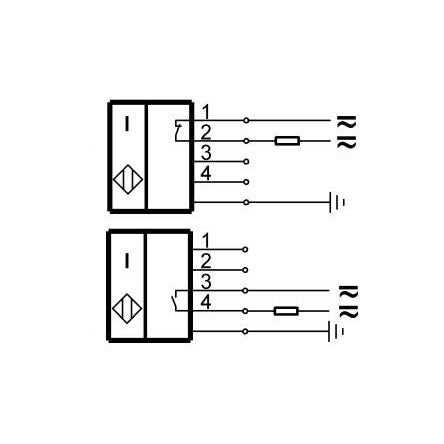

| Switching output | NO/NC |
| Housing material | Plastic |
| Material sensing surface | PA 6.6 |
| Connection | Screw terminals |
| Operating voltage Ub | 20...275 VDC/20...253 VAC |
| Ambient temperature | -25...85 °C |
| IP rating | IP67 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE | |
| CCC |
Technical Data Sheet:
2 in stock
