C15
STM12F5PUR R10 - Single-Ended Cordsets
STM12F5PUR R10 - Single-Ended Cordsets
Regular price
$66.90 NZD
Regular price
Sale price
$66.90 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Single Ended Cordset

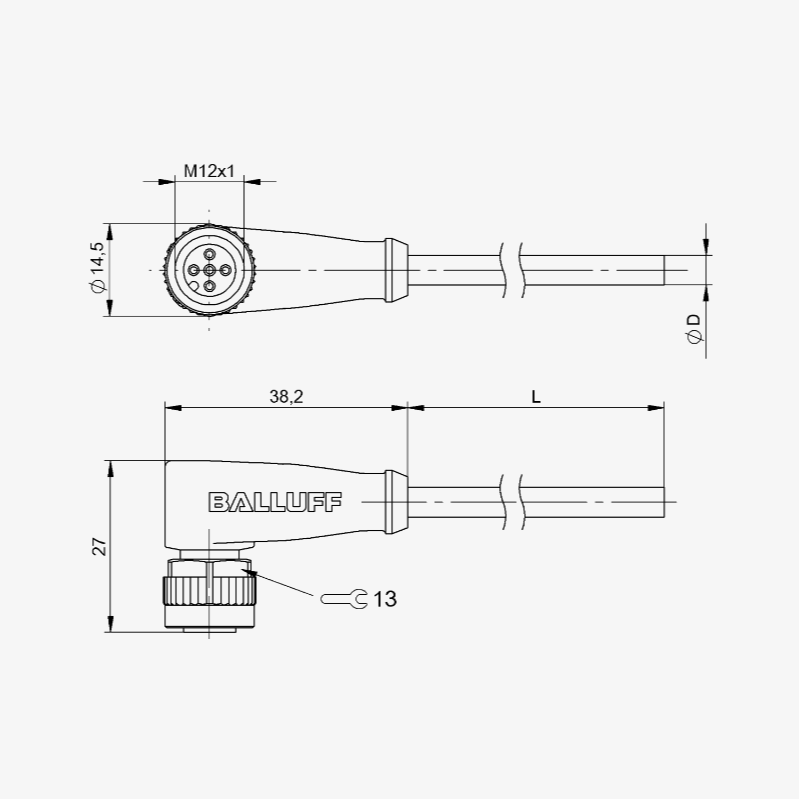

M12 -Female, angled, 5-pin, A-coded, PUR black, 10 m, drag chain compatible.
Details: STM12F5PUR R10
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection |

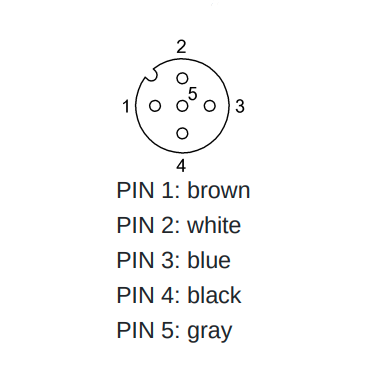

M12x1-Female, angled, 5-pin, A-coded
|
| Switching output | Complementary |
| Cable |
PUR black, 10 m, drag chain compatible
|
| Number of conductors | 5 |
| Conductor cross-section | 0.34 mm² |
| Cable temperature, fixed routing | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current | (40 °C)4.0 A |
| IP rating |
IP67, IP68, IP69K
|
| Approval/Conformity |
CE cULus WEEE
|
Compatible Part Numbers:
STM12F5PUR R10

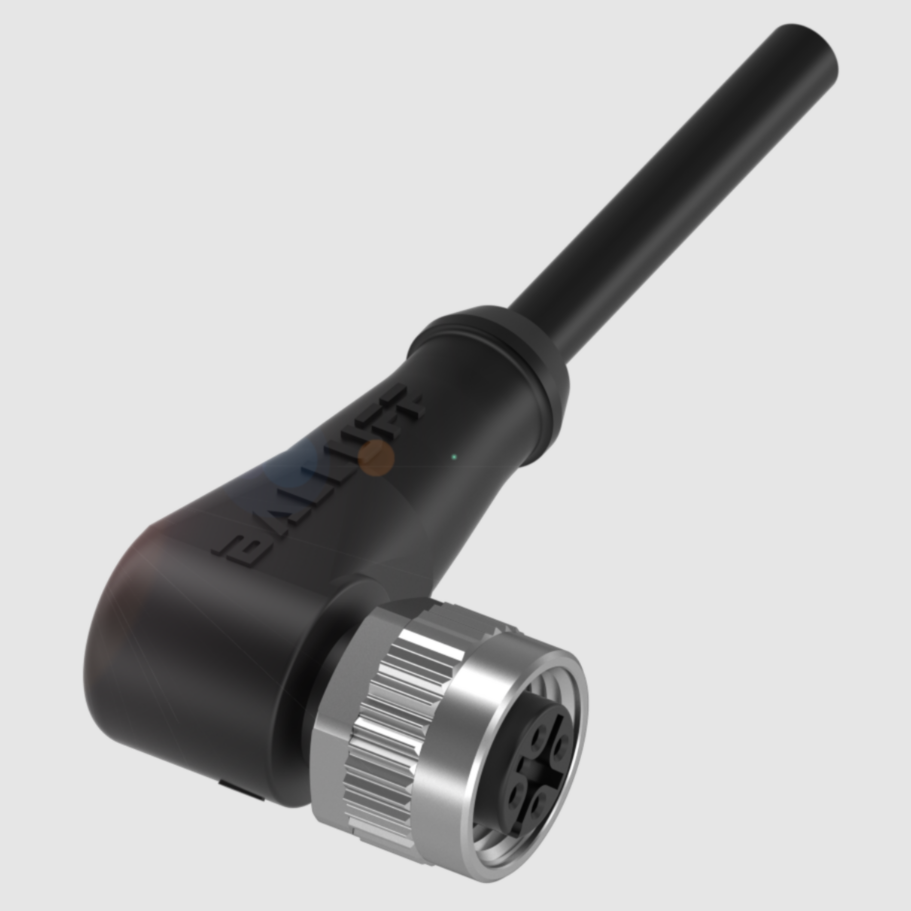

BCC08FA
Typecode / BCC M425-0000-1A-017-PX0534-100
PF 116455
V15-W-10M-PUR
Technical Data Sheet:
7 in stock
