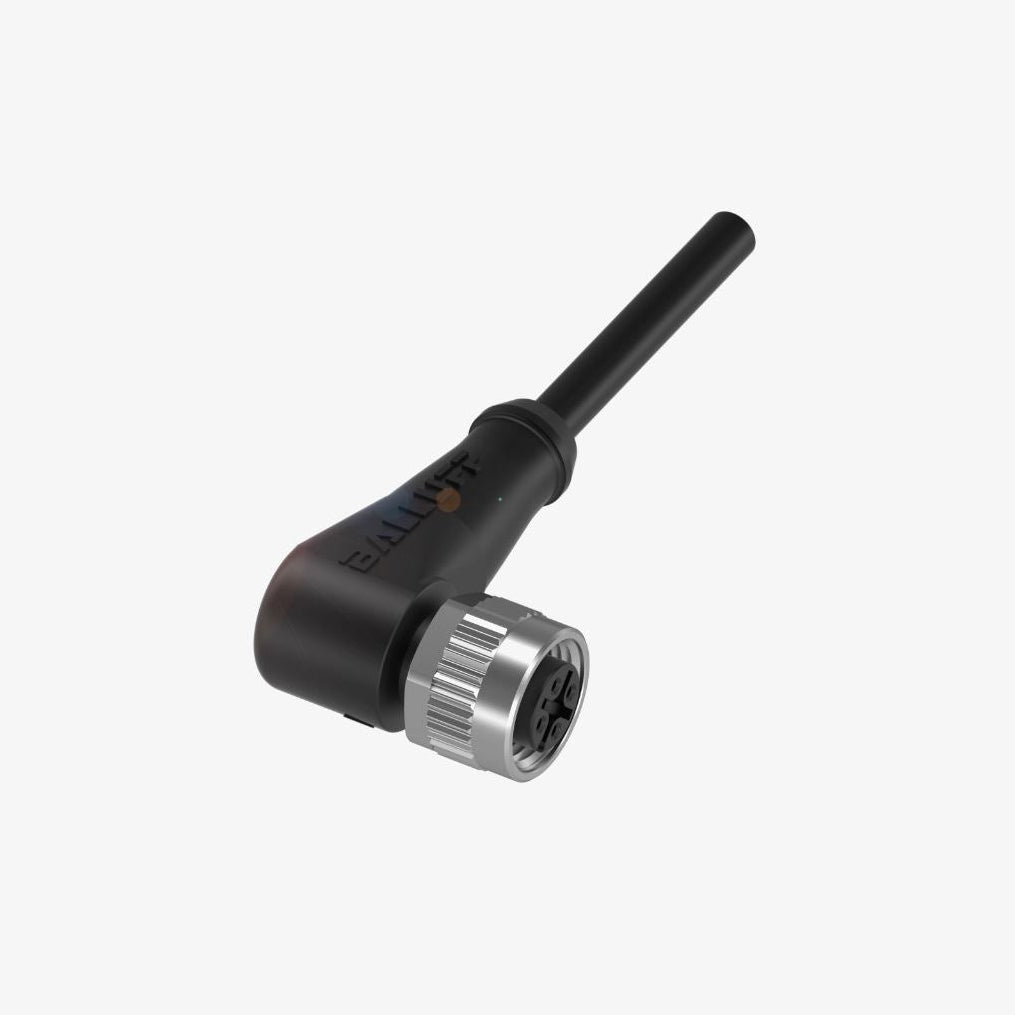

STM12F5PUR R5-BCC032Z - Single-Ended Cordsets - M12 5pin R/A 5m Cable
STM12F5PUR R5-BCC032Z - Single-Ended Cordsets - M12 5pin R/A 5m Cable
Regular price
$33.89 NZD
Regular price
Sale price
$33.89 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
STM12F5PUR R5-BCC032Z
M12 5pin R/A 5m Cable
Details: STM12F5PUR R5-BCC032Z
| Parameter | Details |
|---|---|

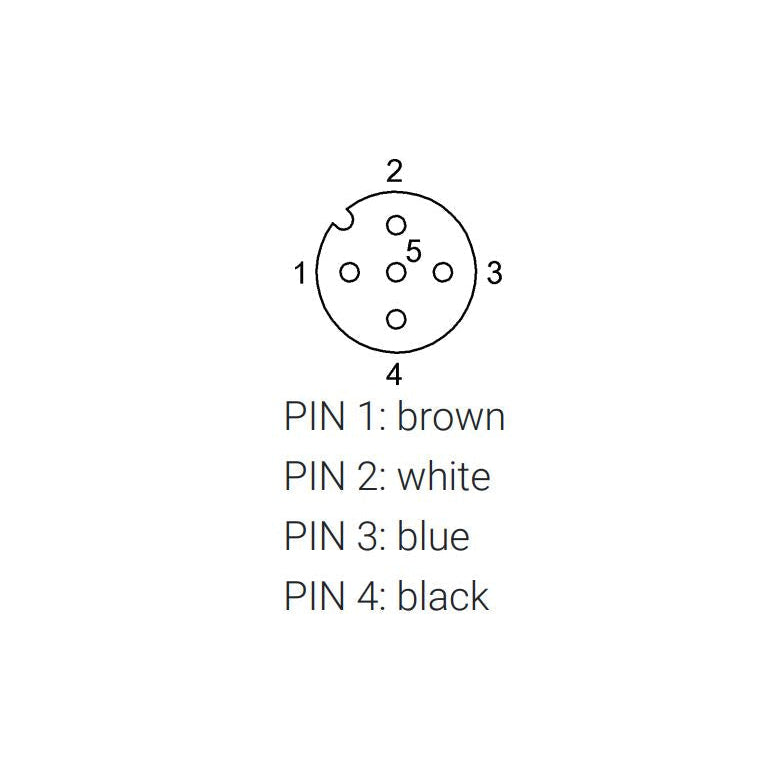

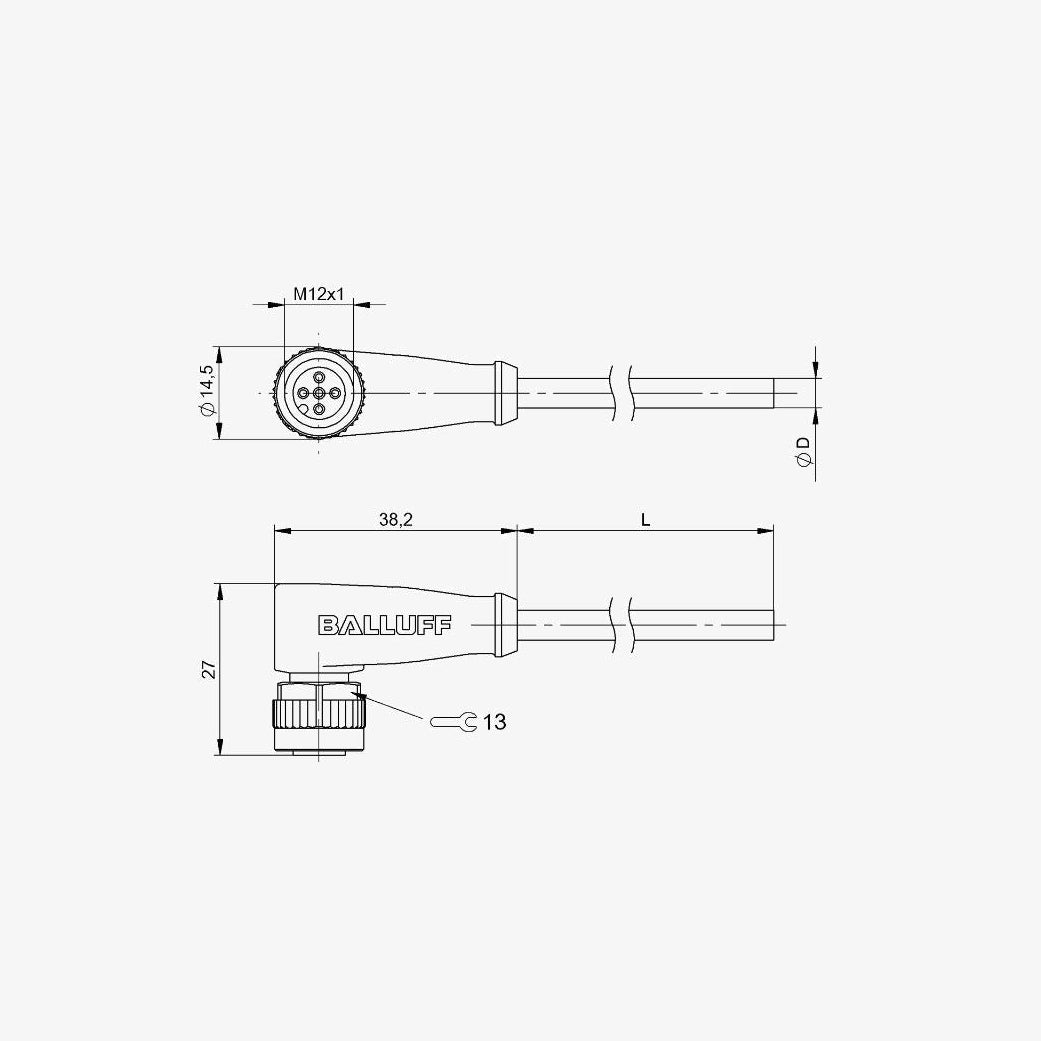

| Connection | M12x1-Female, angled, 5-pin, A-coded |
| Switching output | Complementary |
| Cable | PUR black, 5 m, drag chain compatible |

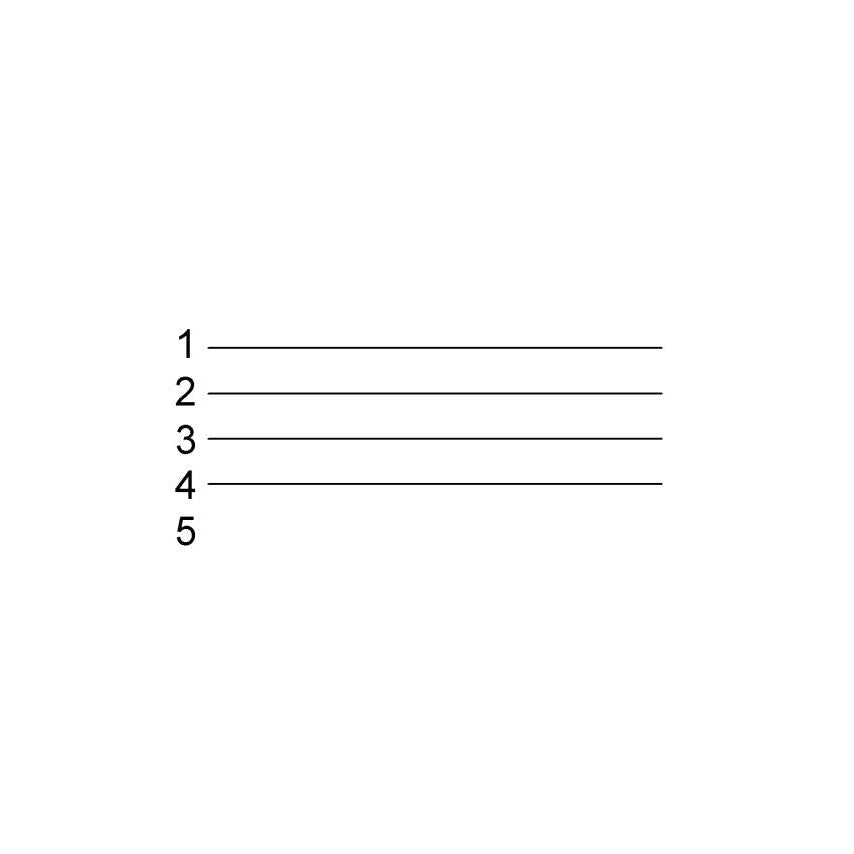

| Number of conductors | 4 |
| Conductor cross-section | 0.34 mm² |
| Cable temperature, fixed routing | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C |
| Operating voltage Ub | 250 VDC / 250 VAC |
| Rated current (40 °C) | 4.0 A |
| IP rating | IP67, IP68, IP69K |
| Approval/Conformity | CE, cULus, WEEE |
Compatible Part Numbers:
STM12F5PUR R5-BCC032Z
BCC032Z
BCC M425-0000-1A-003-PX0434-050
Technical Data Sheet:
