STM12F5PUR R5-PF021241 - Single-Ended Cordsets - M12 5pin Female, angled
STM12F5PUR R5-PF021241 - Single-Ended Cordsets - M12 5pin Female, angled
Regular price
$26.60 NZD
Regular price
Sale price
$26.60 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
STM12F5PUR R5-PF021241

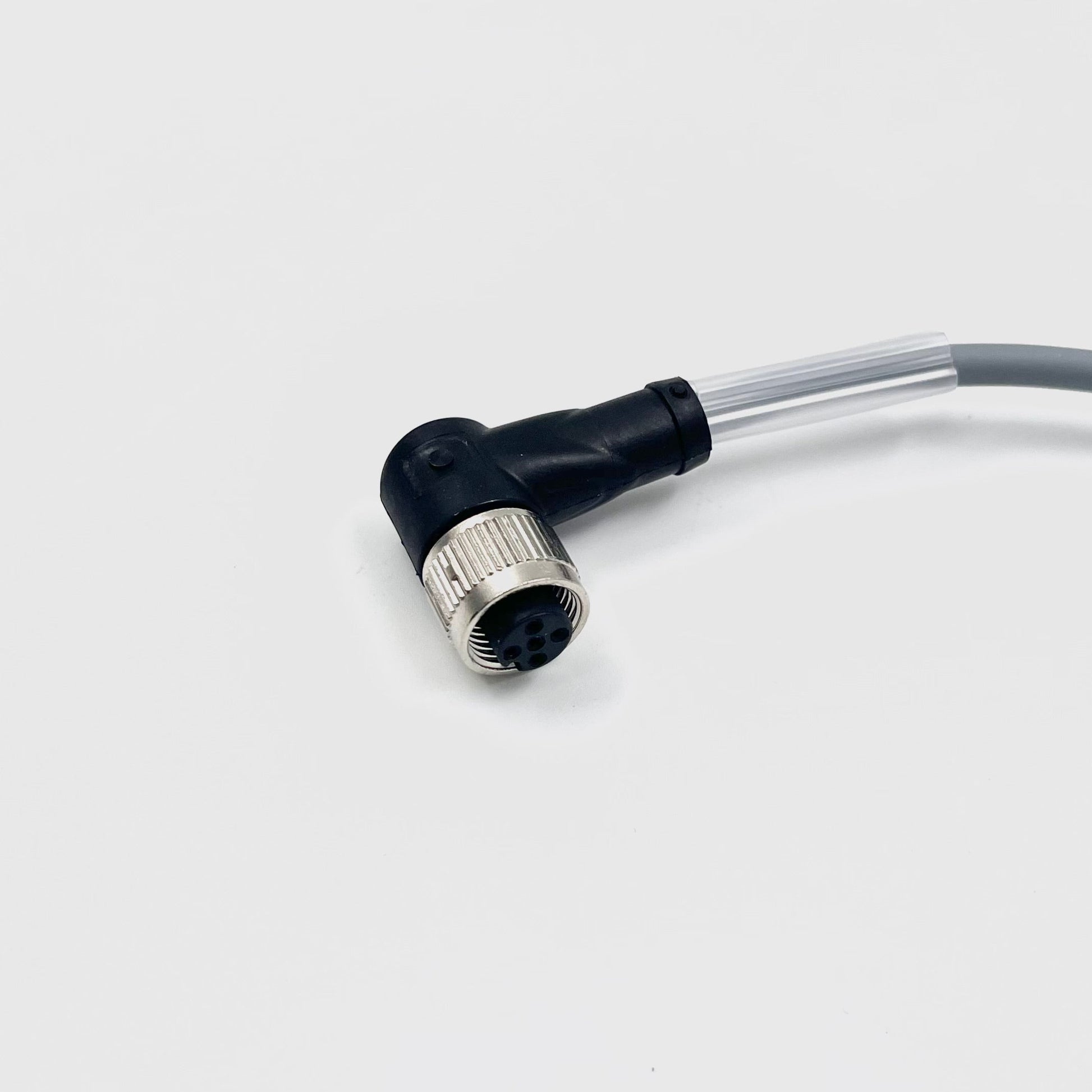

Female cordset single-ended M12 angled A-coded, 5-pin, PUR cable grey
Details: STM12F5PUR R5-PF021241
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, PepperLFuchs.
| Specification | Details |
|---|---|
| Connector 1 | |
| Connection | Socket |
| Construction type | M12 |
| Style | Angled |
| Locking | Screw connection |
| Number of pins | 5 |
| Coding | A-coded |
| Connector 2 | |
| Connection | Cable end |
| Operating voltage (UB) | Max. 48 V AC / 60 V DC |
| Operating current (IB) | Max. 4 A |
| Degree of protection (standard) | EN 60529 |
| Plug connection | Connector M12 x 1 : IEC 61076-2-101 |
| Halogen-free | IEC 60754-1 |
| Ambient temperature (plug connector) | -40 ... 90 °C (-40 ... 194 °F) |
| Ambient temperature (cable, fixed) | -40 ... 80 °C (-40 ... 176 °F) |
| Ambient temperature (cable, flexing) | -25 ... 80 °C (-13 ... 176 °F) |
| Pollution degree | 3 |
| Tightening torque | 0.6 Nm |
| Loosening protection | Available |
| Tool installation | Straight knurling and hexagon nut SW = 14 mm |
| Mating cycles | Min. 100 |
| Degree of protection (connector) | IP68 / IP69 |
| Cable Details | |
| Cable standard | According to IEC/EN 60228 (DIN VDE 0295) class 5 |
| Sheath diameter | 4.8 mm |
| Bending radius (movable installation) | > 10 × cable diameter |
| Bending radius (fixed installation) | > 8 × cable diameter |
| Sheath stripping force | Max. 60 N / 500 mm |
| Sheath color | Grey (similar to RAL 7001) |
| Number of cores | 5 |
| Core cross section | 0.34 mm² |

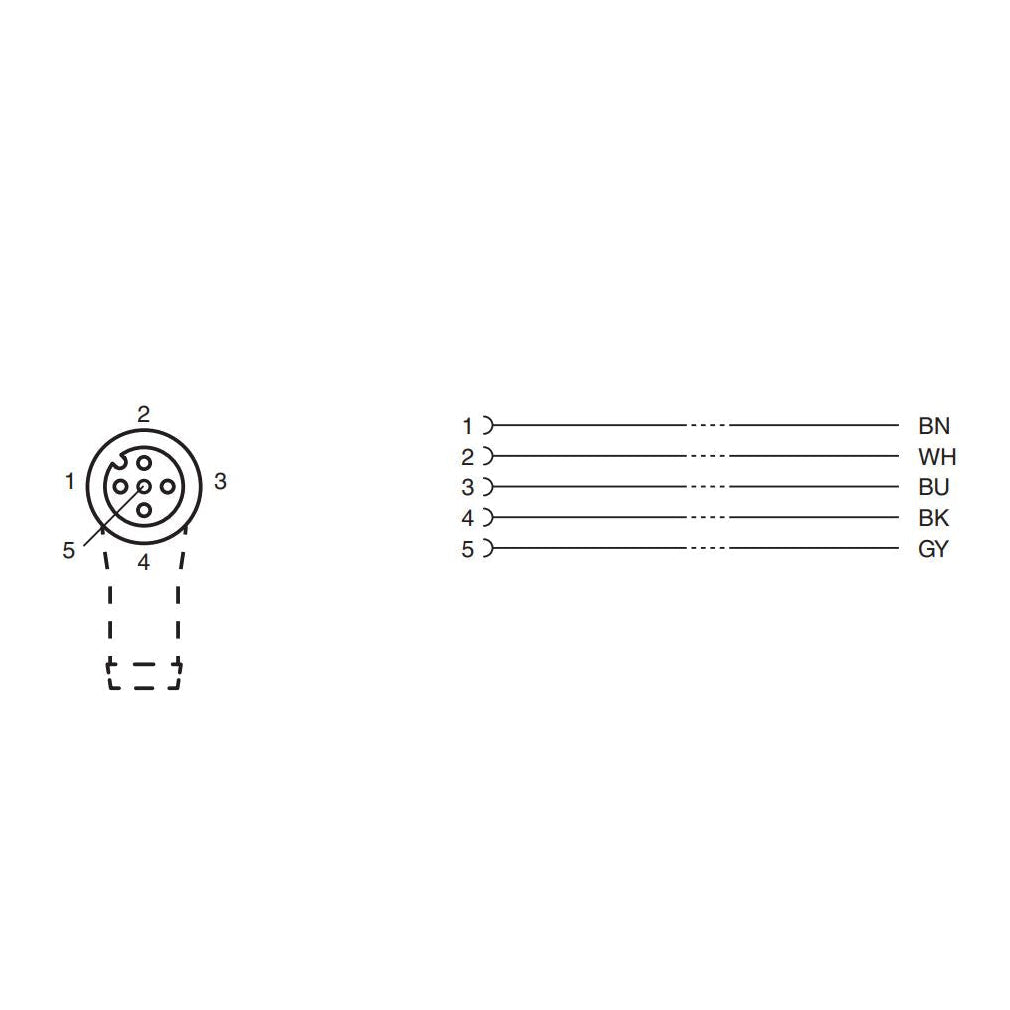

| Core colors | Core 1: Brown Core 2: White Core 3: Blue Core 4: Black Core 5: Grey |
| Core construction | 19 × 0.15 mm ∅ |
| Cable length (L) | 5 m |
| Cable code | Li 9Y 11YM 5 × 0.34 |
| Drag chain suitability | Yes |
| Drag chain cycles | Max. 50 / day |
| Motion velocity | Max. 0.3 m/s |
| Mass | 171.5 g |
Compatible Part Numbers:
STM12F5PUR R5-PF021241
PF 021241
V15-W-5M-PUR
Technical Datasheet:
3 in stock
