C07

STM12F5PUR R5 - Single-Ended Cordsets

STM12F5PUR R5 - Single-Ended Cordsets

Regular price $42.23 NZD
Regular price Sale price $42.23 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

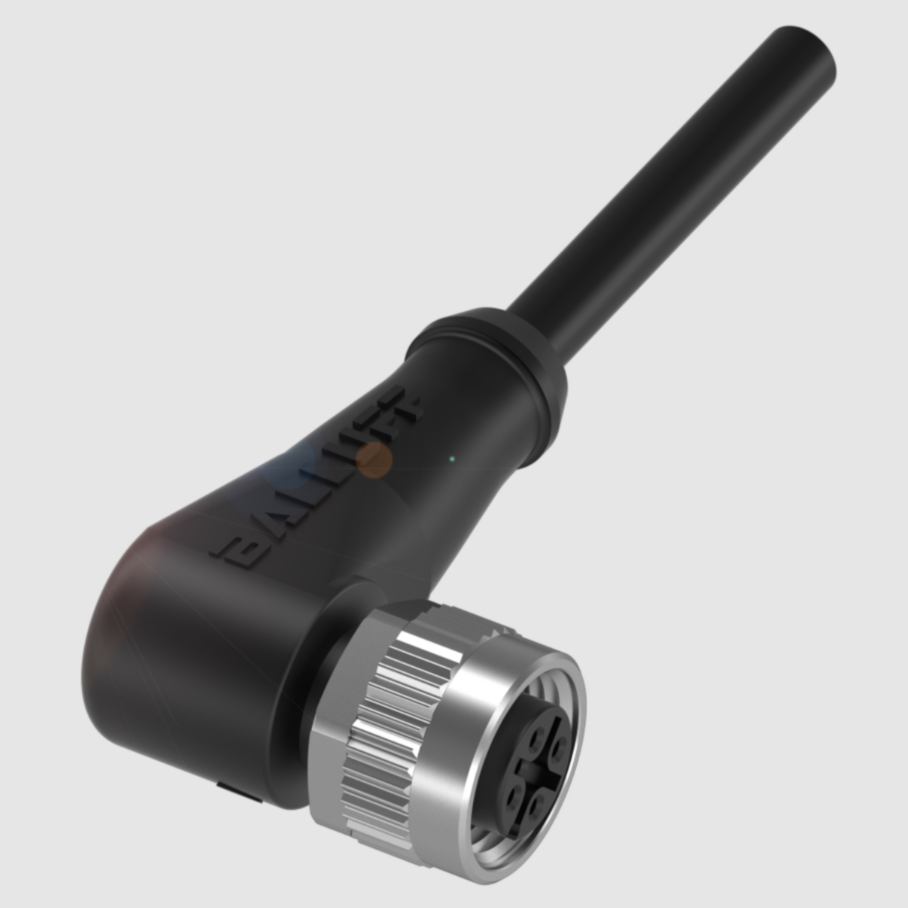

Single-Ended Cordset

M12 -Female, angled, 5-pin, A-coded, PUR black, 5 m, drag chain compatible.

Details: STM12F5PUR R5

When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.

Connection

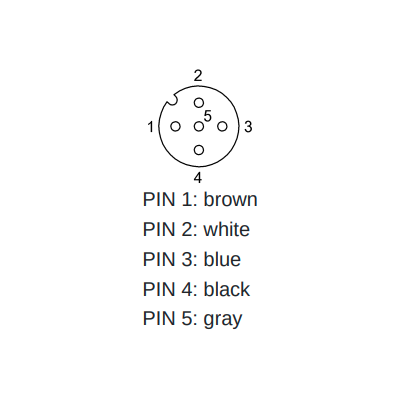

M12x1-Female, angled, 5-pin, A-coded
Switching output Complementary
Cable
PUR black, 5 m, drag chain compatible
Number of conductors 5
Conductor cross-section 0.34 mm²
Cable temperature, fixed routing -50...90 °C
Cable temperature, flexible routing -25...90 °C
Operating voltage Ub
60 VDC / 60 VAC
Rated current (40 °C)4.0 A
IP rating
IP67, IP68, IP69K
Approval/Conformity
CE cULus WEEE



Compatible Part Numbers:

STM12F5PUR R5

BCC08FC

Typecode / BCC M425-0000-1A-017-PX0534-050

PF 021241

V15-W-5M-PUR

BCC032Z

Technical Data Sheet:


7 in stock
