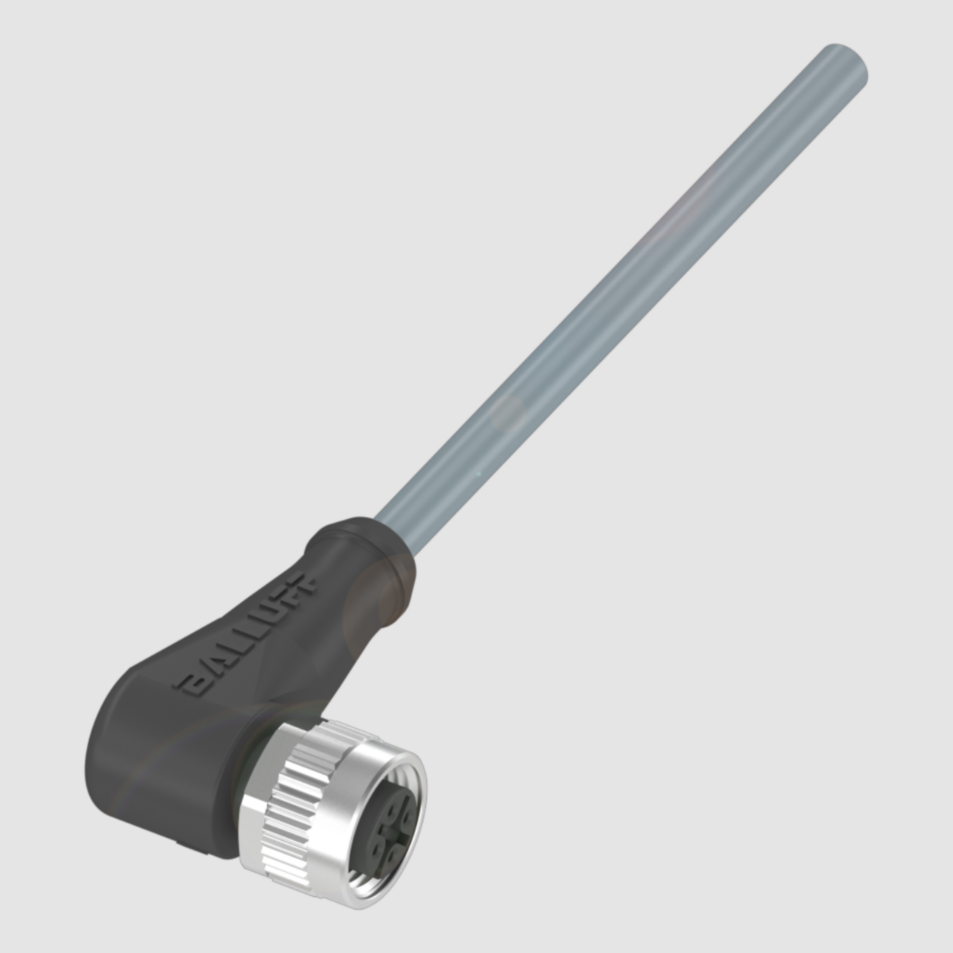

Single-Ended Cordset
M12x1-Female, angled, 5-pin, A-coded, PVC gray, 5 m, drag chain compatible.
Details: STM12F5PVC R5
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection |

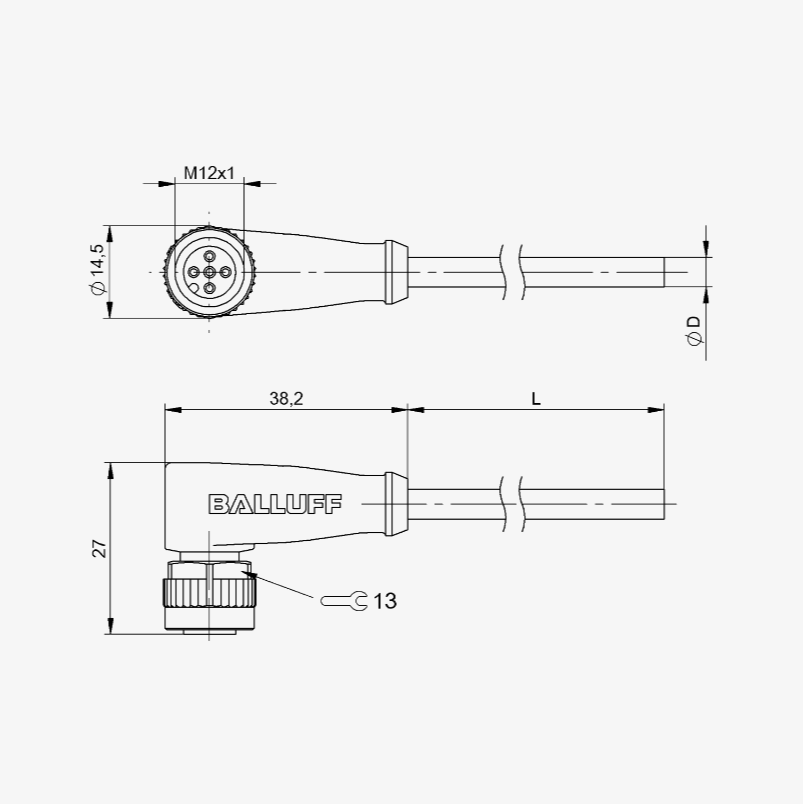

M12x1-Female, angled, 5-pin, A-coded
|
| Switching output | Complementary |
| Cable |
PVC gray, 5 m, drag chain compatible
|
| Number of conductors | 5 |
| Conductor cross-section | 0.34 mm² |
| Cable temperature, fixed routing | -40...105 °C |
| Cable temperature, flexible routing | -5...105 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current | (40 °C)4.0 A |
| IP rating |
IP67, IP68, IP69K
|
| Approval/Conformity |
CE cULus WEEE
|
Compatible Part Numbers:
STM12F5PVC R5
BCC0AT7
Typecode / BCC M425-0000-1A-017-VX8534-050
R 1330951
V15-W-5M-PVC
PF 109482
Technical Data Sheet:
