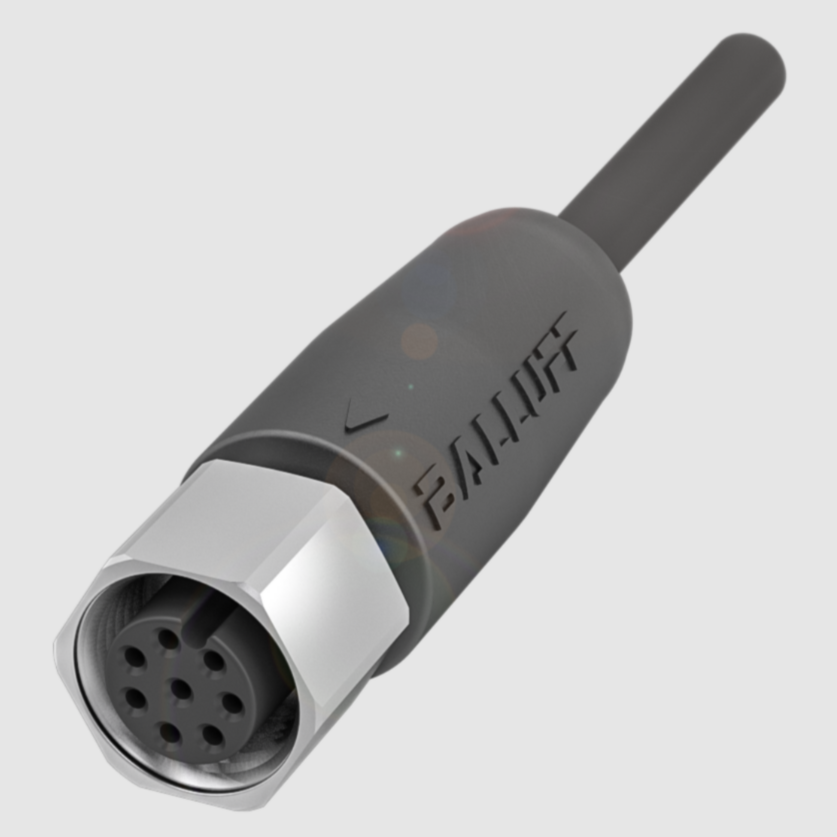

Single-Ended Cordset
M12-Female, straight, 8-pin, A-coded, PVC gray, 10 m, drag chain compatible.
Details: STM12F8PVC S10
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Special characteristics | Washdown |
| Connection |
M12x1-Female, straight, 8-pin, A-coded
|
| Switching output | Complementary |
| Cable |
PVC gray, 10 m, drag chain compatible
|
| Number of conductors | 8 |
| Conductor cross-section | 0.25 mm² |
| Cable temperature, fixed routing | -40...105 °C |
| Cable temperature, flexible routing | -5...105 °C |
| Operating voltage Ub |
30 VDC / 30 VAC
|
| Rated current | (40 °C)2.0 A |
| IP rating |
IP67, IP68, IP69K
|
| Approval/Conformity |
CE cULus Ecolab WEEE
|
Compatible Part Numbers:
STM12F8PVC S10
BCC0H3L
Typecode / BCC S418-0000-1A-069-VX8825-100
Technical Data Sheet:
2 in stock
