B04NPN (NO)
STM12INDNO0008M12P4 - M12 NPN (NO) - Inductive Sensor
STM12INDNO0008M12P4 - M12 NPN (NO) - Inductive Sensor
Regular price
$65.50 NZD
Regular price
Sale price
$65.50 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Standard Sensor
M12 NPN (NO) M12 Unsheilded Sn:8mm.
Compatible Part Numbers:
STM12INDNO0008M12P4
BES01PT
Typecode / BES M12MD-NSC80F-S04G
Technical Data Of: BES01PT
| Dimension | Ø 12 x 50 mm |
| Style Housing | M12x1 |
| Installation | non-flush |
| Range | 8 mm |
| Switching output | NPN normally open (NO) |
| Switching frequency | 800 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |

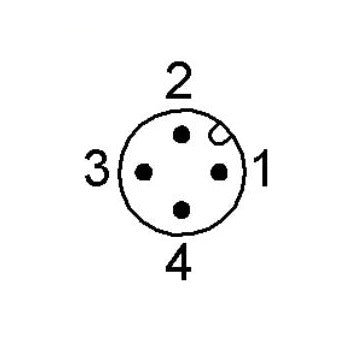

| Connection | Connector, M12x1-Male, 4-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP68 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
1 in stock
