STM12MM12F5PVC S10 - Double-Ended Cordsets

STM12MM12F5PVC S10 - Double-Ended Cordsets

Regular price $84.47 NZD
Regular price Sale price $84.47 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

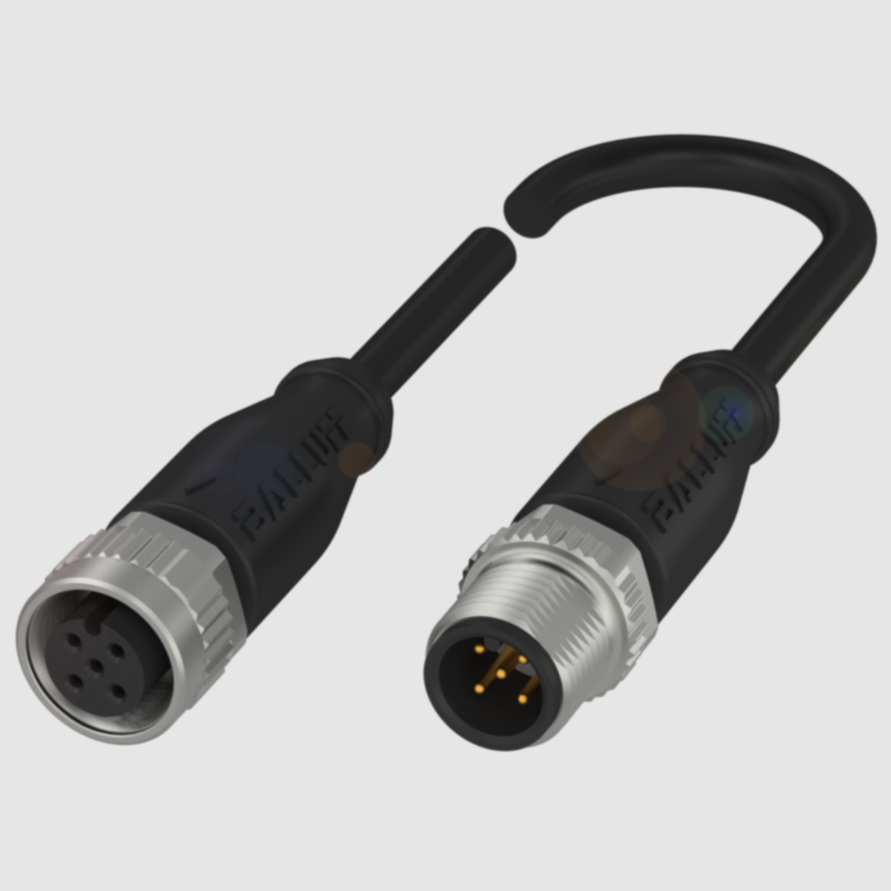

Double-Ended Cordset

M12x1-Female, straight, 5-pin, A-coded, M12x1-Male, straight, 5-pin, A-coded, PUR black, 10 m, drag chain compatible.

Details: STM12MM12F5PVC S10

When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.

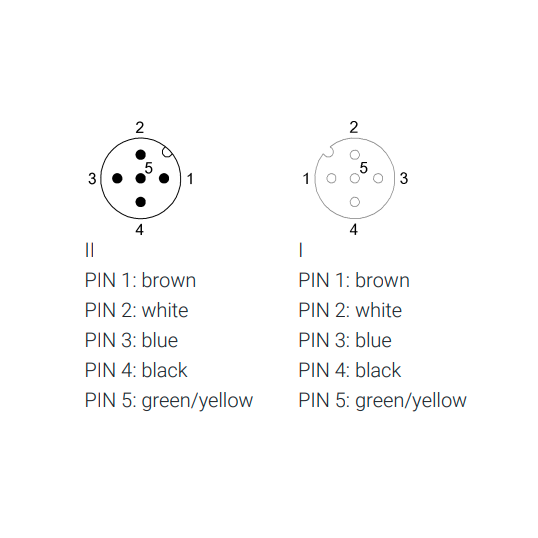

Connection 1
M12x1-Female, straight, 5-pin, A-coded
Connection 2
M12x1-Male, straight, 5-pin, A-coded
PUR black, 10 m, drag chain compatible
Number of conductors 5
Cable temperature, fixed routing -50...90 °C
Cable temperature, flexible routing -25...90 °C
Operating voltage Ub
60 VDC / 60 VAC
Rated current (40 °C)4.0 A
IP rating
IP67, IP68, IP69K/IP67, IP68, IP69K
Approval/Conformity CE WEEE

Compatible Part Numbers:


Typecode / BCC M415-M415-3A-313-PX0534-100

Technical Data Sheet:

1 in stock

View full details
