C22
STM12MM8F3PUR S1 - Double-Ended Cordsets
STM12MM8F3PUR S1 - Double-Ended Cordsets
Regular price
$29.66 NZD
Regular price
Sale price
$29.66 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

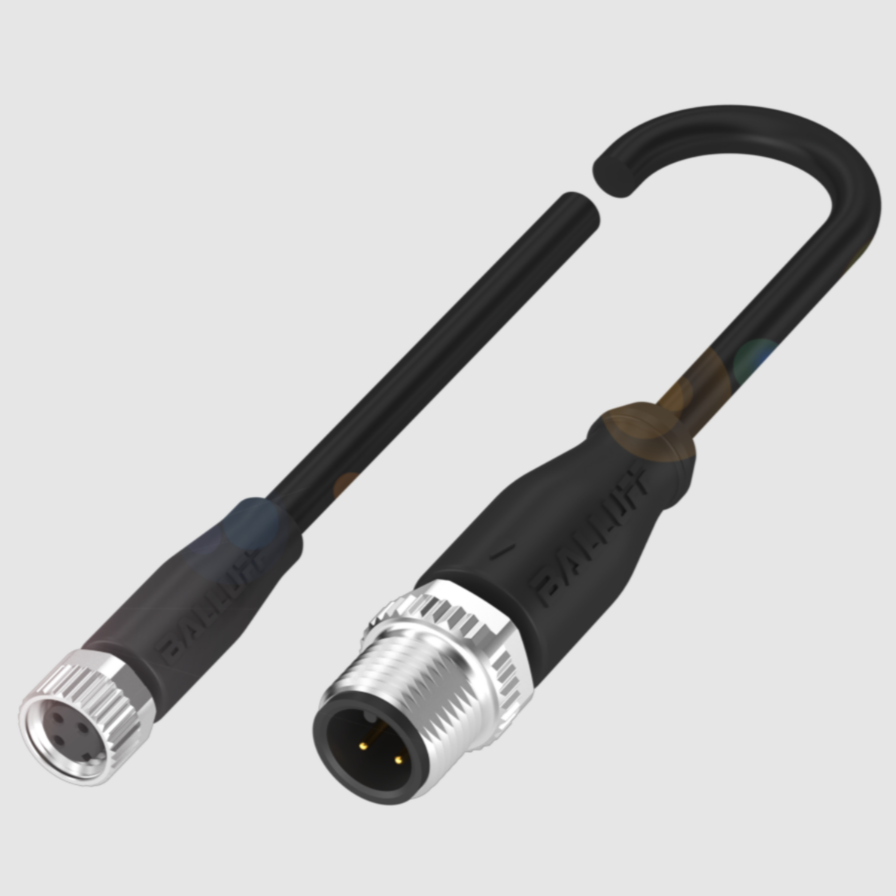

Double-Ended Cordset
M8 -Female, straight, 3-pin, A-coded, M12 -Male, straight, 3-pin, A-coded, PUR black, 1 m, drag chain compatible.
Details: STM12MM8F3PUR S1
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection 1 |
M8x1-Female, straight, 3-pin, A-coded
|
| Connection 2 |
M12x1-Male, straight, 3-pin, A-coded
|
| Cable |
PUR black, 1 m, drag chain compatible
|
| Number of conductors | 3 |
| Cable temperature, fixed routing | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current | (40 °C)4.0 A |
| IP rating |
IP67, IP69K/IP67, IP68, IP69K
|
| Approval/Conformity | CE cULus WEEE |
Compatible Part Numbers:
STM12MM8F3PUR S1
BCC03F6
Typecode / BCC M313-M413-3E-300-PX0334-010
Technical Data Sheet:
2 in stock
