C26

STM12MM8F4PUR S1 - Double-Ended Cordsets

STM12MM8F4PUR S1 - Double-Ended Cordsets

Regular price $33.09 NZD
Regular price Sale price $33.09 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

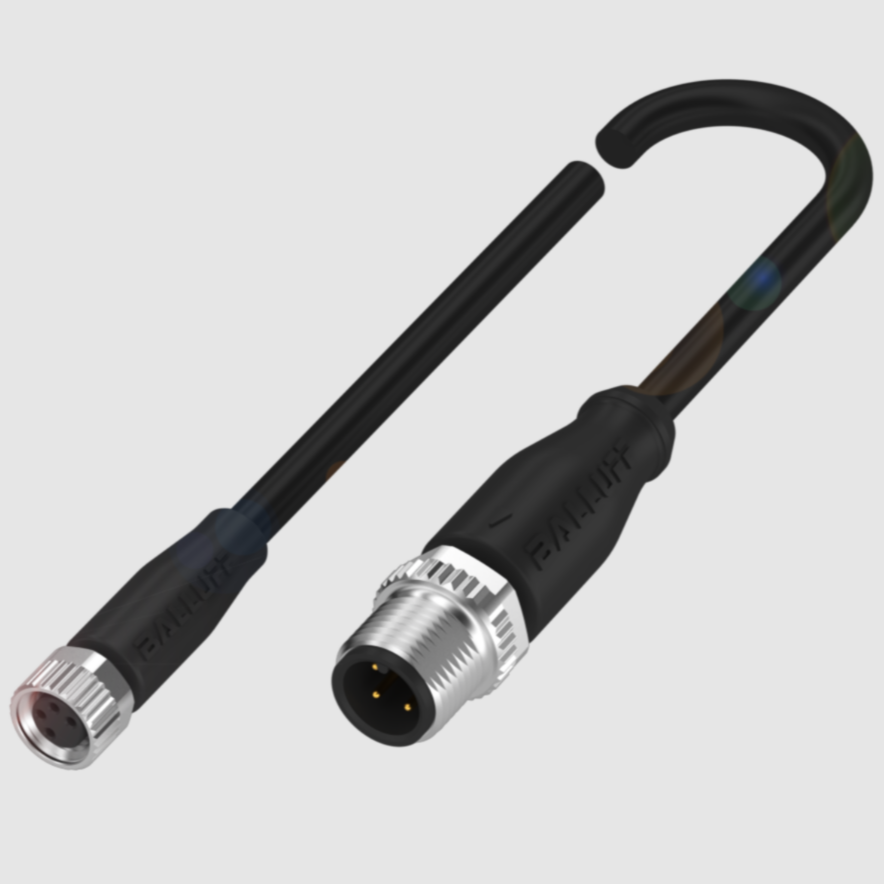

Double-Ended Cordset

M8 -Female, straight, 4-pin, A-coded, M12 -Male, straight, 4-pin, A-coded, PUR black, 1 m, drag chain compatible.

Details: STM12MM8F4PUR S1

When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.

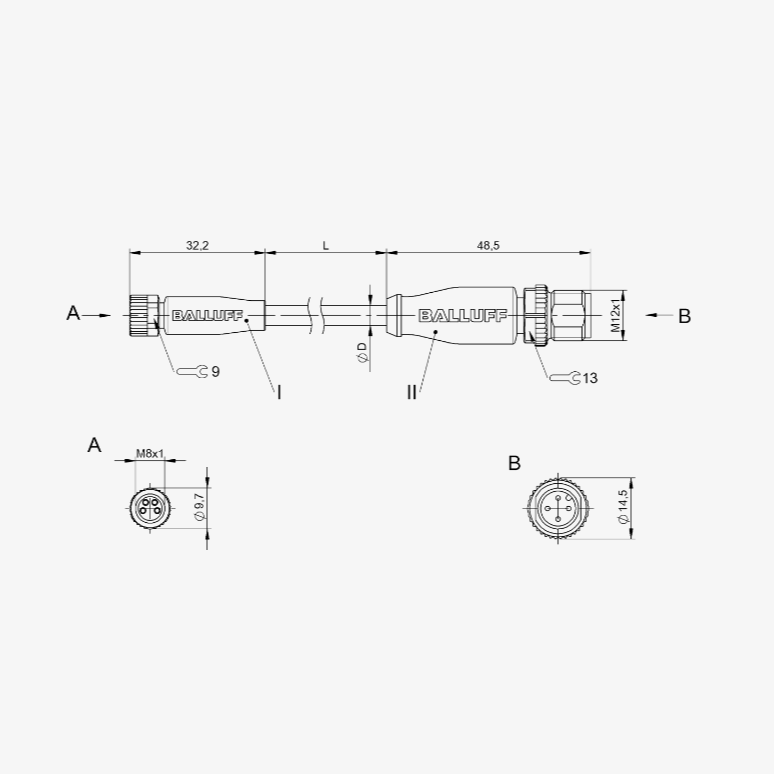

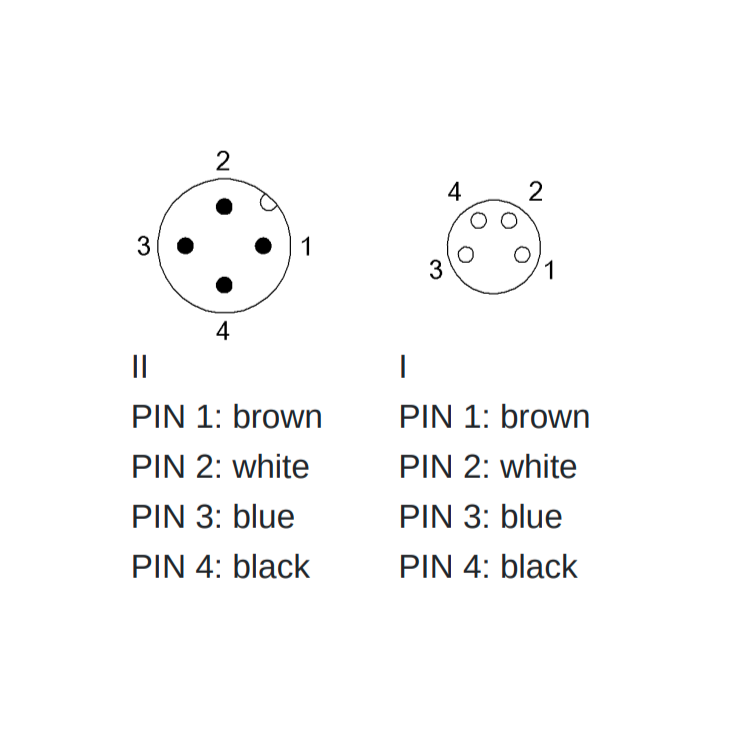

Connection 1
M8x1-Female, straight, 4-pin, A-coded
Connection 2
M12x1-Male, straight, 4-pin, A-coded
Cable
PUR black, 1 m, drag chain compatible
Number of conductors 4
Cable temperature, fixed routing -50...90 °C
Cable temperature, flexible routing -25...90 °C
Operating voltage Ub
60 VDC / 60 VAC
Rated current (40 °C)4.0 A
IP rating
IP67, IP69K/IP67, IP68, IP69K
Approval/Conformity CE cULus WEEE



Compatible Part Numbers:

STM12MM8F4PUR S1

BCC03JT

Typecode / BCC M314-M414-3E-304-PX0434-010

Technical Data Sheet:



5 in stock
