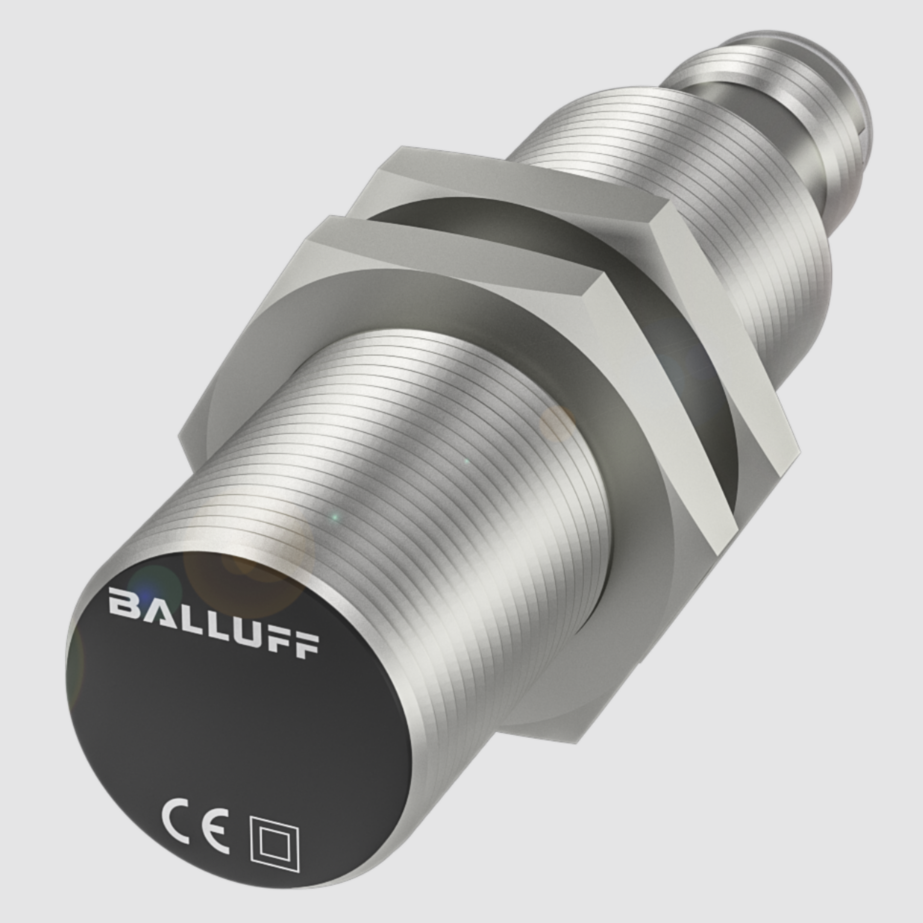

Balluff - M18 PNP (NC) - Inductive Sensor BES03RP
Balluff - M18 PNP (NC) - Inductive Sensor BES03RP
Regular price
$95.54 NZD
Regular price
Sale price
$95.54 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Inductive Standard Sensor
M18 PNP (NC) M12 3pin Sheilded Sn: 8mm
Compatible Part Numbers:
BES03RP
Typecode / BES M18MI-POC80B-S04G
STM18INDPC0008M12P4
Technical Data Of: STM18INDPC0008M12P4
| Dimension | Ø 18 x 66 mm |
| Style Housing | M18x1 |
| Installation | for flush mounting |
| Range | 8 mm |

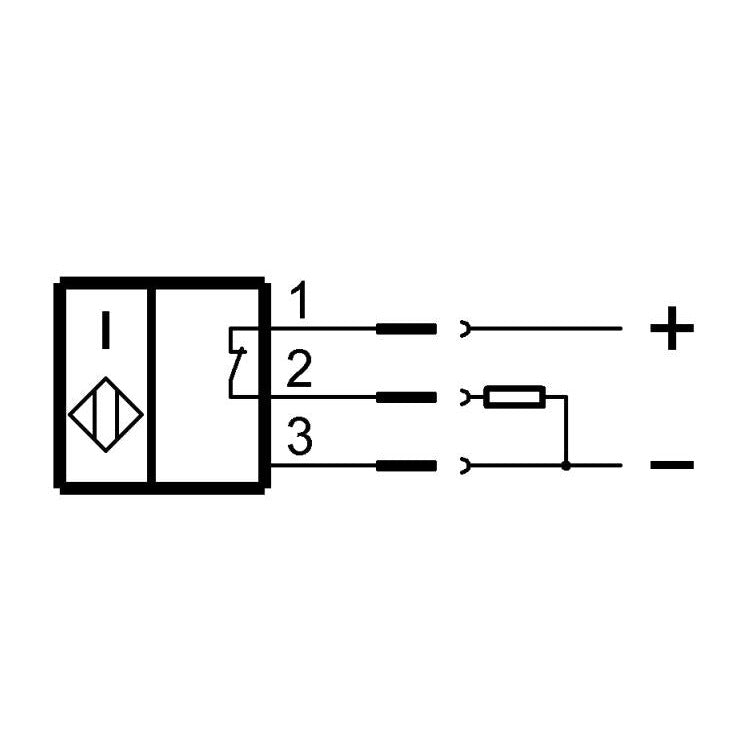

| Switching output | PNP normally closed (NC) |
| Switching frequency | 1300 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |

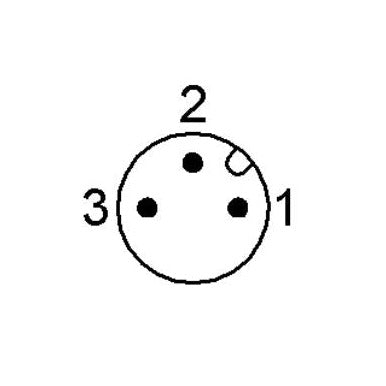

| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -40...85 °C |
| IP rating | IP68 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
4 in stock
