STM18INDPO0012M12P4 - M18 PNP (NO) - Inductive Sensor
STM18INDPO0012M12P4 - M18 PNP (NO) - Inductive Sensor
Regular price
$166.45 NZD
Regular price
Sale price
$166.45 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

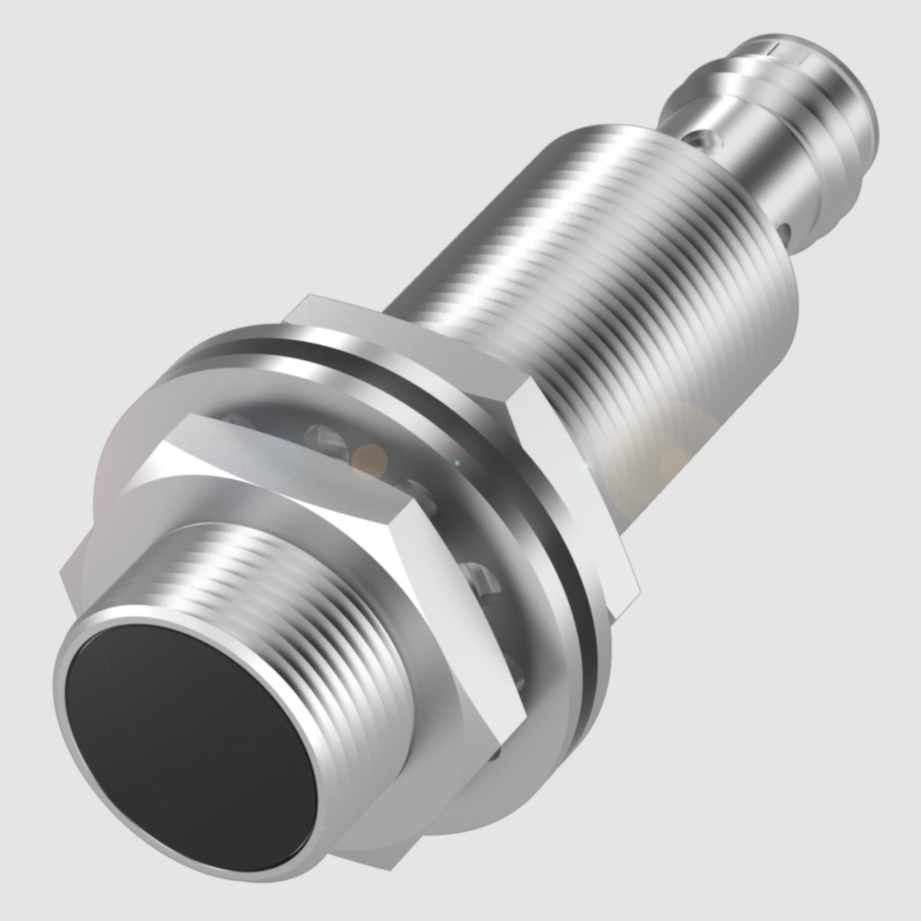

Inductive Standard Sensor
M18 PNP (NO) M12 Sheilded Sn:12mm.
Compatible Part Numbers:
BES05EU
Typecode / BES M18MI-PSC12B-S04G
STM18INDPO0012M12P4
Technical Data Of: STM18INDPO0012M12P4
| Dimension | Ø 18 x 66 mm |
| Style Housing | M18x1 |
| Range | 12 mm |

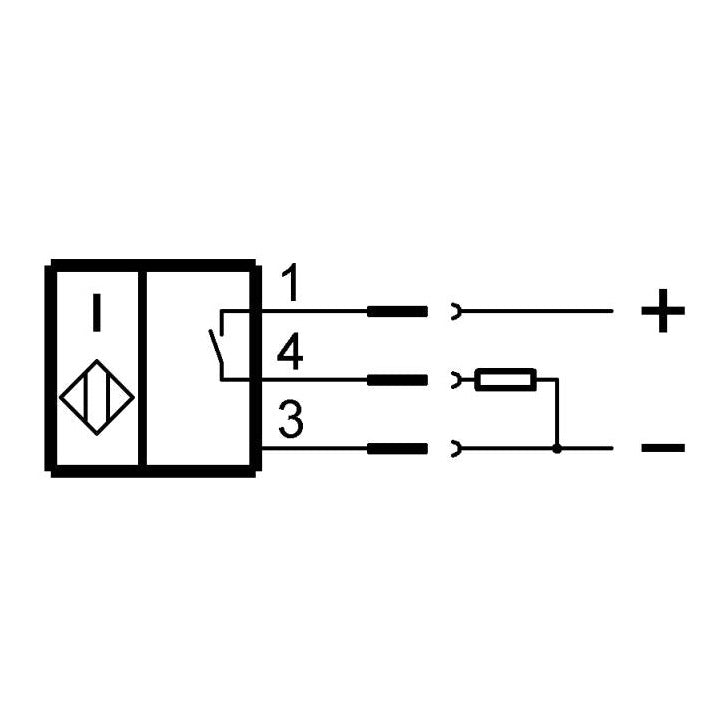

| Switching output | PNP normally open (NO) |
| Switching frequency | 550 Hz |
| Housing material | Brass, Nickel-free coated |
| Material sensing surface | PBT |

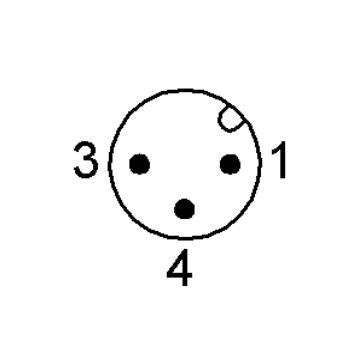

| Connection | Connector, M12x1-Male, 3-pin |
| Operating voltage Ub | 10...30 VDC |
| Ambient temperature | -25...70 °C |
| IP rating | IP68, according to BWN Pr 20 |
| Approval/Conformity | CE |
| UKCA | |
| cULus | |
| WEEE |
Technical Data Sheet:
1 in stock
