C01

STM8F3PVC S5 - Single-Ended Cordsets

STM8F3PVC S5 - Single-Ended Cordsets

Regular price $22.84 NZD
Regular price Sale price $22.84 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

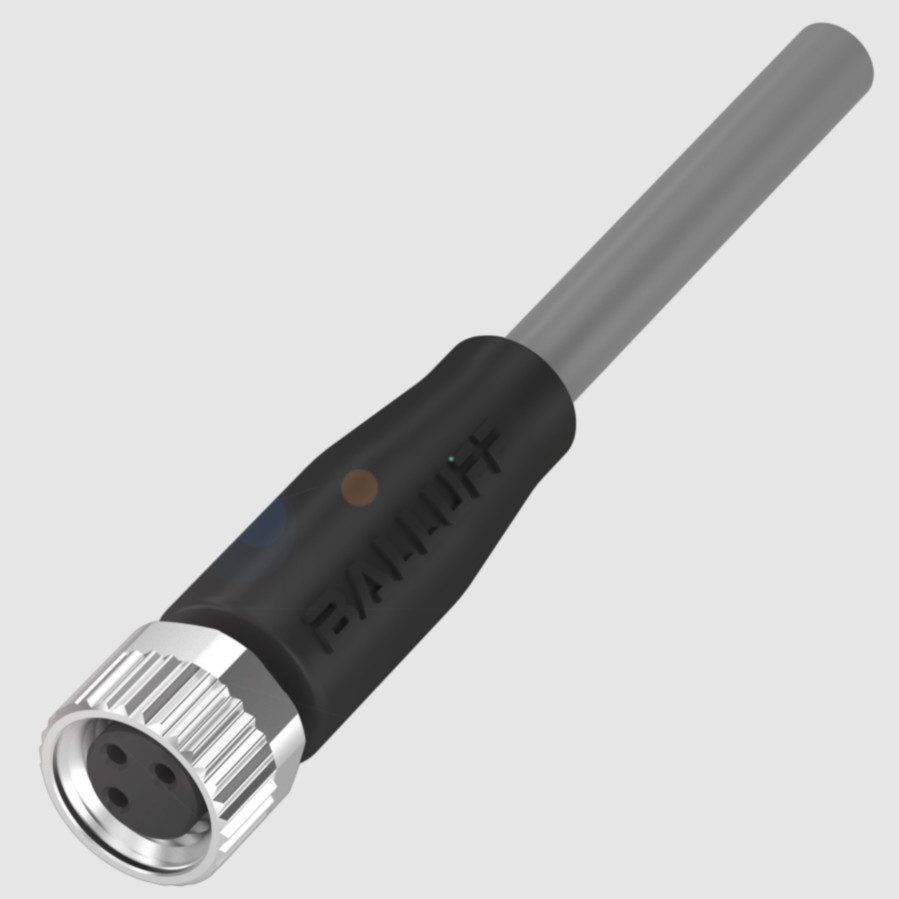

Single-Ended Cordset

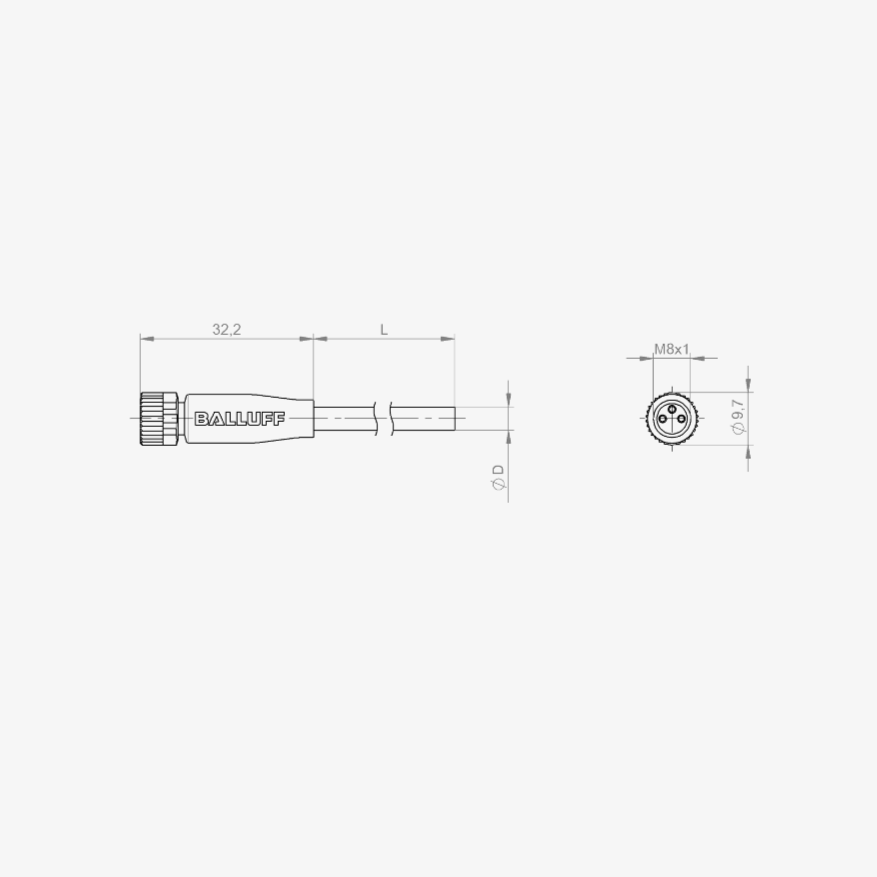

M8 - Female, straight, 3-pin, A-coded, PVC gray, 5 m, drag chain compatible.

Details: STM8F3PVC S5

When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.

Connection

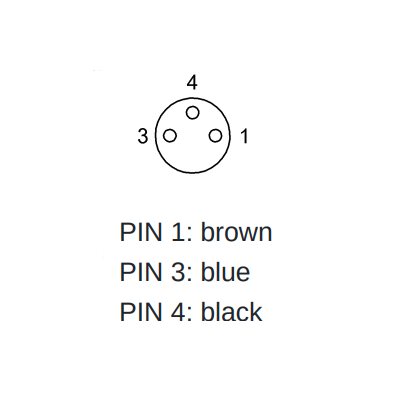

M8x1-Female, straight, 3-pin, A-coded
Cable
PVC gray, 5 m, drag chain compatible
Number of conductors 3
Conductor cross-section 0.34 mm²
Cable temperature, fixed routing -40...105 °C
Cable temperature, flexible routing -5...105 °C
Operating voltage Ub
60 VDC / 60 VAC
Rated current (40 °C)4.0 A
IP rating IP67, IP69K
Approval/Conformity CE cULus WEEE

Compatible Part Numbers:

STM8F3PVC S5

BCC02NW

Typecode / BCC M313-0000-10-001-VX8334-050

R 1200217

PF 109023

V3-GM-5M-PVC

Technical Data Sheet:
