Single-Ended Cordset

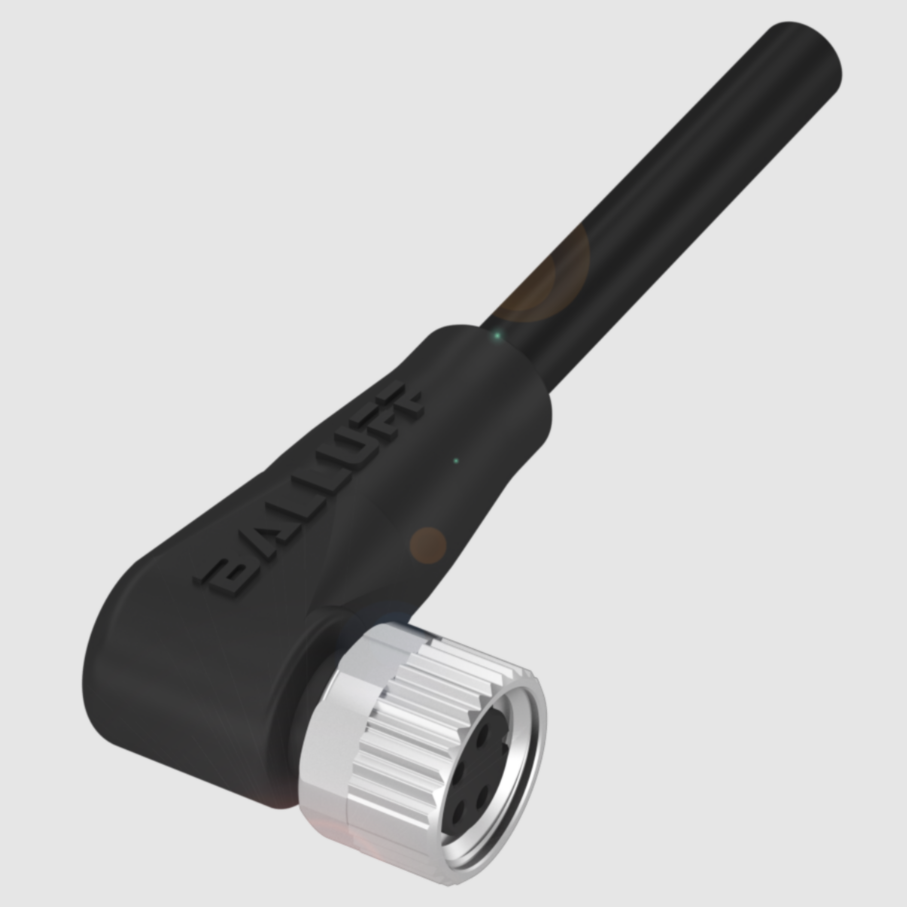

M8 - Female, angled, 4-pin, A-coded, PUR black, 5 m, drag chain compatible.
Details: STM8F4PUR R5
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection |

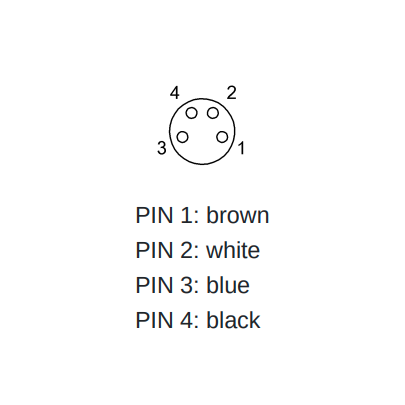

M8x1-Female, angled, 4-pin, A-coded
|
| Switching output | Complementary |
| Cable |
PUR black, 5 m, drag chain compatible
|
| Number of conductors | 4 |
| Conductor cross-section | 0.34 mm² |
| Cable temperature, fixed routing | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current | (40 °C)4.0 A |
| IP rating | IP67, IP69K |
| Approval/Conformity |
CE cULus WEEE
|
Compatible Part Numbers:
STM8F4PUR R5
BCC02NE
Typecode / BCC M324-0000-10-003-PX0434-050
