STM8F4PUR S5 - Single-Ended Cordsets
STM8F4PUR S5 - Single-Ended Cordsets
Regular price
$33.81 NZD
Regular price
Sale price
$33.81 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

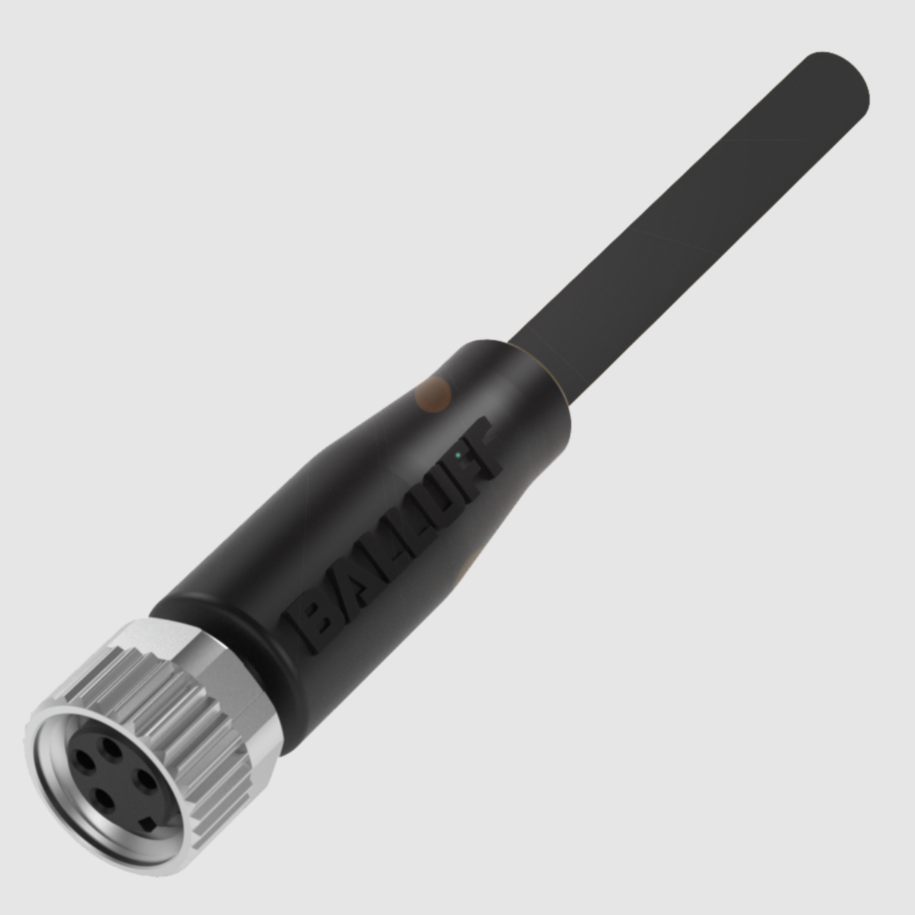

Single-Ended Cordset
M8 - Female, straight, 4-pin, A-coded, PUR black, 5 m, drag chain compatible.
Details: STM8F4PUR S5
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection |

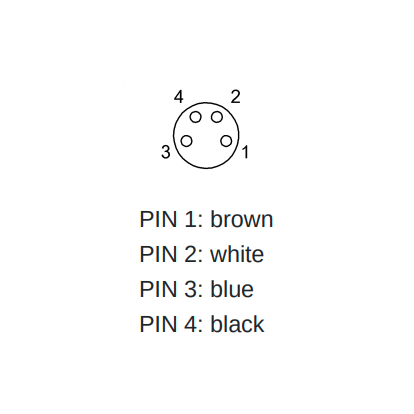

M8x1-Female, straight, 4-pin, A-coded
|
| Cable |
PUR black, 5 m, drag chain compatible
|
| Number of conductors | 4 |
| Conductor cross-section | 0.34 mm² |
| Cable temperature, fixed routing | -50...90 °C |
| Cable temperature, flexible routing | -25...90 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current | (40 °C)4.0 A |
| IP rating | IP67, IP69K |
| Approval/Conformity | CE cULus WEEE |
Compatible Part Numbers:
STM8F4PUR S5
BCC02N3
Typecode / BCC M314-0000-10-003-PX0434-050
Technical Data Sheet:
4 in stock
