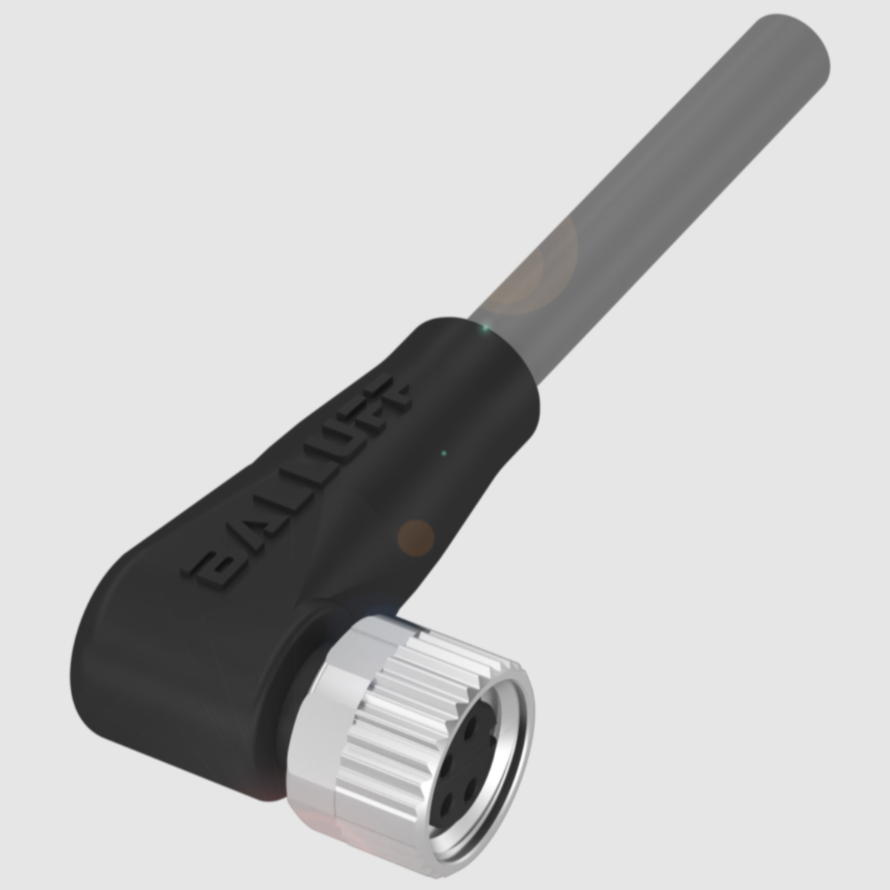

Single-Ended Cordset
M8 - Female, angled, 4-pin, A-coded, PVC gray, 5 m, drag chain compatible.
Details: STM8F4PVC R5
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Connection |
M8x1-Female, angled, 4-pin, A-coded
|
| Cable |
PVC gray, 5 m, drag chain compatible
|
| Number of conductors | 4 |
| Conductor cross-section | 0.34 mm² |
| Cable temperature, fixed routing | -40...105 °C |
| Cable temperature, flexible routing | -5...105 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current | (40 °C)4.0 A |
| IP rating | IP67, IP69K |
| Approval/Conformity | CE cULus WEEE |
Compatible Part Numbers:
STM8F4PVC R5
BCC02R0
Typecode / BCC M324-0000-10-003-VX8434-050
Technical Data Sheet:
