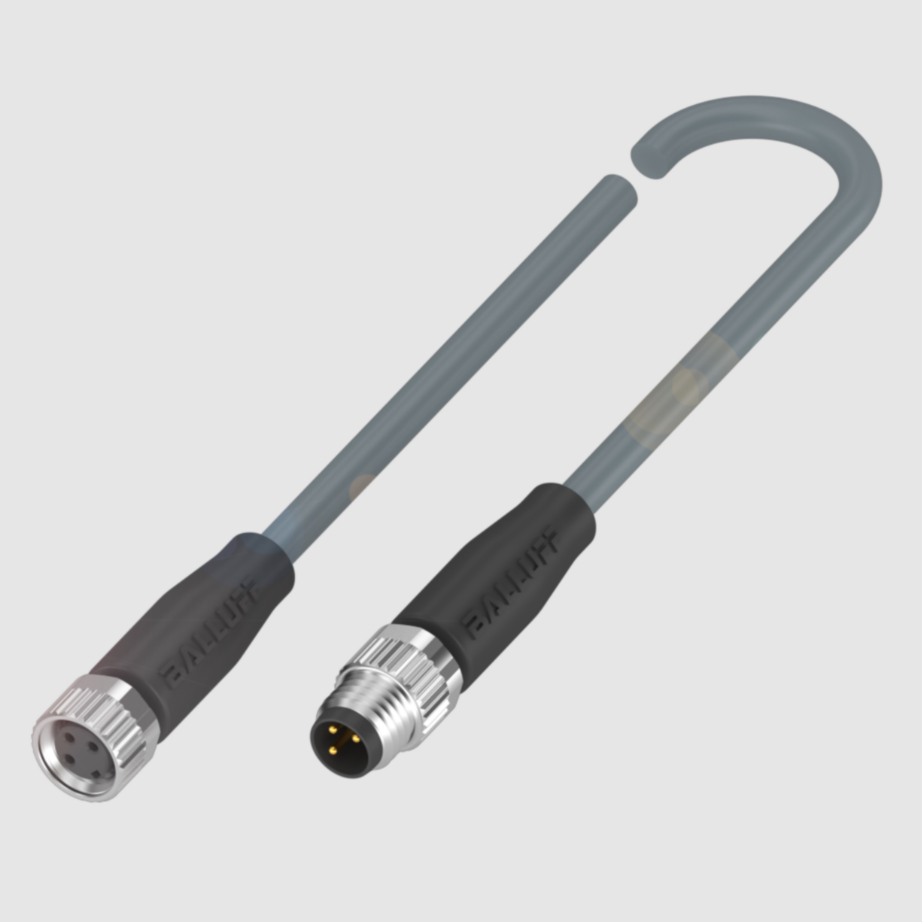

Double-Ended Cordset

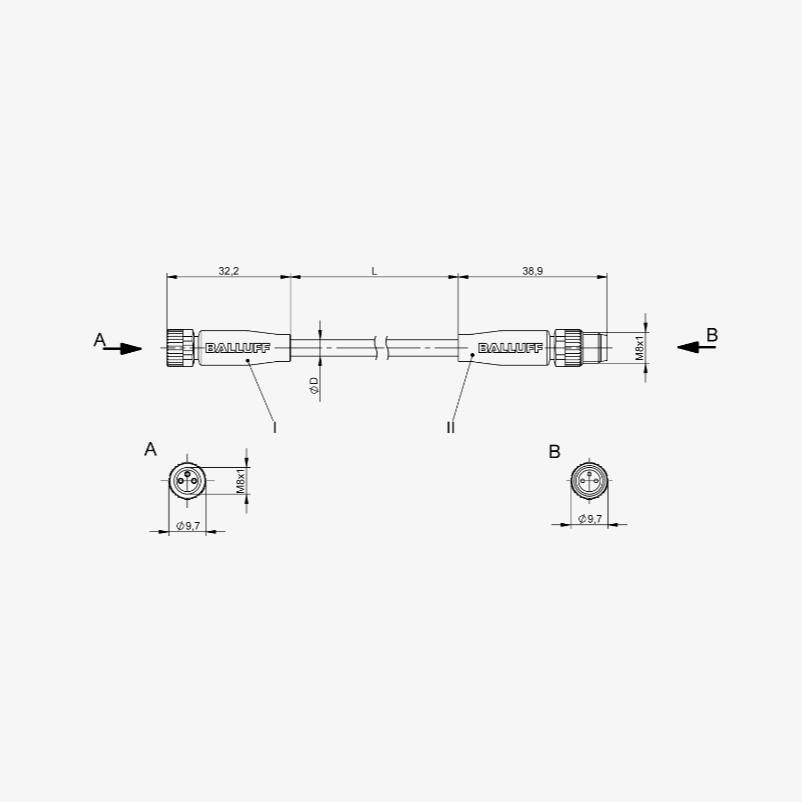

M8 -Female, straight, 3-pin, A-coded, M8 -Male, straight, 3-pin, A-coded, PVC gray, 5 m, drag chain compatible.
Details: STM8MM8F3PVC S5
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.

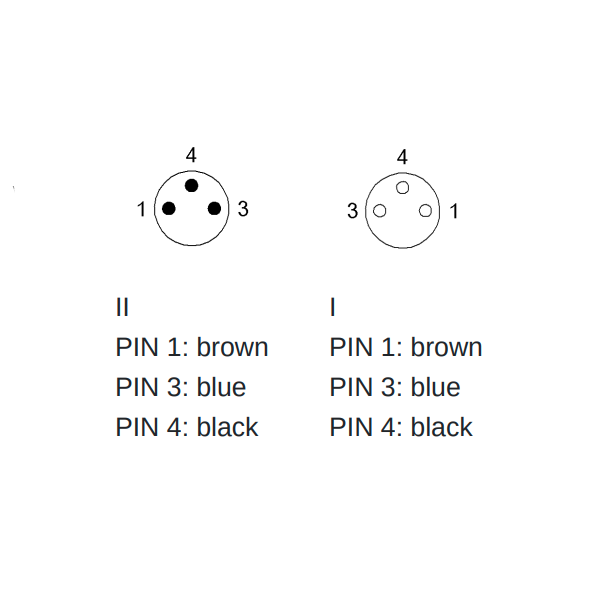

| Connection 1 |
M8x1-Female, straight, 3-pin, A-coded
|
| Connection 2 |
M8x1-Male, straight, 3-pin, A-coded
|
| Cable |
PVC gray, 5 m, drag chain compatible
|
| Number of conductors | 3 |
| Cable temperature, fixed routing | -40...105 °C |
| Cable temperature, flexible routing | 5...105 °C |
| Operating voltage Ub |
60 VDC / 60 VAC
|
| Rated current | (40 °C)4.0 A |
| IP rating |
IP67, IP69K/IP67, IP69K
|
| Approval/Conformity | CE cULus WEEE |
Compatible Part Numbers:
STM8MM8F3PVC S5
BCC02W0
Typecode / BCC M313-M313-30-300-VX8334-050
Technical Data Sheet:
