STM8MM8F4PUR S5 - Double-Ended Cordsets

STM8MM8F4PUR S5 - Double-Ended Cordsets

Regular price $40.52 NZD
Regular price Sale price $40.52 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

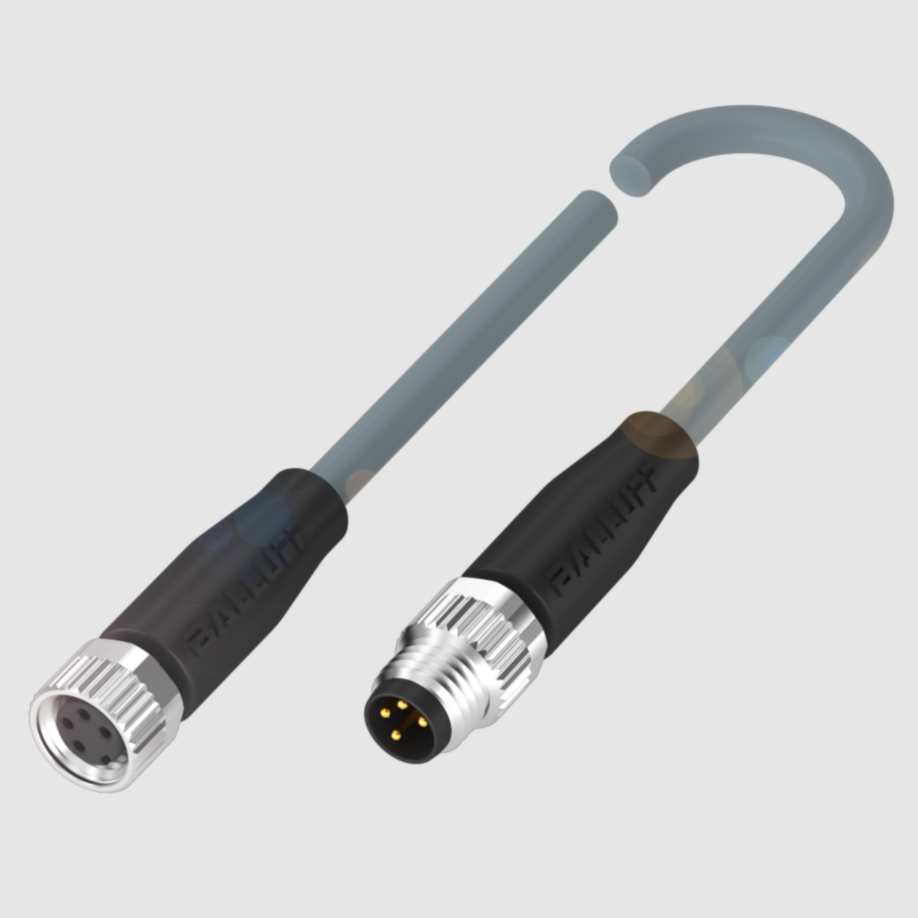

Double-Ended Cordset

M8-Female, straight, 4-pin, A-coded, M8-Male, straight, 4-pin, A-coded, PVC gray, 5 m,drag chain compatible.

Details: STM8MM8F4PUR S5

When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.

Connection 1

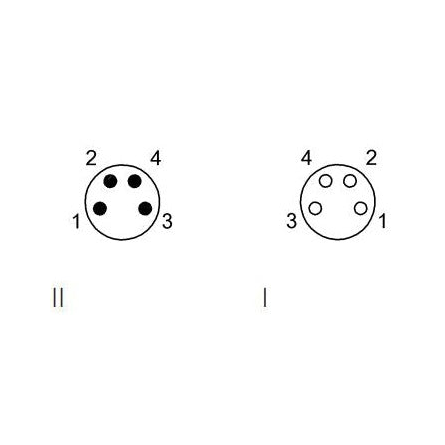

M8x1-Female, straight, 4-pin, A-coded
Connection 2
M8x1-Male, straight, 4-pin, A-coded
PVC gray, 5 m, drag chain compatible
Number of conductors 4
Cable temperature, fixed routing -40...105 °C
Cable temperature, flexible routing 5...105 °C
Operating voltage Ub
60 VDC / 60 VAC
Rated current (40 °C)4.0 A
IP rating
IP67, IP69K/IP67, IP69K

Compatible Part Numbers:


Typecode / BCC M314-M314-30-304-VX8434-050

Technical Data Sheet:
