STM8MM8F4PVC S1.5 - Double-Ended Cordsets
STM8MM8F4PVC S1.5 - Double-Ended Cordsets
Regular price
$42.05 NZD
Regular price
Sale price
$42.05 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Double-Ended Cordset

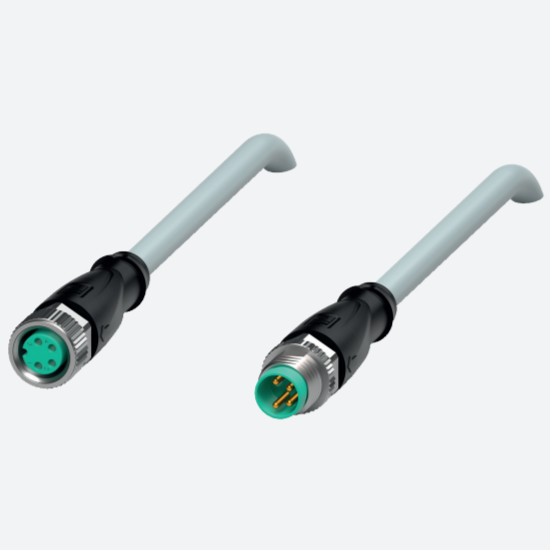

Cordset M8 socket straight to M8 plug straight A-coded, 4-pin, 1.5m PVC cable grey.
Details: STM8MM8F4PVC S1.5
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
Compatible Part Numbers:
STM8MM8F4PVC S1.5
PF 240813-0009
Typecode / V31-GM-1,5M-PVC-V31-GM
Technical Data Sheet:
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M8 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | plug | |
| Construction type | M8 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | max. 30 V AC/DC | |
| Operating current | max. 3 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Plug connector | -40 ... 90 °C (-40 ... 194 °F) | |
| Cable, fixed | -40 ... 70 °C (-40 ... 158 °F) | |
| Cable, flexing | -5 ... 70 °C (23 ... 158 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.4 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling and hexagon nut SW = 9 mm | |
| Mating cycles | min. 100 | |
| Degree of protection | IP68 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 5 | |
| Sheath diameter | 4.3 mm | |
| Bending radius | > 15 x cable diameter, moving > 10 x cable diameter, fixed |
|
| Sheath stripping force | max. 80 N / 300 mm | |
| Sheath color | grey (similar to RAL 7001) | |
| Number of cores | 4 | |
| Core cross section | 0.25 mm2 | |

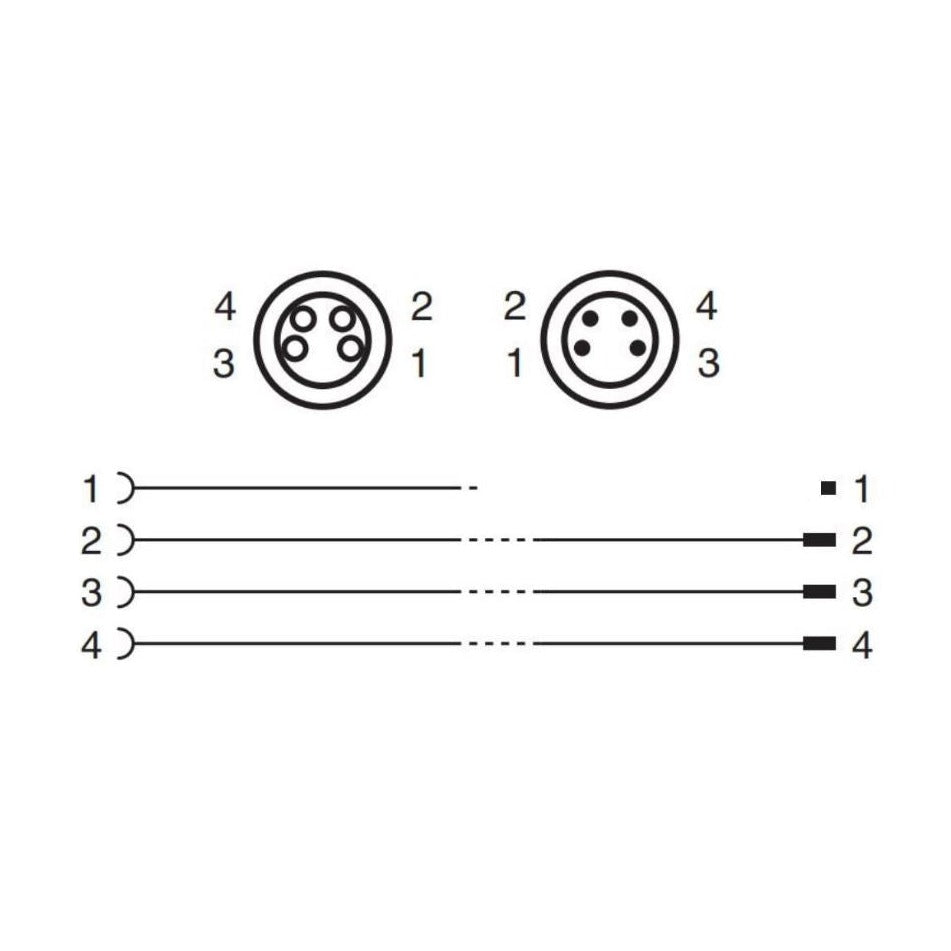

| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black |
|
| Core construction | 14 x 0.15 mm ∅ | |
| Length | 1.5 m | |
| Cable code | Li YY 4 x 0,25 | |
| Mass | 51 g | |
| Material | ||
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU, black | |
| Seal | FKM | |
| Contact surface | gold plated (Au) | |
| Flammability | V-2 | |
| Cable | ||
| Sheathing | PVC | |
| Core insulation | PVC | |
| Flammability | flame-resistant | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
