STM12F8PVC S10 - Single-Ended Cordsets
STM12F8PVC S10 - Single-Ended Cordsets
Regular price
$144.99 NZD
Regular price
Sale price
$144.99 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Single-Ended Cordset

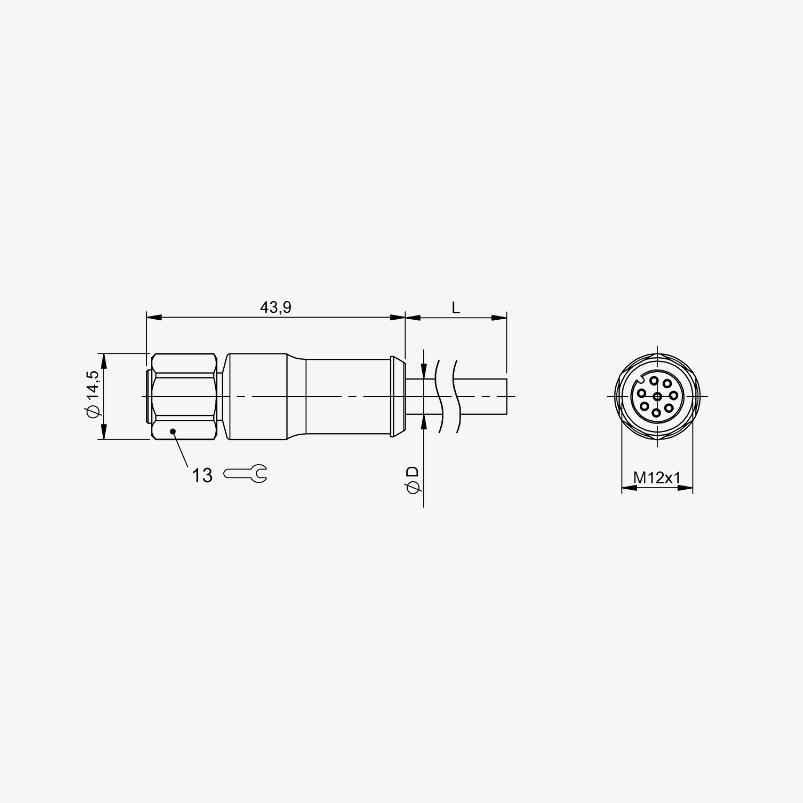

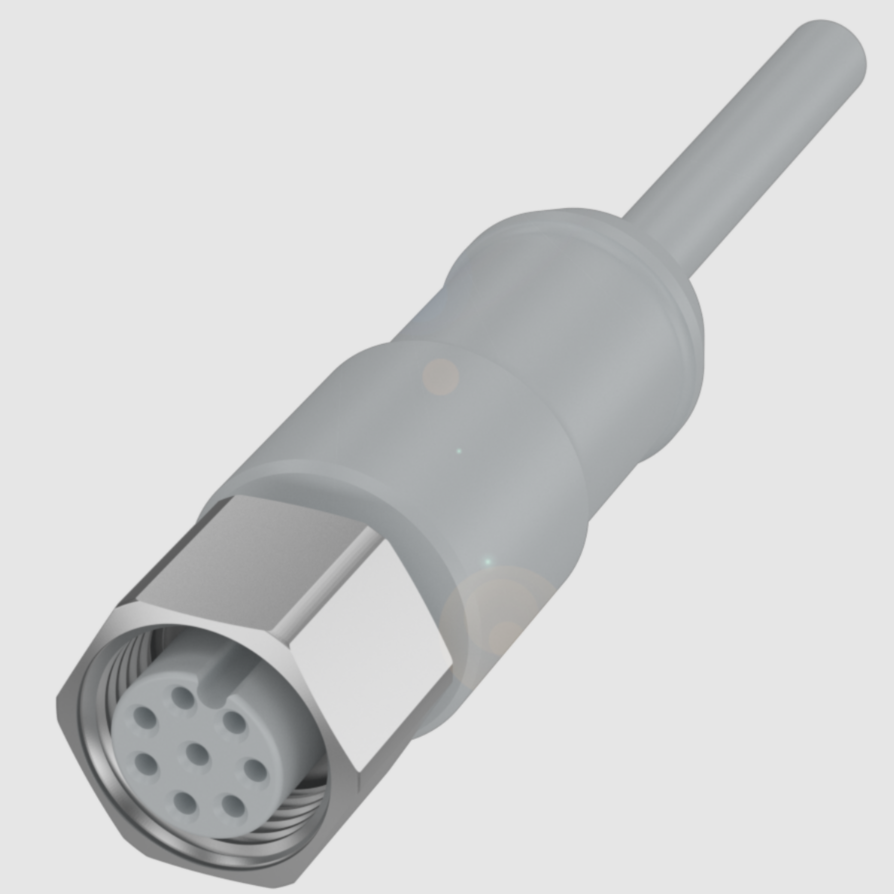

M12 -Female, straight, 8-pin, A-coded, TPE-V gray, 10 m.
Details:
STM12F8PVC S10
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.
| Special characteristics | Washdown |
| Connection |

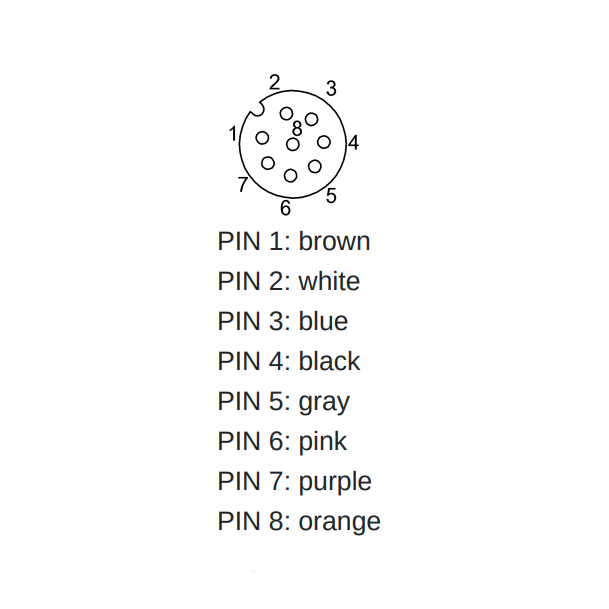

M12x1-Female, straight, 8-pin, A-coded
|
| Cable |
TPE-V gray, 10 m
|
| Number of conductors | 8 |
| Conductor cross-section | 0.25 mm² |
| Cable temperature, fixed routing | -50...105 °C |
| Cable temperature, flexible routing | -25...105 °C |
| Operating voltage Ub |
30 VDC / 30 VAC
|
| Rated current | (40 °C)2.0 A |
| IP rating | IP67, IP69K |
| Approval/Conformity | CE Ecolab WEEE |
Compatible Part Numbers:
STM12F8PVC S10
BCC0JW1
Typecode / BCC S4B8-0000-1A-045-YX8825-100-C009
Technical Data Sheet:
4 in stock
