STMM12MM8F4PUR S2.5 - Double-Ended Cordsets

STMM12MM8F4PUR S2.5 - Double-Ended Cordsets

Regular price $38.86 NZD
Regular price Sale price $38.86 NZD
Sale Sold out
Shipping calculated at checkout.

Price (exc. GST) each

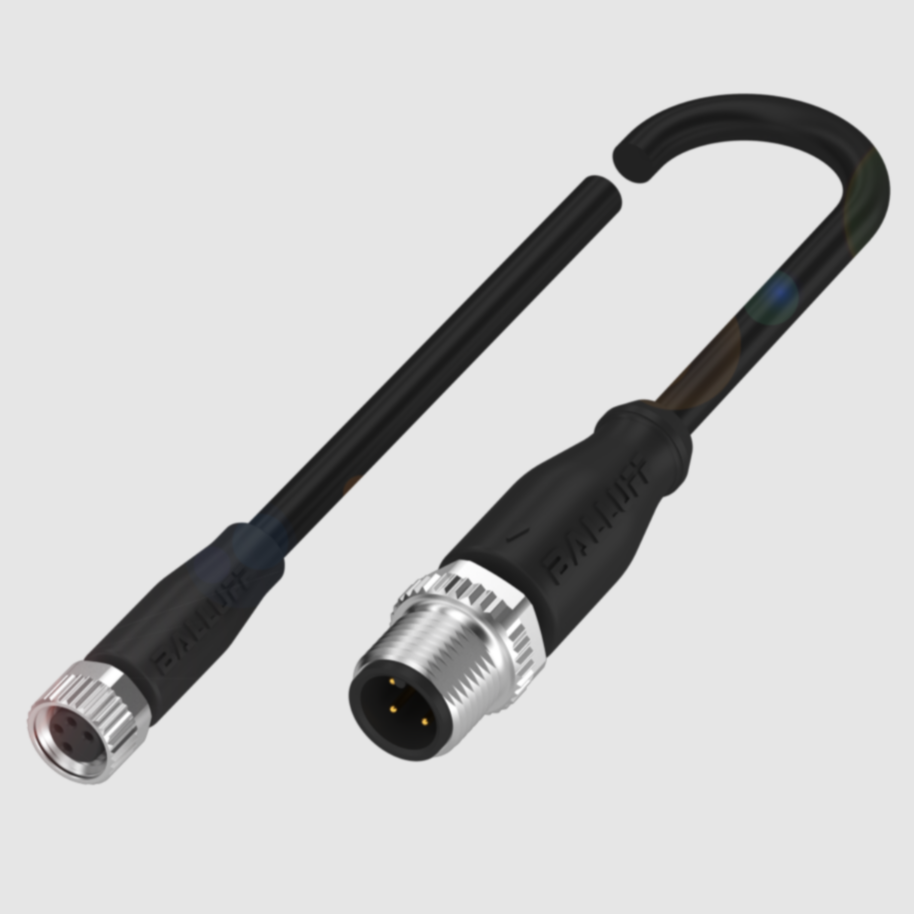

Double-Ended Cordset

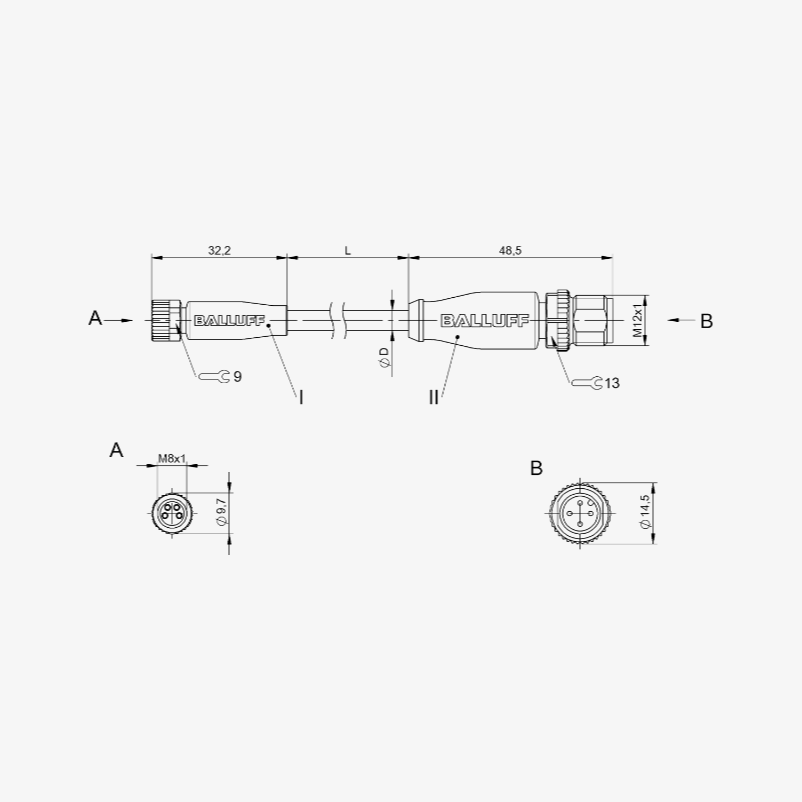

M8 -Female, straight, 4-pin, A-coded, M12 -Male, straight, 4-pin, A-coded, PUR black, 2.5 m, drag chain compatible.

Details: STMM12MM8F4PUR S2.5

When you purchase this item, you'll receive a high-quality cable from one of our listed brands, found under Compatible Part Numbers. Brands include Balluff, Reer, and PepperL Fuch. If you have a specific preference, please let us know, and we'll do our best to accommodate your request.

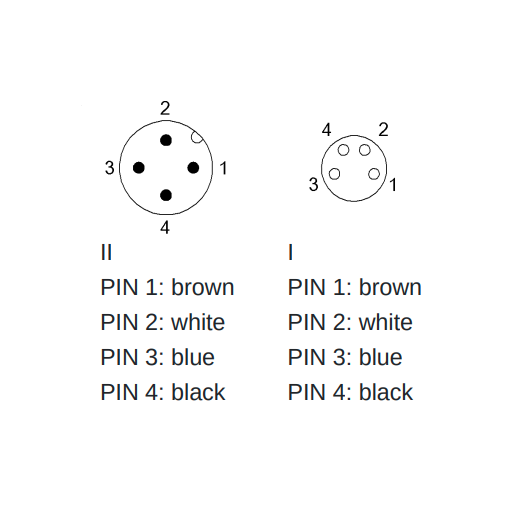

Connection 1
M8x1-Female, straight, 4-pin, A-coded
Connection 2
M12x1-Male, straight, 4-pin, A-coded
PUR black, 2.5 m, drag chain compatible
Number of conductors 4
Cable temperature, fixed routing -50...90 °C
Cable temperature, flexible routing -25...90 °C
Operating voltage Ub
60 VDC / 60 VAC
Rated current (40 °C)4.0 A
IP rating
IP67, IP69K/IP67, IP68, IP69K

Compatible Part Numbers:


Typecode / BCC M314-M414-3E-304-PX0434-025

Technical Data Sheet:
