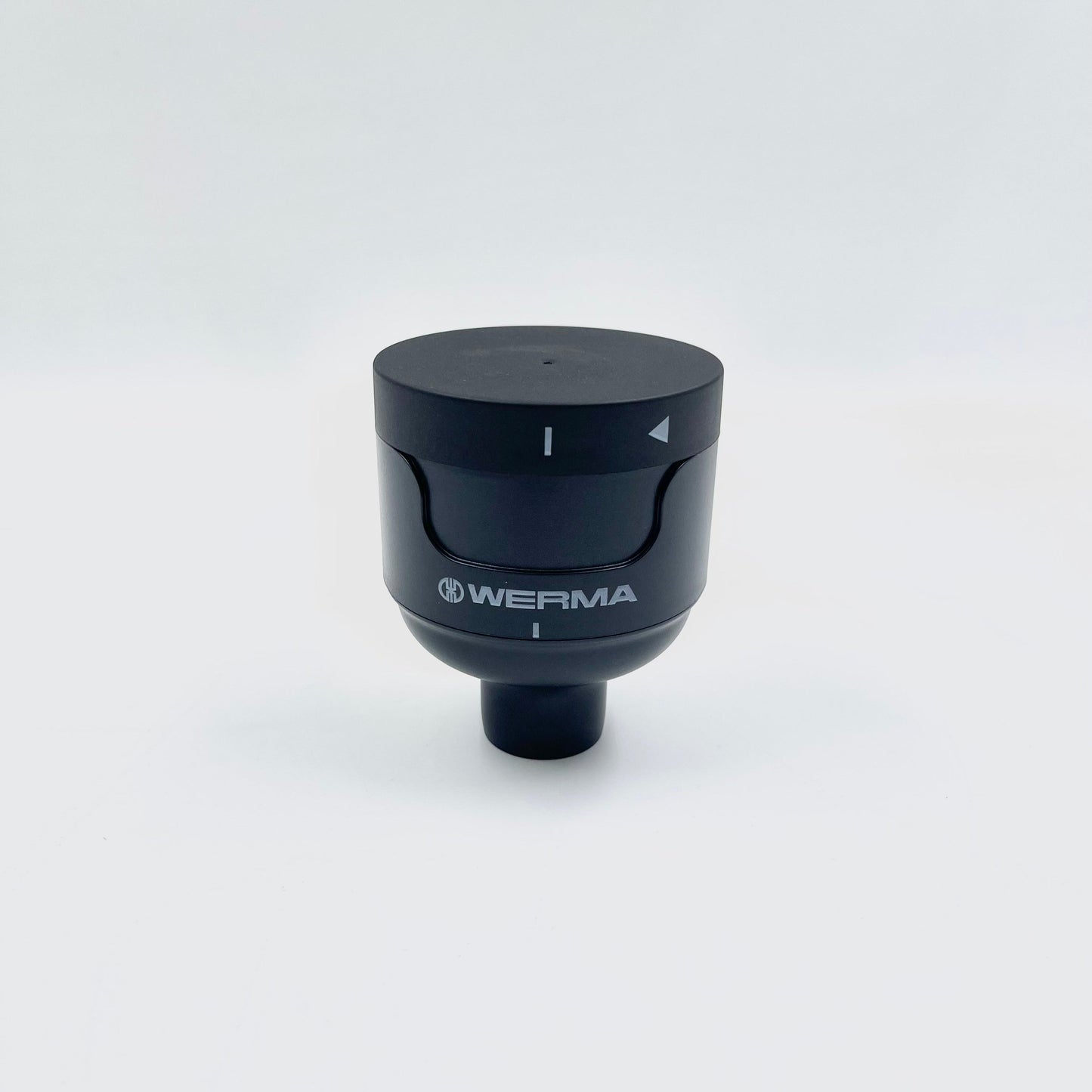

STWLTERMINAL71 - Werma Warning Beacon
STWLTERMINAL71 - Werma Warning Beacon
Regular price
$34.53 NZD
Regular price
Sale price
$34.53 NZD
Unit price
/
per
Warning Beacon

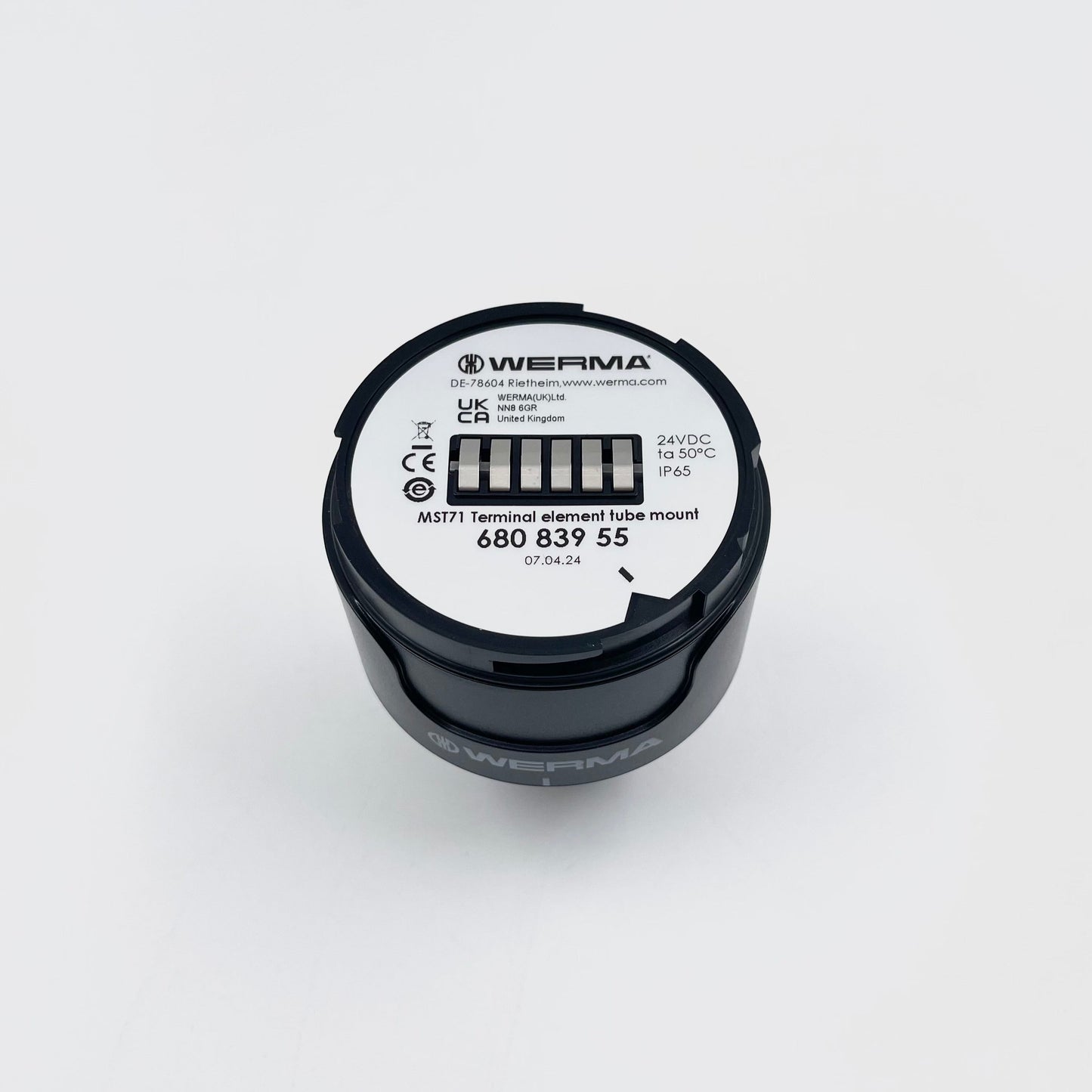

MST 71 Terminal element.
Compatible Part Numbers:
68083955
680.839.55
B68083955
Technical Data Sheet Excerpt: STWLTERMINAL71
Height | 86 mm |
Diameter | 70 mm |
Materials | PA-GF |
Housing colour | Black |
Protection category | IP65 |

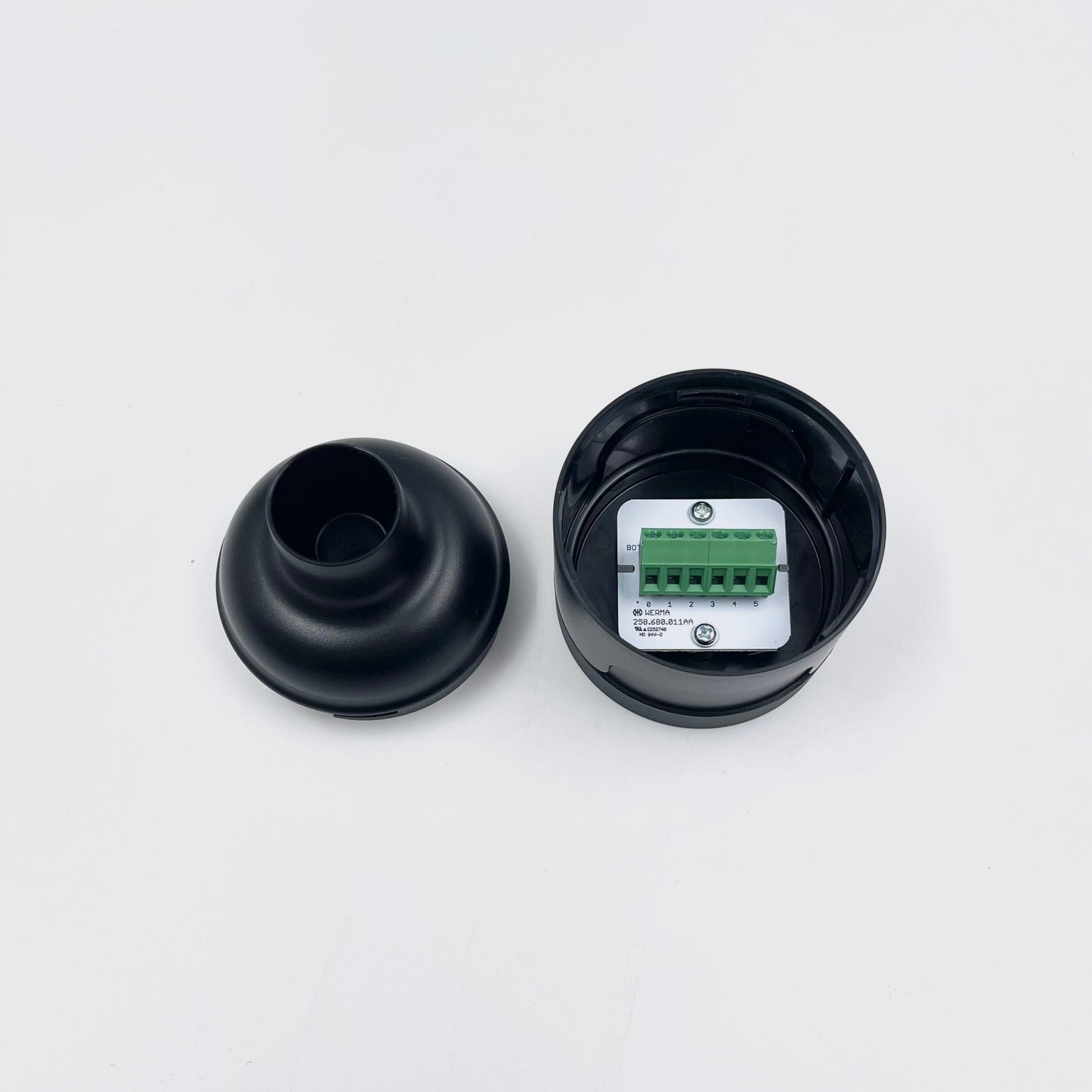

Connection | Screw terminals |
cross-sectional area maximum | 2,50mm² / 14AWG |
Cable entry | Through hole |
Cable entry maximum | d = 11 mm |
Type of fixing | Tube mounting |
Working temperature minimum | -30°C |
Working temperature maximum | +50°C |
Weight with packaging | 1 g |
Product weight | 1 g |
Operating voltage | 24V |
Operating voltage type | DC |
Operating voltage tolerance | +/-10% |
Rated operational voltage | 24 VDC |
Protection class | Protection class 3 |
Pollution degree | 3 |
Request to external PSU | SELV/PELV |
Technical Data Sheet:
Operating Instructions:
6 in stock
