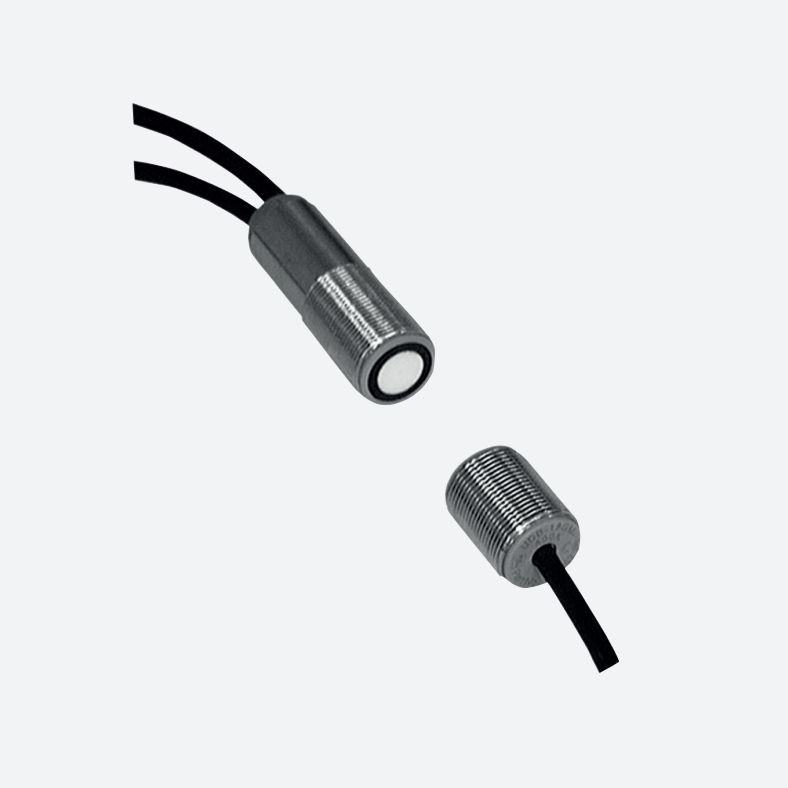

ULB-18GM50-255-2E1 / PF 193010 - Label Sensor
ULB-18GM50-255-2E1 / PF 193010 - Label Sensor
Regular price
$1,913.99 NZD
Regular price
Sale price
$1,913.99 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Label Sensor, ULB-18GM50-255-2E1 / PF 193010
- Ultrasonic system for detection of labels and carrier materials.
- Short version
- Insensitive to printing, colors, and shining surfaces
- Automatic compensation of the operating point with slowly changing ambient condition
- Very high processing speeds are possible.
Details: ULB-18GM50-255-2E1 / PF 193010
Sensing range 20 ... 60 mm , optimal distance: 45 mm
Compatible Part Numbers:
193010
ULB-18GM50-255-2E1
Technical Datasheet:
Datasheet excerpt: Technical data of ULB-18GM50-255-2E1 / PF 193010
| General specifications | ||
|---|---|---|
| Sensing range | 20 ... 60 mm , optimal distance: 45 mm | |
| Transducer frequency | 255 kHz | |
| Indicators/operating means | ||
| LED green | Display: readiness | |
| LED yellow | indication: label detected | |
| LED red | Display: error | |
| Electrical specifications | ||
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS | |
| No-load supply current | < 60 mA | |
| Time delay before availability | < 500 ms | |
| Input | ||
| Input type | Teach-In input 0-level: -UB ... -UB + 1V 1-level: +UB - 1 V ... +UB |
|
| Pulse length | ≥ 500 ms | |
| Impedance | ≥ 10 kΩ | |
| Output | ||
| Output type | 2 switch outputs NPN, NC | |
| Rated operating current | 2 x 100 mA , short-circuit/overload protected | |
| Voltage drop | ≤ 3 V | |
| Switch-on delay | ≤ 600 µs | |
| Switch-off delay | ≤ 600 µs | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
|
| Approvals and certificates | ||
| UL approval | C-UL listed: 57M3, IND CONT. EQ., "Powered by Class 2 Power Source" | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | 0 ... 60 °C (32 ... 140 °F) | |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross section | 0.14 mm2 | |
| Degree of protection | IP67 | |
| Material | ||
| Housing | nickel plated brass; plastic components: PBT | |
| Transducer | epoxy resin/hollow glass sphere mixture; polyurethane foam | |
| Mass | 150 g | |
| Dimensions | ||
| Length | 53 mm | |
| Diameter | 18 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272801 |
| ECLASS 12.0 | 27272801 |
| ECLASS 11.0 | 27272801 |
| ECLASS 10.0.1 | 27272801 |
| ECLASS 9.0 | 27272801 |
| ECLASS 8.0 | 27272801 |
| ECLASS 5.1 | 27272801 |
| ETIM 9.0 | EC001847 |
| ETIM 8.0 | EC001847 |
| ETIM 7.0 | EC001847 |
| ETIM 6.0 | EC001847 |
| ETIM 5.0 | EC001847 |
| UNSPSC 12.1 | 41111960 |
Out of stock
