Flying lead
V15-W-BK15M-PUR-U/0,75 single ended cordset
V15-W-BK15M-PUR-U/0,75 single ended cordset
Regular price
$227.78 NZD
Regular price
Sale price
$227.78 NZD
Unit price
/
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability
Special order item:
Lead time 8 weeks:
- Suitable for drag chains and abrasion resistant
- Degree of protection IP68 / IP69
- Resistant to microbes and hydrolysis
- UV resistant
- UL listed for USA and Canada
- Halogen-free
- Specific design protects against loosening and inaccurate installation

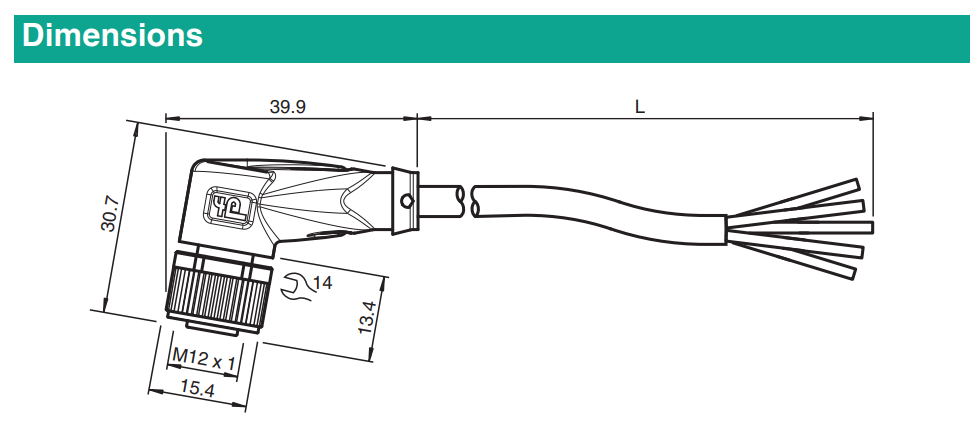

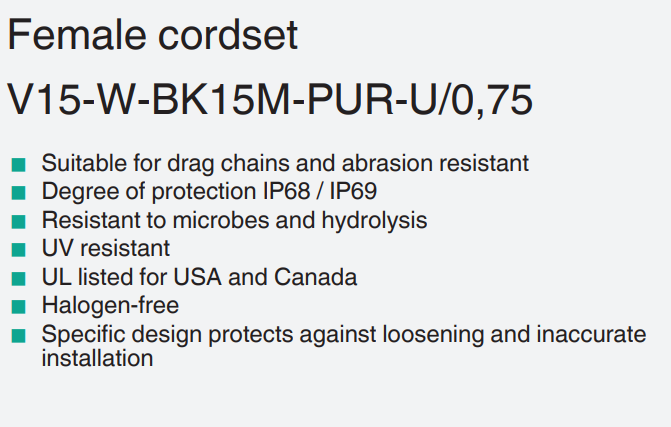

Datasheet excerpt: Technical data of V15-W-BK15M-PUR-U/0,75
| Product Description |
|---|

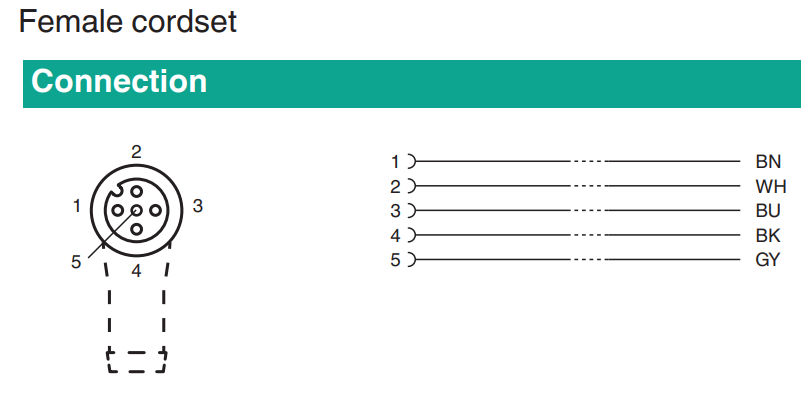

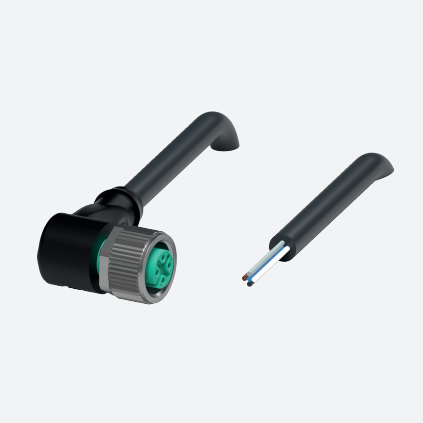

| Female cordset single-ended M12 angled A-coded, 5-pin, PUR cable black, UL approved, drag chain suitable |
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | socket | |
| Construction type | M12 | |
| Style | angled | |
| Locking | screw connection | |
| Number of pins | 5 | |
| Coding | A-coded | |
| Connector 2 | ||
| Connection | cable end | |
| Electrical specifications | ||
| Operating voltage | max. 48 V AC / 60 V DC | |
| Operating current | max. 4 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
| Halogen-free | IEC 60754-1 | |
| Approvals and certificates | ||
| UL approval | AWM STYLE 20549 AWM I/II A/B 80°C 300V FT2 (cable) | |
| UL File Number | E231213 | |
| Ambient conditions | ||
| Ambient temperature | ||
| Plug connector | -40 ... 90 °C (-40 ... 194 °F) | |
| Cable, fixed installation | -40 ... 80 °C (-40 ... 176 °F) | |
| Cable, flexing | -20 ... 80 °C (-4 ... 176 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.6 Nm | |
| Loosening protection | available | |
| Tool installation | straight knurling and hexagon nut SW = 14 mm | |
| Mating cycles | min. 100 | |
| Degree of protection | IP68 / IP69 | |
| Cable | according to IEC/EN 60228 (DIN VDE 0295) class 6 | |
| Sheath diameter | 6 mm | |
| Bending radius | > 10 x cable diameter, movable installation > 5 x cable diameter, fixed installation |
|
| Sheath stripping force | max. 50 N / 300 mm | |
| Sheath color | black (similar to RAL 9005) | |
| Number of cores | 5 | |
| Core cross section | 0.75 mm2 | |
| Cores color | Core 1: brown Core 2: white Core 3: blue Core 4: black Core 5: grey |
|
| Core construction | 42 x 0.15 mm ∅ | |
| Length | 15 m | |
| Cable code | Li F 9Y 11Y 5 x 0,75 | |
| Drag chain suitability | ||
| Drag chain cycles | min. 2000000 | |
| Motion velocity | max. 3.3 m/s | |
| Traverse distance | max. 5 m | |
| Acceleration | max. 5 m/s2 | |
| Torsional stress | ± 180 °/m | |
| Mass | 897 g | |
| Material | ||
| Halogen-free | yes | |
| Plug connector | ||
| Screw connection | Zinc diecast, nickel-plated | |
| Body | TPU, black | |
| Seal | FKM | |
| Contact surface | gold plated (Au) | |
| Flammability | V-2 | |
| Cable | ||
| Sheathing | PUR based on polyether | |
| Core insulation | PP | |
| UV resistance | yes | |
| Oil resistance | yes | |
| Microbial resistance | yes | |
| Hydrolysis resistance | yes | |
| Flammability | FT2 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27060311 |
| ECLASS 12.0 | 27060311 |
| ECLASS 11.0 | 27060311 |
| ECLASS 10.0.1 | 27060311 |
| ECLASS 9.0 | 27060311 |
| ECLASS 8.0 | 27279218 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC001855 |
| ETIM 8.0 | EC001855 |
| ETIM 7.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
