STM12F5PUR R30 - Single Ended Cordset - F M12 angled A-coded, 5-pin, PUR cable
STM12F5PUR R30 - Single Ended Cordset - F M12 angled A-coded, 5-pin, PUR cable
Regular price
$371.62 NZD
Regular price
Sale price
$371.62 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

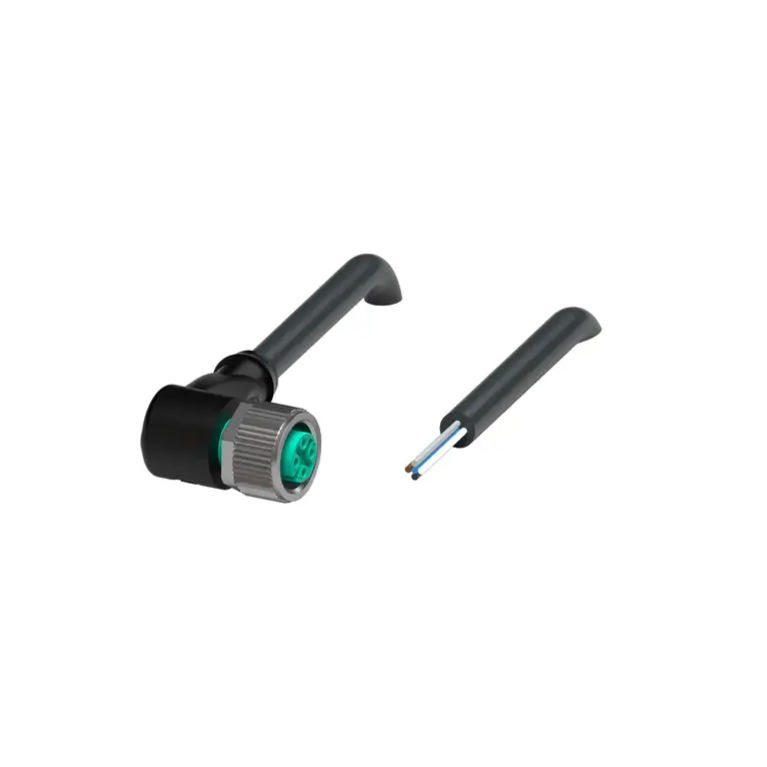

Female Cordset, STM12F5PUR R30
- Ski tow, rope tow, chair lift, poma's, Tee bar, tower derailer sensor connector & automation , great for outdoor sun exposure due to the UV resistant Specifications. ( We aren't sure of it's resistance to Kea's yet!)
- Suitable for drag chains and abrasion resistant
- Degree of protection IP68 / IP69
- Resistant to microbes and hydrolysis
- UV resistant
- UL listed for USA and Canada
- Halogen-free
- Specific design protects against loosening and inaccurate installation
Details: STM12F5PUR R30
When you purchase this item, you'll receive a high-quality cable from one of our listed brands, PepperLFuchs.

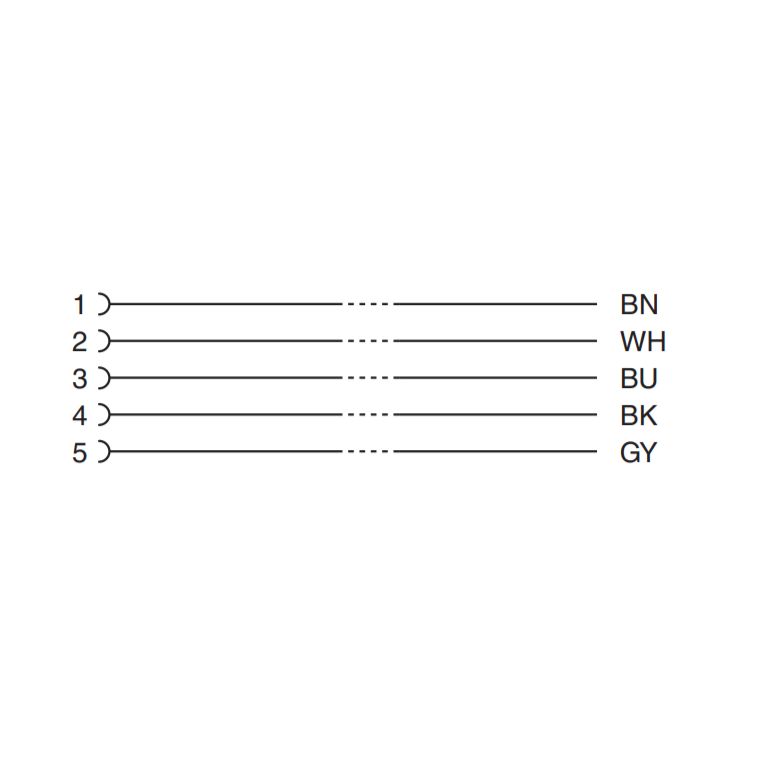

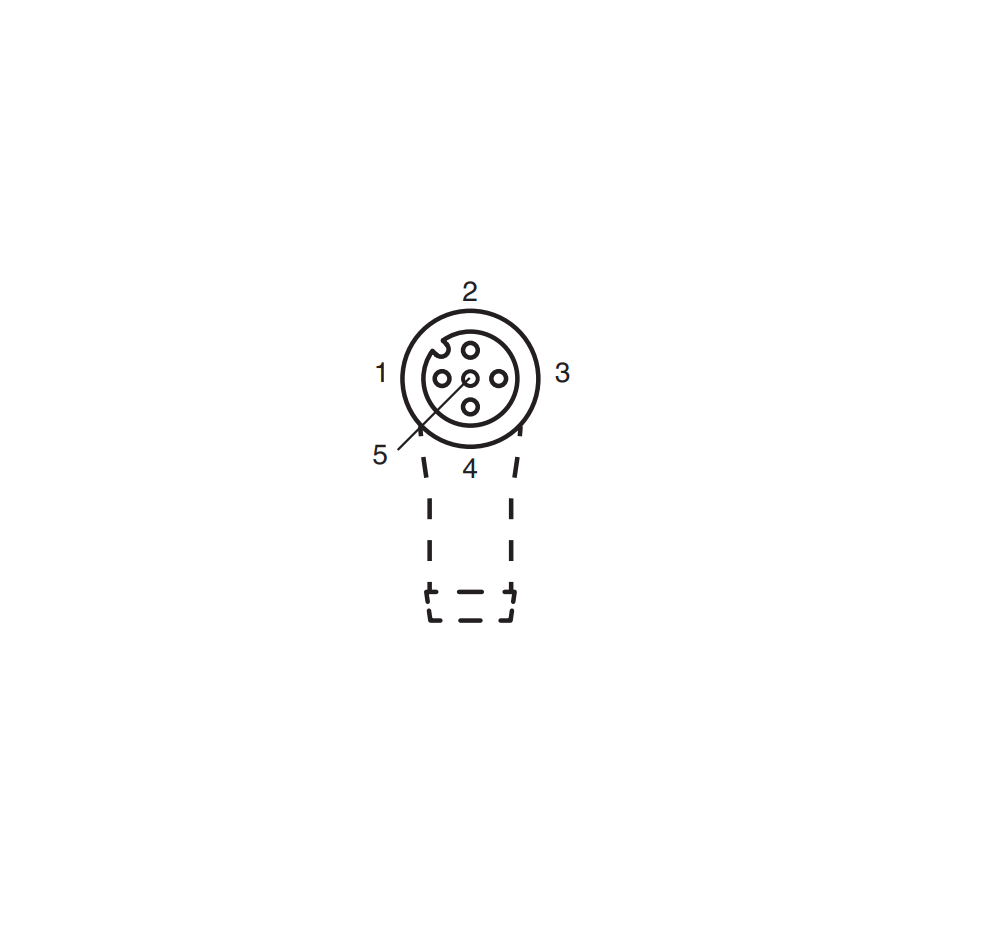

Female cordset single-ended M12 angled A-coded, 5-pin, PUR cable black, UL approved, drag chain suitable
Compatible Part Numbers:
STM12F5PUR R30
239999-0025
V15-W-BK30M-PUR-U/0,75
Technical Datasheet:
Datasheet excerpt: Technical data of V15-W-BK30M-PUR-U/0,75 / PF 239999-0025
|
General Specifications
|
|
| Specification | Details |
| Part Number |
V15-W-BK30M-PUR-U/0,75
|
| Description |
Cordset, M12, unshielded, open-ended, 30m, PUR cable, 3 x 0.75 mm²
|
| Connector Type |
None (Open-ended cable)
|
| Number of Wires | 3 |
| Wire Cross Section | 0.75 mm² |
| Cable Jacket Color | Black |
| Cable Length | 30m |
| Application |
Industrial automation, sensors, actuators
|
|
Electrical Specifications
|
|
| Specification | Details |
| Rated Voltage | 300V |
| Rated Current | Up to 8A |
| Insulation Resistance |
Typically >100 MΩ
|
| Shielding | Unshielded |
| Conformity | |
| Specification | Details |
| Standards Compliance |
IEC 61076-2-101
|
| Protection Class |
N/A (Open-ended cable)
|
|
Approvals & Certifications
|
|
| Certification | Details |
| CE Marking | Yes |
| UL Certification | Yes |
| RoHS Compliance | Yes |
|
Ambient Conditions
|
|
| Specification | Details |
| Operating Temperature |
-40°C to +80°C
|
| UV Resistance |
Yes (suitable for outdoor use)
|
| Oil Resistance | Yes |
| Flame Retardant |
Yes, per UL standards
|
|
Mechanical Specifications
|
|
| Specification | Details |
| Cable Flexibility | High |
| Bending Radius (Fixed Installation) |
≥ 5x cable diameter
|
| Bending Radius (Flexible Installation) |
≥ 10x cable diameter
|
|
Material Specifications
|
|
| Specification | Details |
| Cable Jacket Material |
PUR (Polyurethane)
|
| Core Insulation Material | PVC |
| Wire Material |
Copper, stranded
|
1 in stock
