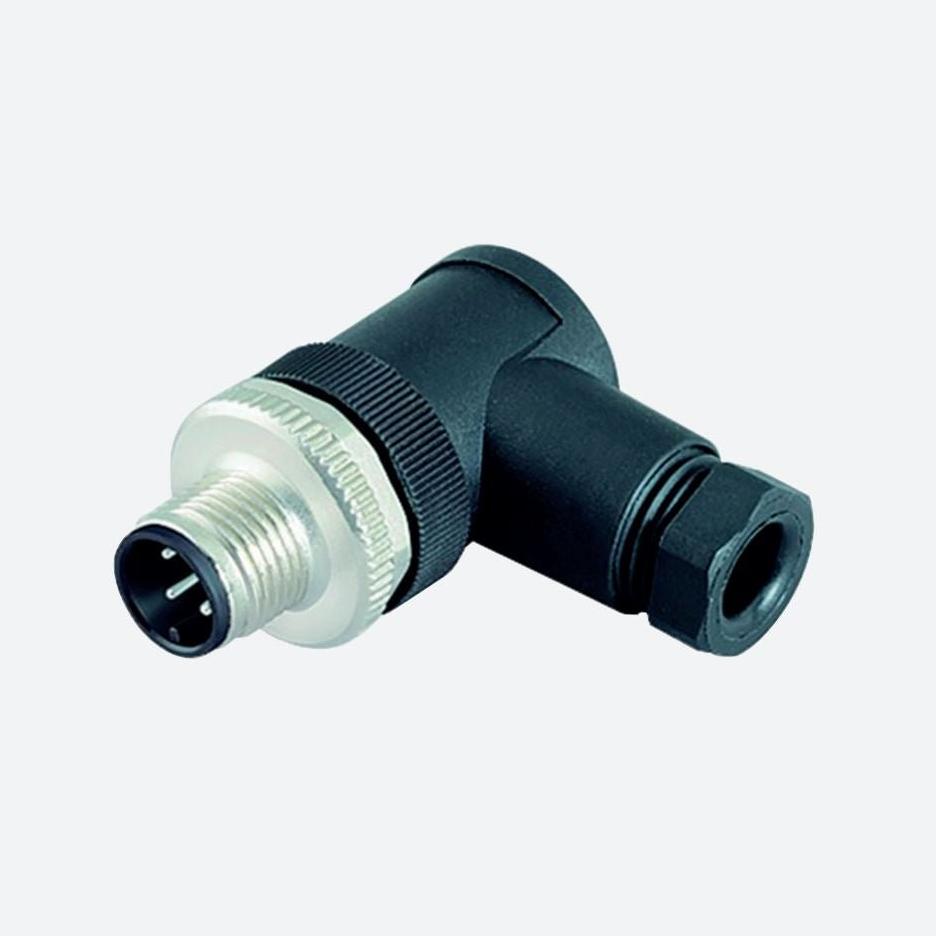

V15S-W / PF 231340 - Male Connector, Field-Attachable
V15S-W / PF 231340 - Male Connector, Field-Attachable
Regular price
$42.29 NZD
Regular price
Sale price
$42.29 NZD
Unit price
/
per
Male Connector, Field-Attachable, V15S-W / PF 231340
- Screw terminal connection
- Metal locking
- Knurled nut suitable for tool assembly
- cURus approval
Details: V15S-W / PF 231340
Male connector M12 angled A-coded 5-pin, for cable diameter 4 - 6 mm, field-attachable
Compatible Part Numbers:
231340
V15S-W
Technical Datasheet:
Datasheet excerpt: Technical data of V15S-W / PF 231340
General specifications | ||
---|---|---|
Connector 1 | ||
Connection | plug | |
Construction type | M12 | |
Style | angled | |
Locking | screw connection | |
Number of pins | 4 | |
Coding | A-coded | |
Customization | Coding rotateable in steps of 90° | |
UL File Number | E363587 | |
Electrical specifications | ||
Operating voltage | max. 48 V AC / 60 V DC | |
Operating current | max. 4 A | |
Insulation resistance | min. 100 MΩ | |
Conformity | ||
Degree of protection | EN 60529 | |
Plug connection | connector M12 x 1 : IEC 61076-2-101 | |
Ambient conditions | ||
Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) | |
Pollution degree | 3 | |
Mechanical specifications | ||
Plug connector | ||
Tightening torque | 0.6 Nm | |
Tool installation | straight knurling , hexagon nut SW = 18 mm | |
Mating cycles | min. 50 | |
Degree of protection | IP67 | |
Connection | screw terminals for max. 0.75 mm2 / AWG 18 | |
Cable | ||
Sheath diameter | 4 ... 6 mm | |
Mass | 21.58 g | |
Material | ||
Plug connector | ||
Screw connection | CuZn, nickel-plated | |
Body | PA, black | |
Contact surface | CuSnZn |
Classifications
System | Classcode |
---|---|
ECLASS 13.0 | 27440116 |
ECLASS 12.0 | 27440116 |
ECLASS 11.0 | 27440102 |
ECLASS 10.0.1 | 27440102 |
ECLASS 9.0 | 27440102 |
ECLASS 8.0 | 27440104 |
ECLASS 5.1 | 27279201 |
ETIM 9.0 | EC002635 |
ETIM 8.0 | EC002635 |
ETIM 7.0 | EC002635 |
ETIM 6.0 | EC002635 |
ETIM 5.0 | EC002585 |
UNSPSC 12.1 | 31251501 |
Out of stock
