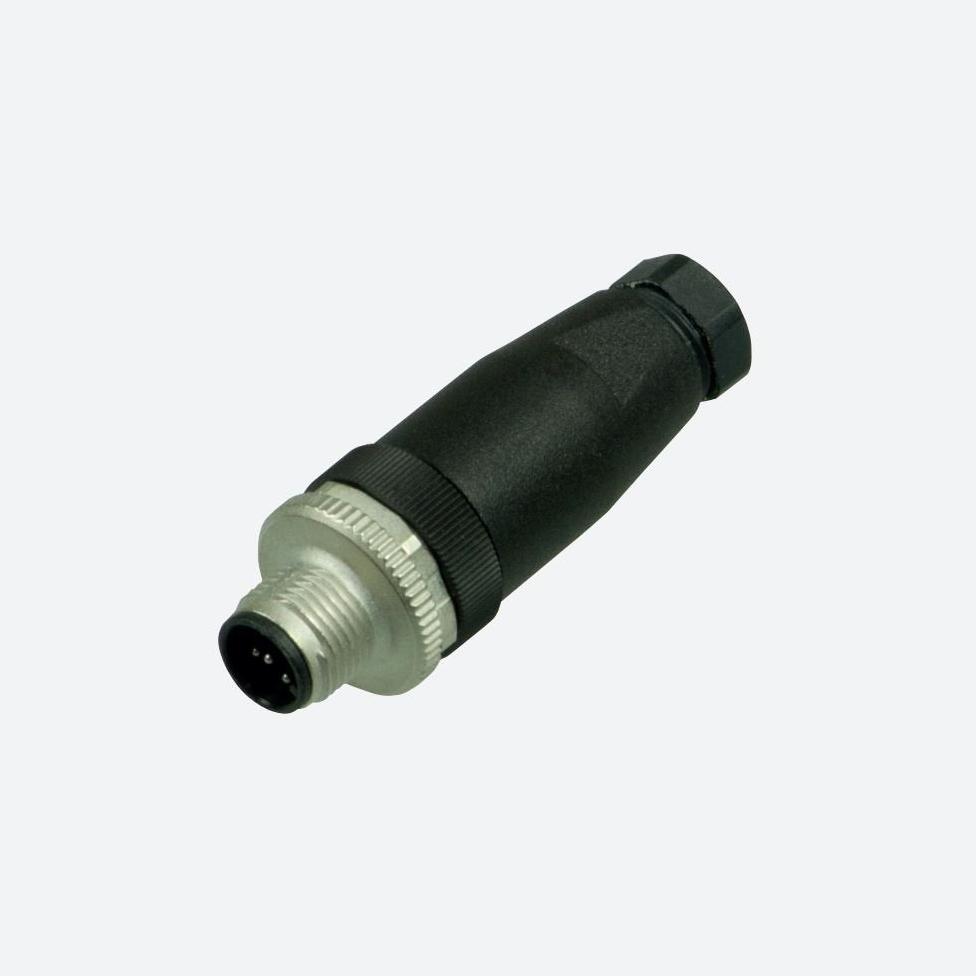

V1S-G-PG9 / PF 129387 - Male Connector, Field-Attachable

Name: V1S-G-PG9 / PF 129387 - Male Connector, Field-Attachable
Brand: Pepperl Fuchs
Price: 36.76 NZD
Availability: OutOfStock

$36.76 NZD

Sale Sold out

Shipping calculated at checkout.

Price (exc. GST) each

Product variants

Quantity

Male Connector, Field-Attachable, V1S-G-PG9 / PF 129387

Details: V1S-G-PG9 / PF 129387

Male connector M12 straight A-coded 4-pin, for cable diameter 6 - 8 mm, field-attachable

Compatible Part Numbers:

129387

V1S-G-PG9

Technical Datasheet:

Datasheet excerpt: Technical data of V1S-G-PG9/ PF 129387

General specifications
Connector 1
	Connection	plug
	Construction type	M12
	Style	straight
	Locking	screw connection
	Number of pins	4
	Coding	A-coded
UL File Number		E363587
Electrical specifications
Operating voltage		max. 250 V AC/DC
Operating current		max. 4 A
Insulation resistance		min. 100 MΩ
Conformity
Degree of protection		EN 60529
Plug connection		connector M12 x 1 : IEC 61076-2-101
Ambient conditions
Ambient temperature		-40 ... 85 °C (-40 ... 185 °F)
Pollution degree		3
Mechanical specifications
Plug connector
	Tightening torque	0.6 Nm
	Tool installation	straight knurling , hexagon nut SW = 18 mm
	Mating cycles	min. 50
Degree of protection		IP67
Connection		screw terminals for max. 0.75 mm² / AWG 18
Cable
	Sheath diameter	6 ... 8 mm
Mass		21.77 g
Material
Plug connector
	Screw connection	CuZn, nickel-plated
	Body	PA, black
	Contact surface	CuSnZn

Classifications
