V31S-GM / PF 206677 - Search (ST M8M3) for more options - Male Connector, Field-Attachable
V31S-GM / PF 206677 - Search (ST M8M3) for more options - Male Connector, Field-Attachable
Regular price
$39.53 NZD
Regular price
Sale price
$39.53 NZD
Unit price
per
Shipping calculated at checkout.
Price (exc. GST) each
Couldn't load pickup availability

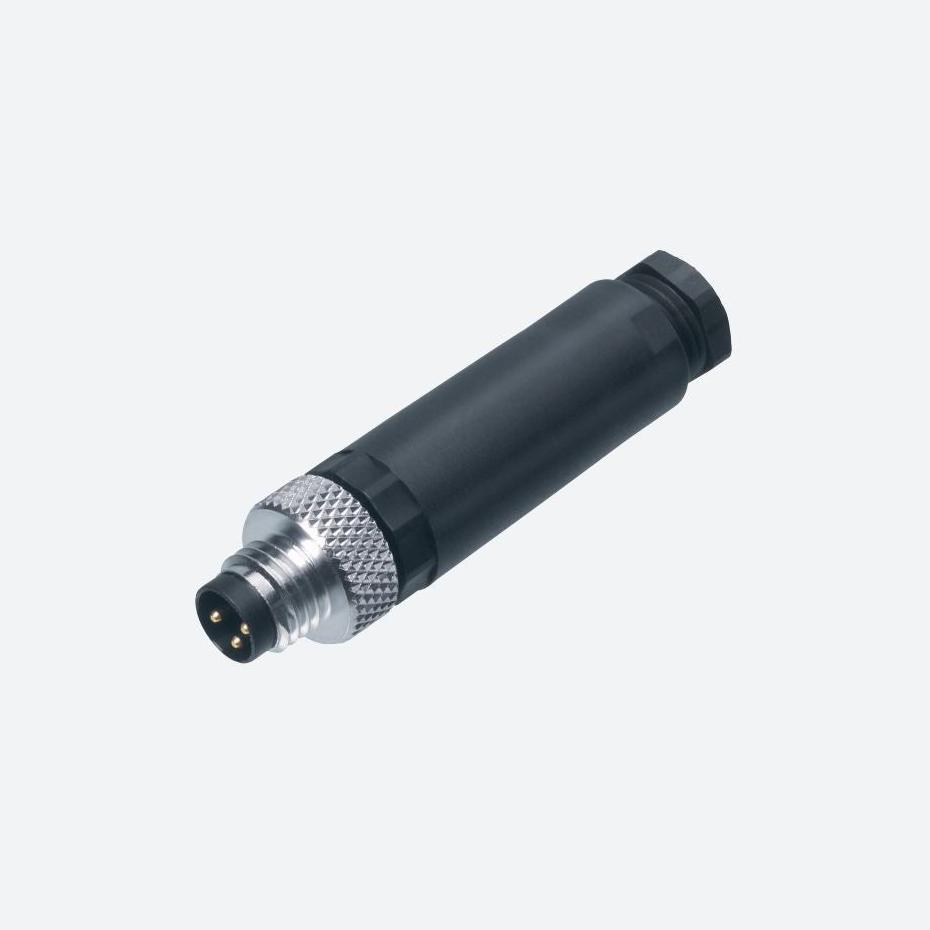

Male Connector, Field-Attachable, V31S-GM / PF 206677
- Screw terminal connection
- Metal locking
- UL Recognized Component
Details: V31S-GM / PF 206677
Male connector M8 straight A-coded 4-pin, for cable diameter 3,5 - 5 mm, field-attachable
Compatible Part Numbers:
ST M8M4 or we can still order the original Pepperl Fuchs part.
V31S-GM
206677
Technical Datasheet:
Datasheet excerpt: Technical data of V31S-GM / PF 206677
| General specifications | ||
|---|---|---|
| Connector 1 | ||
| Connection | plug | |
| Construction type | M8 | |
| Style | straight | |
| Locking | screw connection | |
| Number of pins | 4 | |
| Coding | A-coded | |
| Electrical specifications | ||
| Operating voltage | max. 30 V AC/DC | |
| Operating current | max. 4 A | |
| Conformity | ||
| Degree of protection | EN 60529 | |
| Plug connection | connector M8 x 1 : IEC 61076-2-104 | |
| Approvals and certificates | ||
| UL File Number | E363587 | |
| Ambient conditions | ||
| Ambient temperature | -40 ... 85 °C (-40 ... 185 °F) | |
| Pollution degree | 3 | |
| Mechanical specifications | ||
| Plug connector | ||
| Tightening torque | 0.5 Nm | |
| Tool installation | cross-hatched knurling | |
| Mating cycles | min. 100 | |
| Degree of protection | IP67 | |
| Connection | screw terminals for 0.14 ... 0.5 mm2 / AWG 26 ... AWG 20 | |
| Cable | ||
| Sheath diameter | 3.5 ... 5 mm | |
| Core cross section | 0.5 mm2 / 20 AWG max. | |
| Installation | screw terminals 0.4 Nm pressure nut 0.2 ... 0.3 Nm |
|
| Mass | 11 g | |
| Material | ||
| Plug connector | ||
| Screw connection | CuZn, nickel-plated | |
| Body | PBT, black | |
| Contact surface | gold plated (Au) | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27440116 |
| ECLASS 12.0 | 27440116 |
| ECLASS 11.0 | 27440102 |
| ECLASS 10.0.1 | 27440102 |
| ECLASS 9.0 | 27440102 |
| ECLASS 8.0 | 27440104 |
| ECLASS 5.1 | 27279201 |
| ETIM 9.0 | EC002635 |
| ETIM 8.0 | EC002635 |
| ETIM 7.0 | EC002635 |
| ETIM 6.0 | EC002635 |
| ETIM 5.0 | EC002585 |
| UNSPSC 12.1 | 31251501 |
Out of stock
